Technical Specifications
| Parameter | Details |
|---|---|

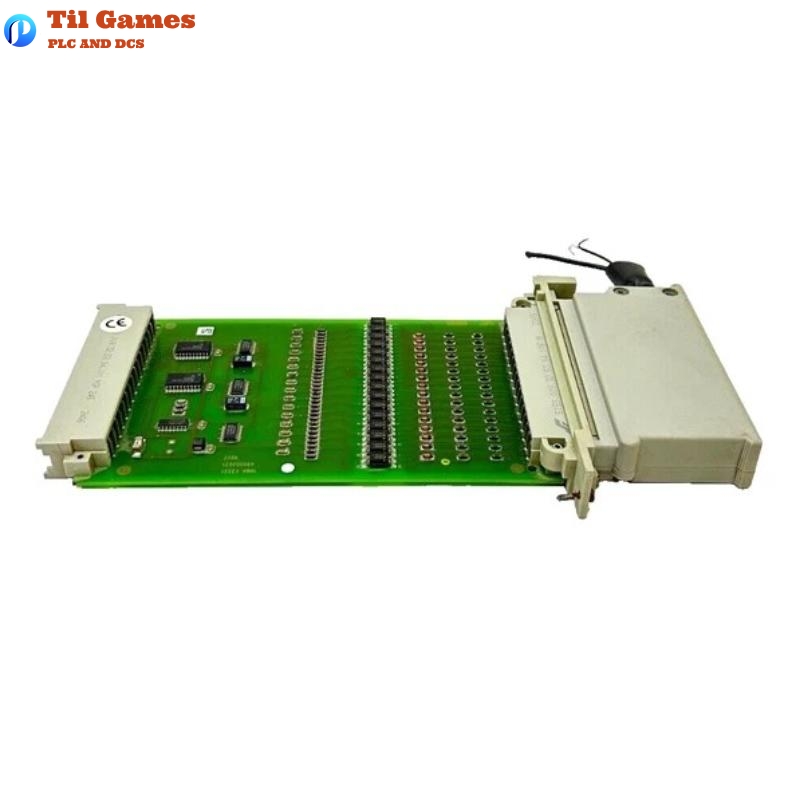

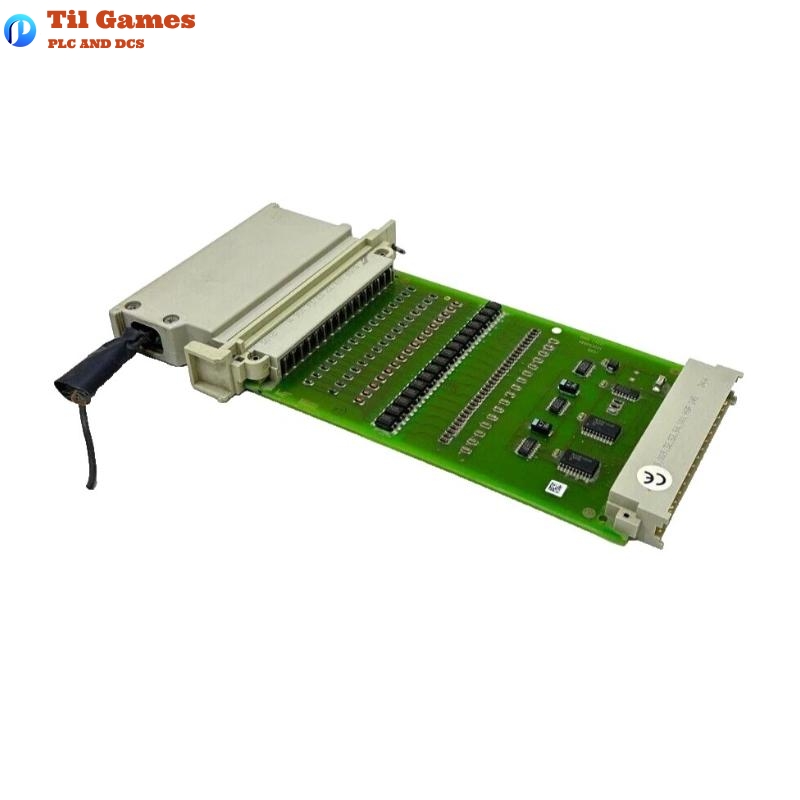

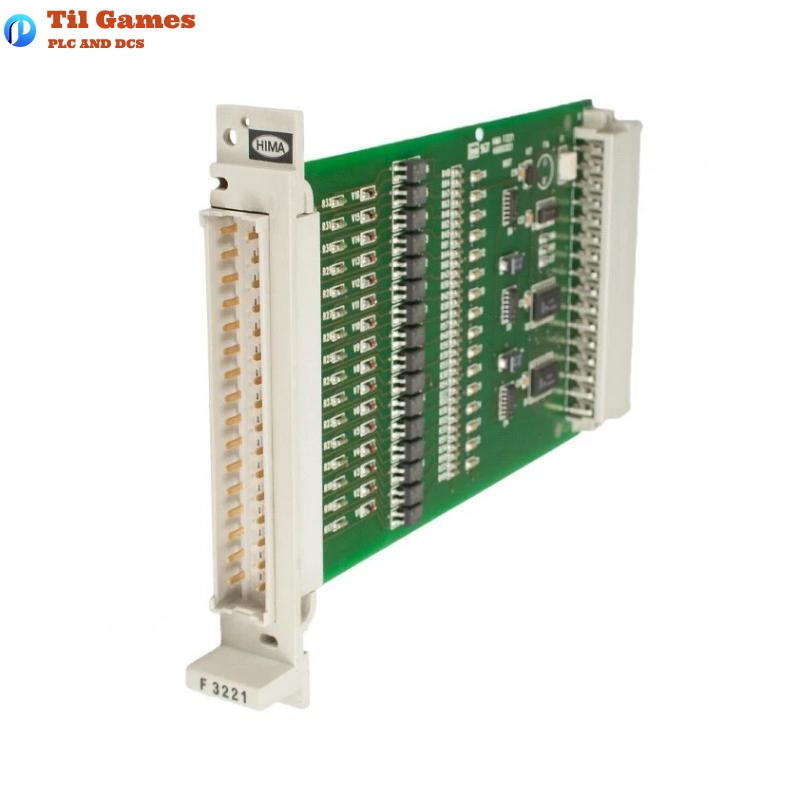

| Product Name | HIMA F3221 |
| Module Type | 16-fold Input Module |
| Input Type | 1-signal or mechanical contact |
| Input Current | 8 mA per channel (including cable plug) |
| Input Voltage | 24 V DC (for mechanical contacts) |
| Signal Isolation | Yes (safety isolation) |
| Switching Time | Approx. 10 ms |
| Number of Inputs | 16 channels |
| Input Isolation | Non-interacting |
| Operating Voltage (Internal) | 5 V DC |
| Current Consumption (5 V DC) | 70 mA |
| Current Consumption (24 V DC) | 130 mA |
| Mounting Width | 4 TE (Standard rack mounting) |
| Cable Type | LiYY 16 x 0.25 mm² |
| Cable Length | 750 mm |
| Flat Pin Plug Dimensions | 2.8 x 0.8 mm² |
| Conductor Cross Section | 1 mm² |
| Connector | Z 7116 / 3221 / C.. |
| Dimensions (W x H x D) | 130 x 30 x 100 mm |
| Weight | 0.2 kg |
| Certification | SN-Test-Certificate 12 D 2/H 19-66 R/82 |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of inputs does the HIMA F3221 module support?
A1: The module supports 1-signal inputs (8 mA) or mechanical contact inputs operating at 24 V DC.
Q2: Does the module provide galvanic isolation for each channel?
A2: Yes, each input is safely isolated and non-interacting, which ensures signal integrity and safety.
Q3: What is the typical switching time for input signals?
A3: The typical switching time for the F3221 is approximately 10 milliseconds.
Q4: How much current does the module consume during operation?
A4: The module consumes 70 mA at 5 V DC and 130 mA at 24 V DC.
Q5: What are the physical dimensions of the F3221 module?
A5: The module measures 130 mm (width) x 30 mm (height) x 100 mm (depth).
Q6: What is the weight of the F3221 module?
A6: The module weighs approximately 0.2 kilograms.
Q7: Is the module suitable for safety-critical applications?
A7: Yes, it is designed for use in safety-related systems and is certified according to SN-Test-Certificate 12 D 2/H 19-66 R/82.
Q8: What kind of connector is used for wiring the module?
A8: It uses the Z 7116 / 3221 / C.. front connector with a flat pin plug of 2.8 x 0.8 mm².
