Technical Specifications
| Item | Specification Description |
|---|---|

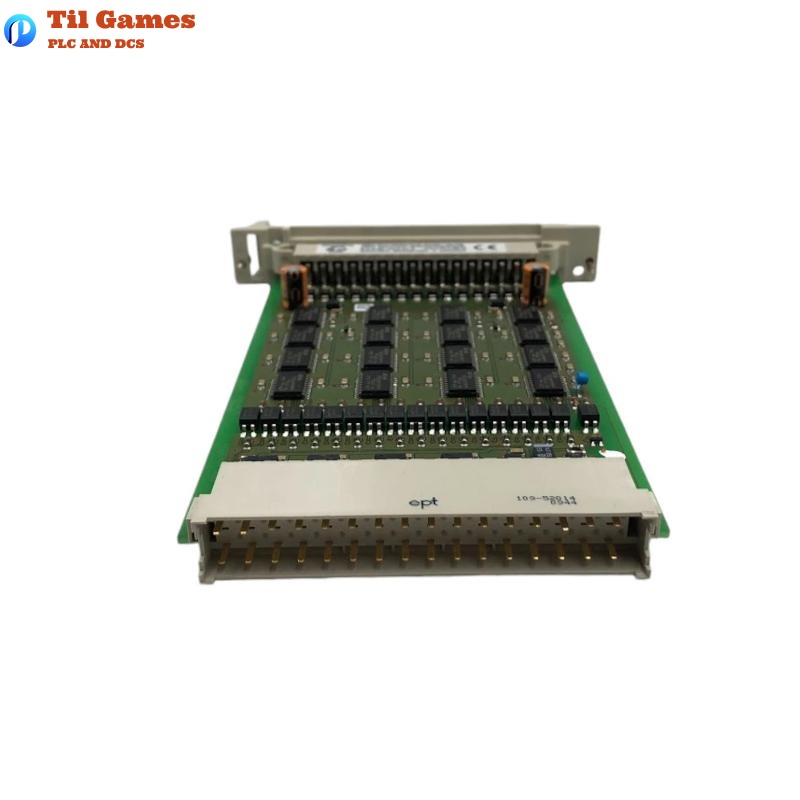

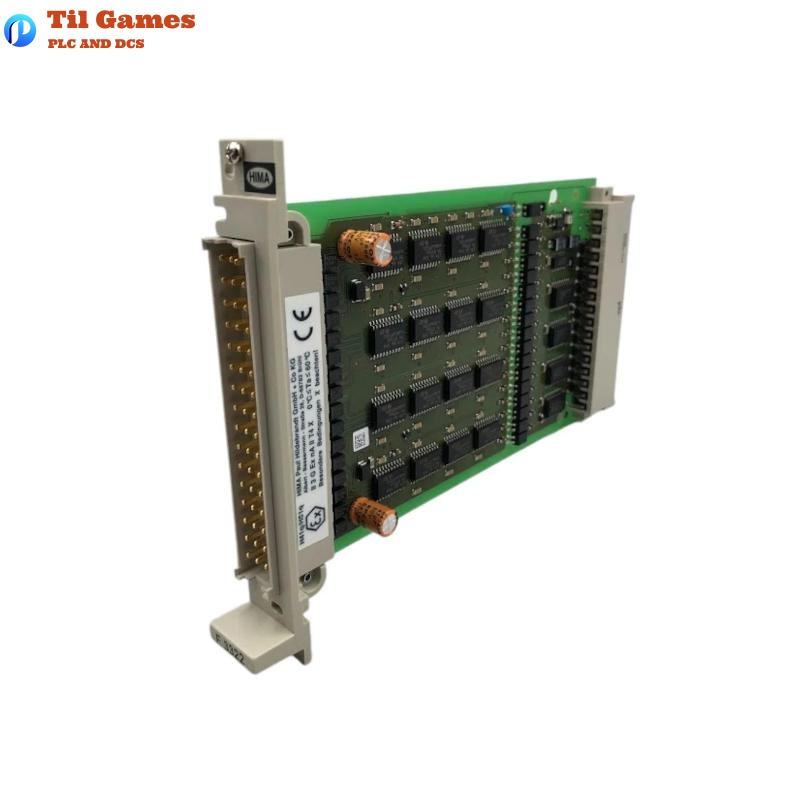

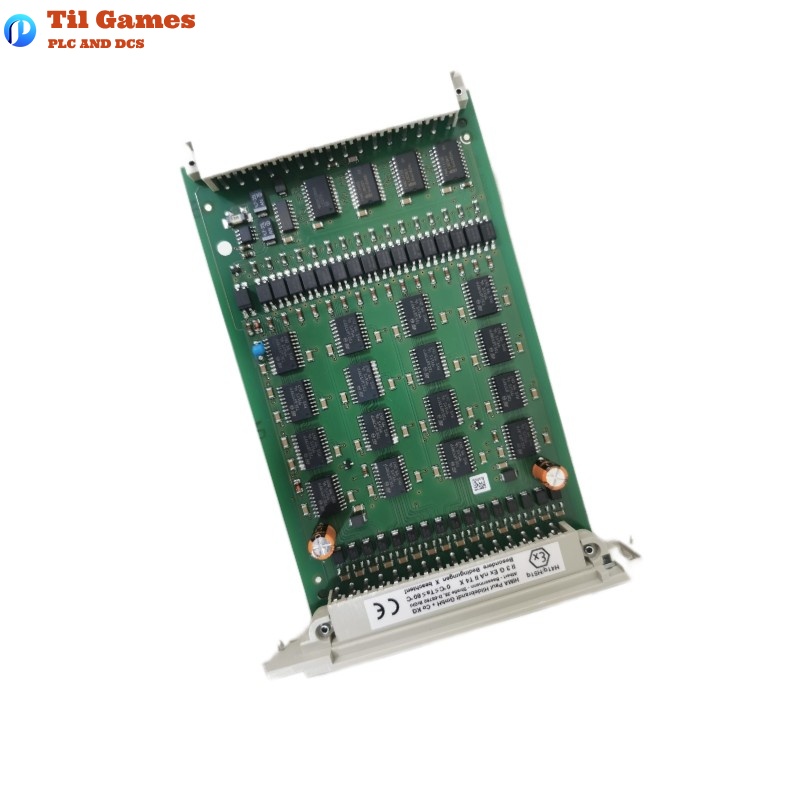

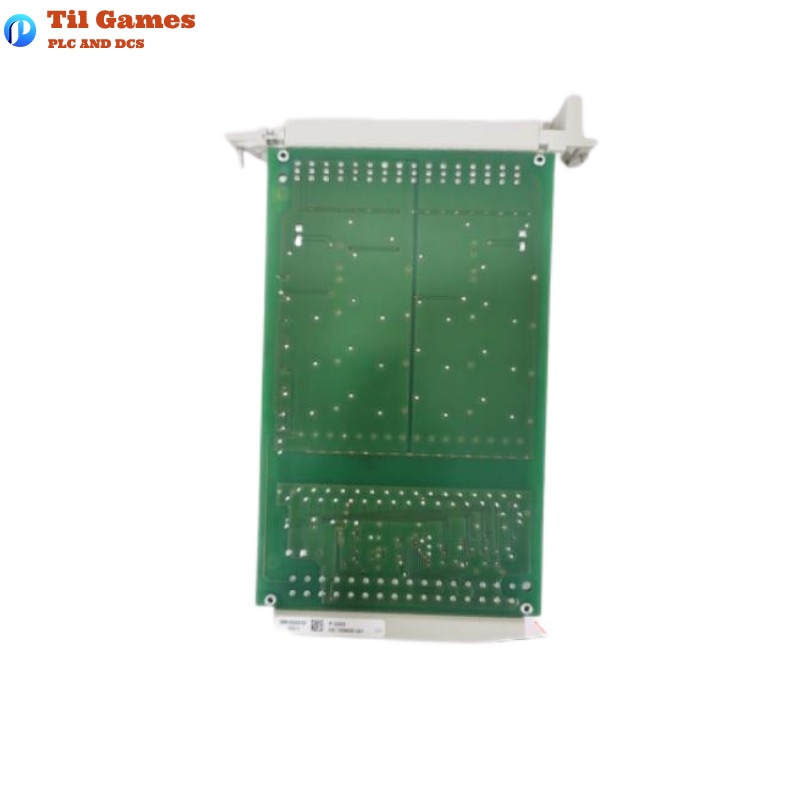

| Module Name | HIMA F3322 16-Fold Output Module |
| Number of Output Channels | 16 channels |
| Supported Load Type | Resistive or inductive (up to 500 mA / 12 W) |
| Lamp Load Capability | Up to 12 W |
| Channel Isolation | Safety isolated |
| Behavior on L- Break | No output signal |
| Output Short-Circuit Protection | Yes |
| Current Limiter Response | > 550 mA |
| Space Requirement | 4 TE |
| Operating Current (5 V DC) | 110 mA |
| Operating Current (24 V DC) | 150 mA plus load current |
| Recommended Fuse | 4 A slow-blow fuse (standard for IO rack) |
| Max Modules per IO Rack | Up to 10 modules |
| Max Simultaneous Load | Not more than 8 A (half of 16 × 0.5 A) |
| Dimensions | 120 x 160 x 40 mm |
| Weight | 0.2 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of loads does the HIMA F3322 support?
A1: It supports resistive and inductive loads, with each channel rated up to 500 mA or 12 W.
Q2: Does the module feature output short-circuit protection?
A2: Yes, the F3322 module includes output short-circuit protection.
Q3: How many F3322 modules can be installed in a single IO subrack?
A3: A maximum of 10 modules is recommended, with a total simultaneous load not exceeding 8 A.
Q4: Is there any output signal if the L- supply is interrupted?
A4: No, the module ensures no output signal under L- supply break conditions.
Q5: What is the rated operating voltage and current for the module?
A5: The module operates at 5 V DC (110 mA) and 24 V DC (150 mA plus load).
Q6: Are the channels electrically isolated from each other?
A6: Yes, the output channels are safety isolated.
Q7: What fuse type is recommended for this module?
A7: A 4 A slow-blow fuse is recommended as standard in the IO rack.
Q8: What are the physical dimensions and weight of the module?
A8: Dimensions are 120 x 160 x 40 mm, and the weight is 0.2 kg.
