Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | F3334 |

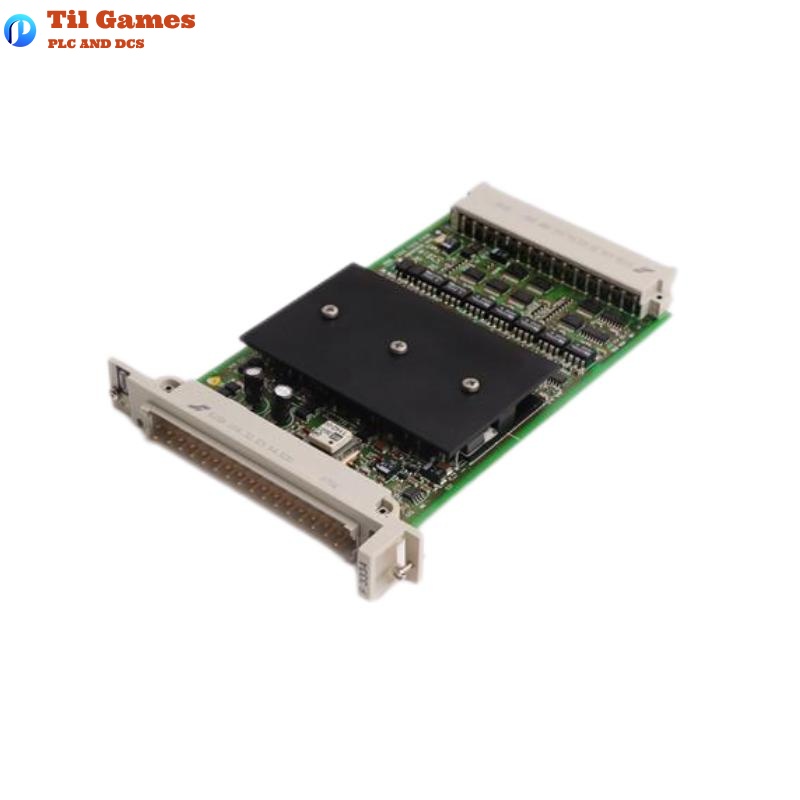

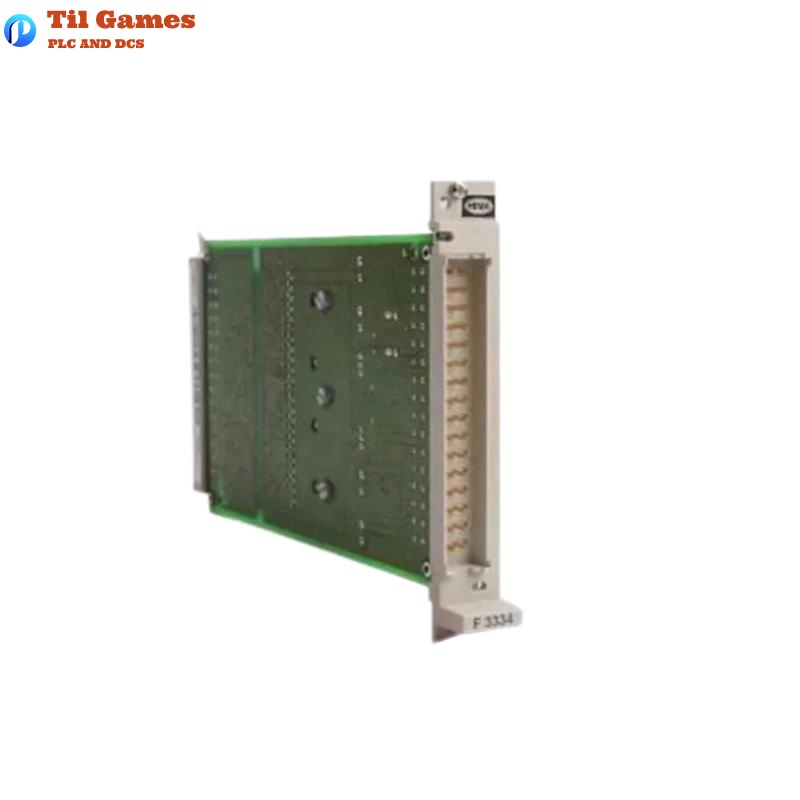

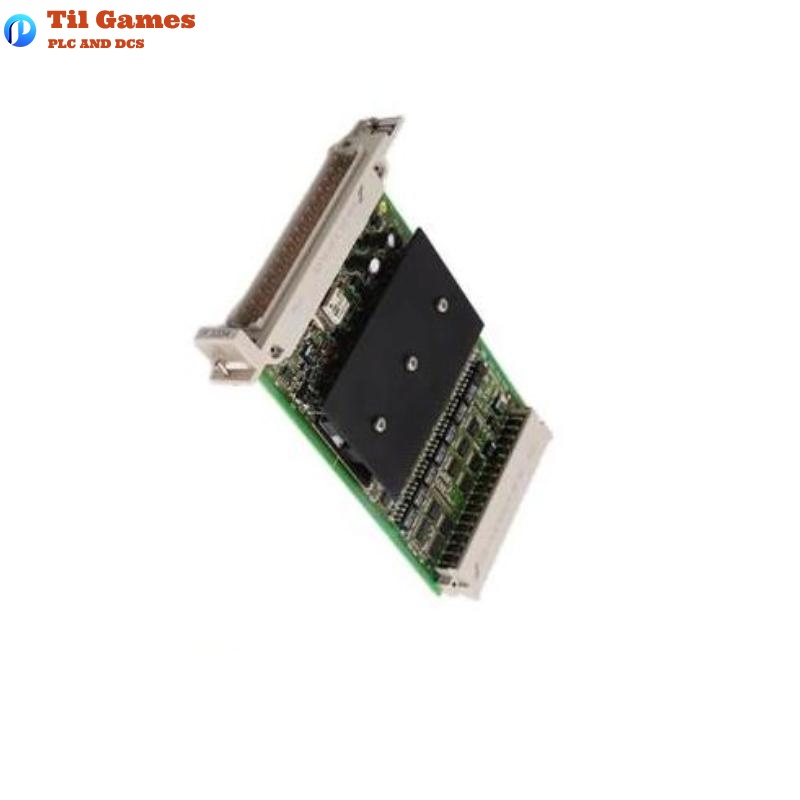

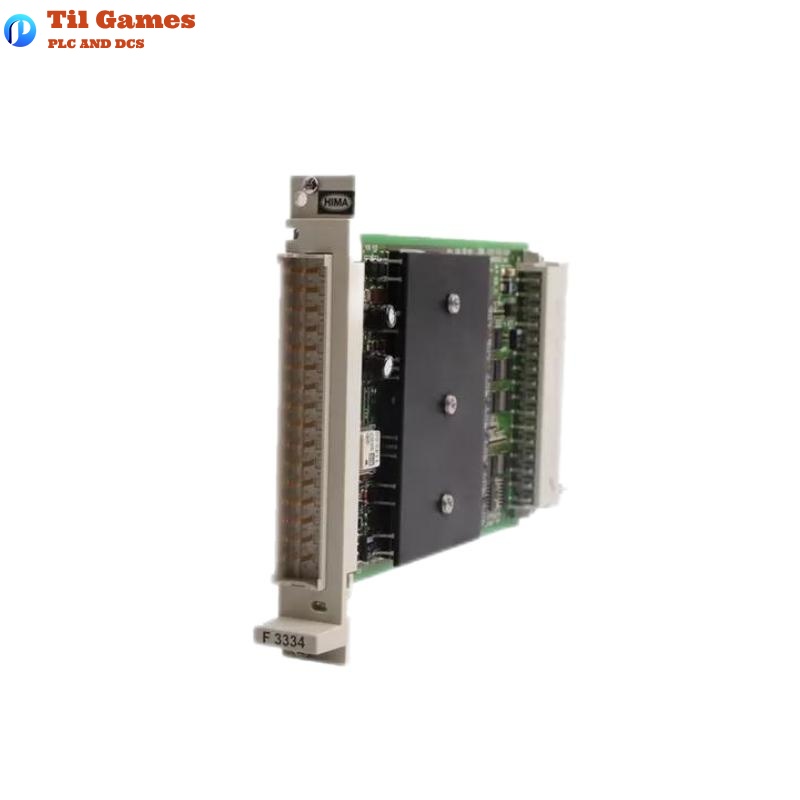

| Function | 4-Fold Output Module, safety-related |
| Load Type | Resistive or inductive load |
| Max Output Current per Channel | 2 A |
| Max Output Power | 48 W (resistive/inductive), 25 W (lamp) |
| Output Short-Circuit Protection | Yes |
| Output Voltage (reset state) | Max. 1.5 V |
| Output Leakage Current | Max. 550 µA |
| Undervoltage Trip Point | ≤ 16 V |
| Max Internal Voltage Drop | 2 V at 2 A |
| Max Line Resistance (in + out) | 3.6 Ω |
| Test Signal Duration | Max. 250 µs |
| Line Monitoring | Yes |
| Short-Circuit Current Range | 2.6 … 5 A |
| Line Break Detection Range | 0.5 … 9.5 mA |
| Min Load for Line Monitoring | 10 mA |
| Current Input Watchdog (WD) | Max. 30 mA |
| Operating Current (5 V DC) | 130 mA |
| Additional Load Current (24 V DC) | 130 mA |
| Module Width | 4 TE |
| Dimensions | 120 x 160 x 40 mm |
| Weight | 0.113 kg |
| Software Block | HB-BLD-. (check system version) |
| Max Modules per Rack | 10 (with nominal load) |
FAQ
FAQ
Q1: How many channels can be used at full 2 A load simultaneously?
A1: Only 2 channels can be operated simultaneously at 2 A. For loads up to 1 A, all 4 channels can operate simultaneously.
Q2: Does the module have short-circuit protection?
A2: Yes, each output is short-circuit proof.
Q3: Is line monitoring supported?
A3: Yes, the module supports line monitoring and requires a minimum load of 10 mA for detection.
Q4: What happens during a line break?
A4: In the event of a line break, no output signal is generated due to L- supply loss detection.
Q5: Can the module drive lamps directly?
A5: Yes, up to 25 W lamp loads are supported, but high inrush currents may require configuration via software block HB-BLD-.
Q6: What is the undervoltage threshold?
A6: The module trips on undervoltage at ≤ 16 V.
Q7: Can the outputs be paralleled?
A7: Yes, outputs can be paralleled without external diodes.
Q8: Is the module automatically tested during operation?
A8: Yes, the module performs automatic self-tests including output feedback and line monitoring.
