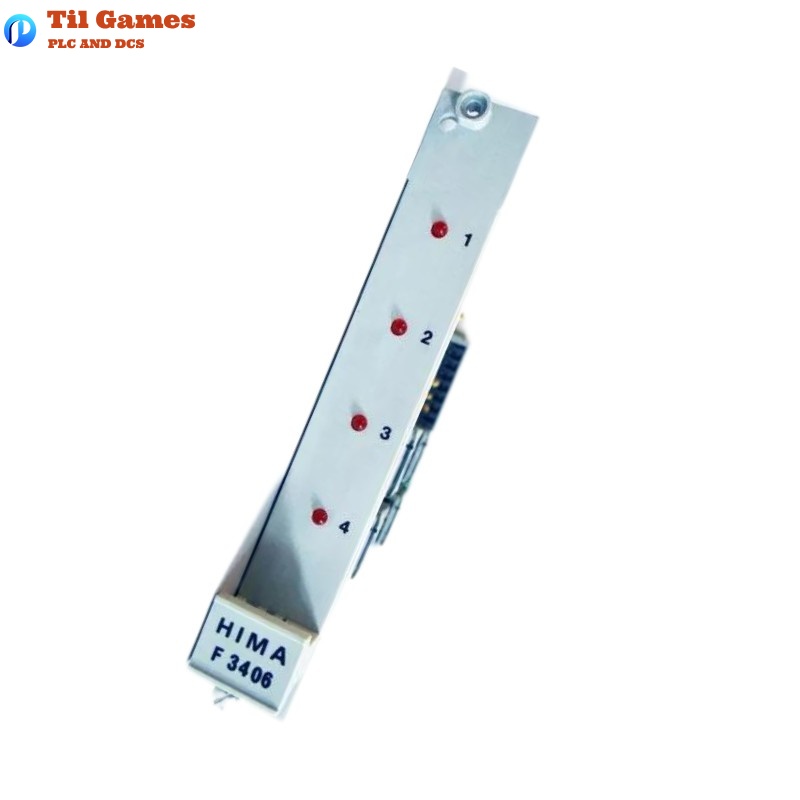

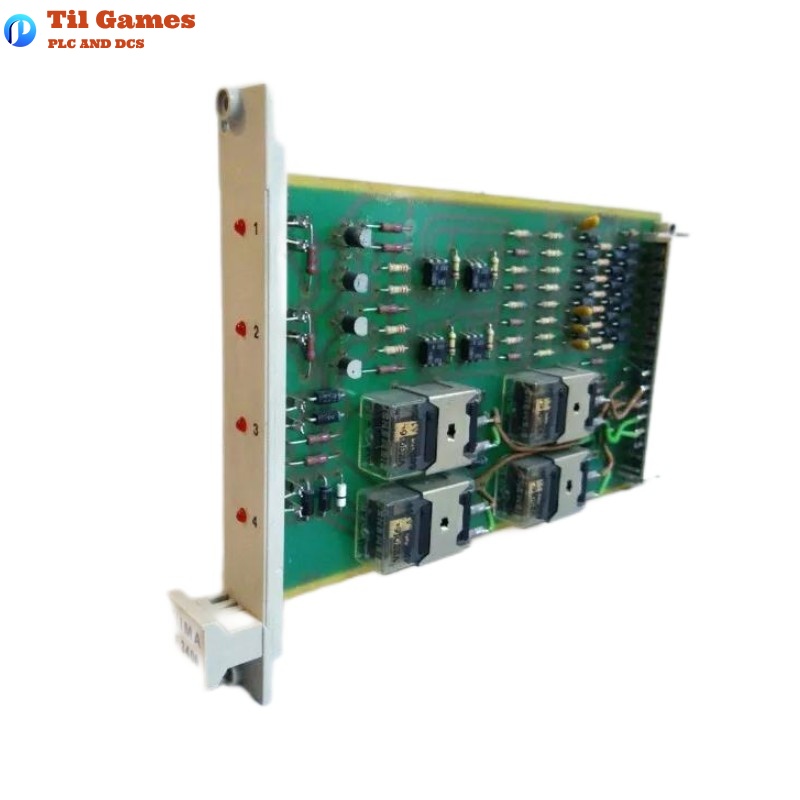

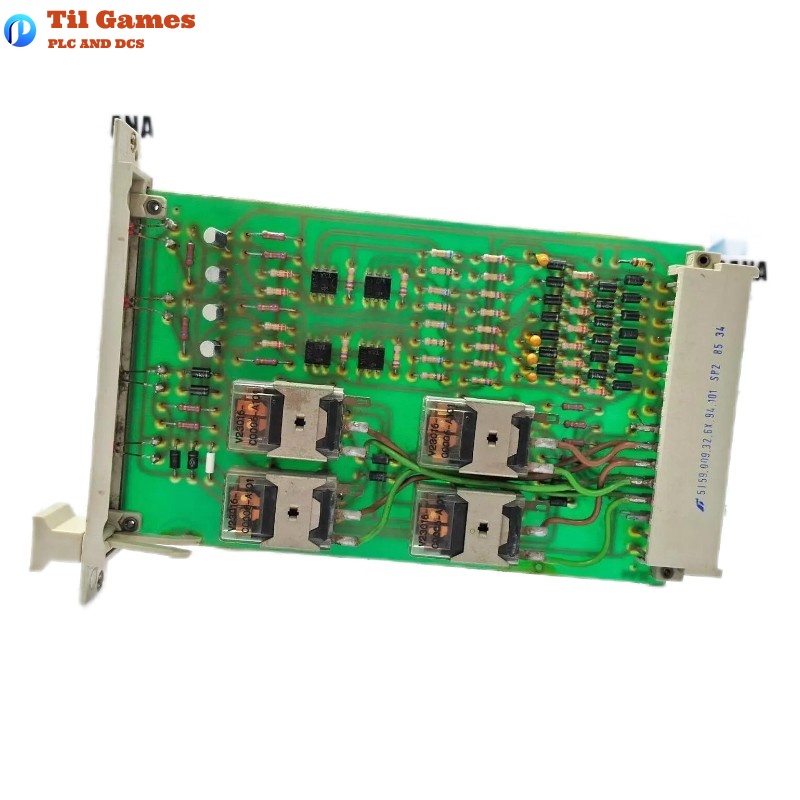

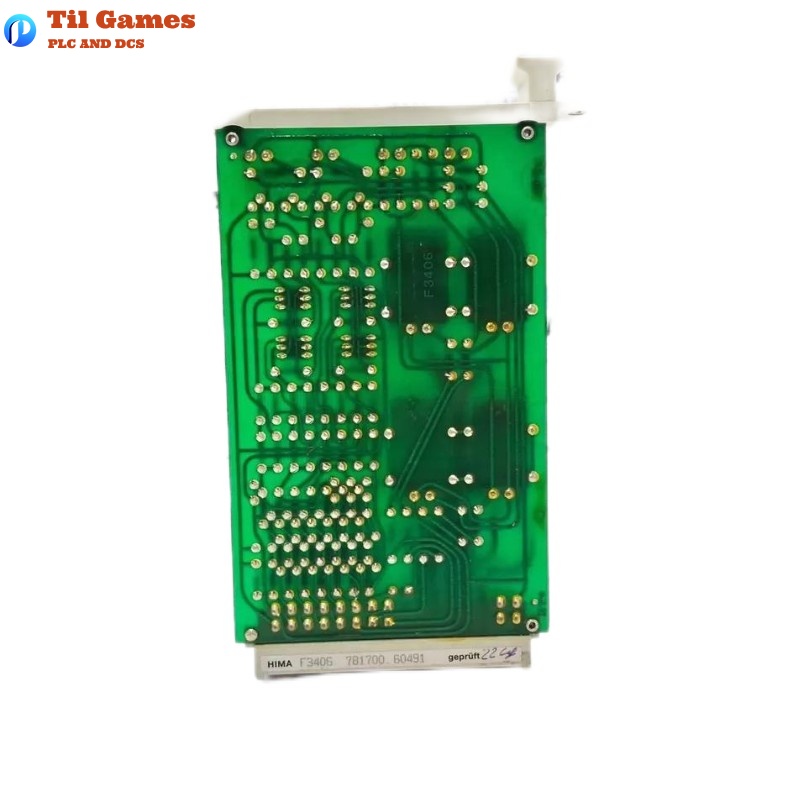

Technical Specifications – HIMA F3406 Relay Amplifier Module
| Parameter | Description |
|---|---|
| Product Model | F3406 |
| Module Type | Relay Amplifier Module |
| Function | Signal output amplification and isolation |
| Number of Channels | 4 Output Channels |
| Rated Voltage | 24 V DC |
| Output Type | Dry Contact Relay Output |
| Contact Capacity | Max 2 A / 30 V DC |
| Insulation Voltage | ≥ 500 V between channels and to system |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +85°C |
| Mounting Method | Standard DIN rail mounting |
| Dimensions | 66 x 155 x 33 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of module is the HIMA F3406?
A1: The HIMA F3406 is a relay amplifier module designed for signal output amplification and isolation, commonly used in industrial safety systems.
Q2: What is the operating voltage of this module?
A2: The operating voltage is 24V DC, which is standard for industrial control systems.
Q3: How many output channels does the module have?
A3: The F3406 module has 4 independent output channels.
Q4: What is the maximum load per output channel?
A4: Each relay output can handle up to 2 A / 30 V DC.
Q5: How is the module mounted?
A5: It uses standard DIN rail mounting for easy integration into control cabinets.
Q6: What is the operating temperature range of the module?
A6: It operates from 0°C to +60°C, with a storage range of -25°C to +85°C.
Q7: Does the module provide channel-to-channel isolation?
A7: Yes, it provides electrical isolation of at least 500V between channels and between channels and the system.
Q8: What are the physical dimensions and weight of the module?
A8: The dimensions are 66 x 155 x 33 mm, and the weight is 0.3 kg.
