Technical Specifications
| Parameter | Specification |
|---|---|

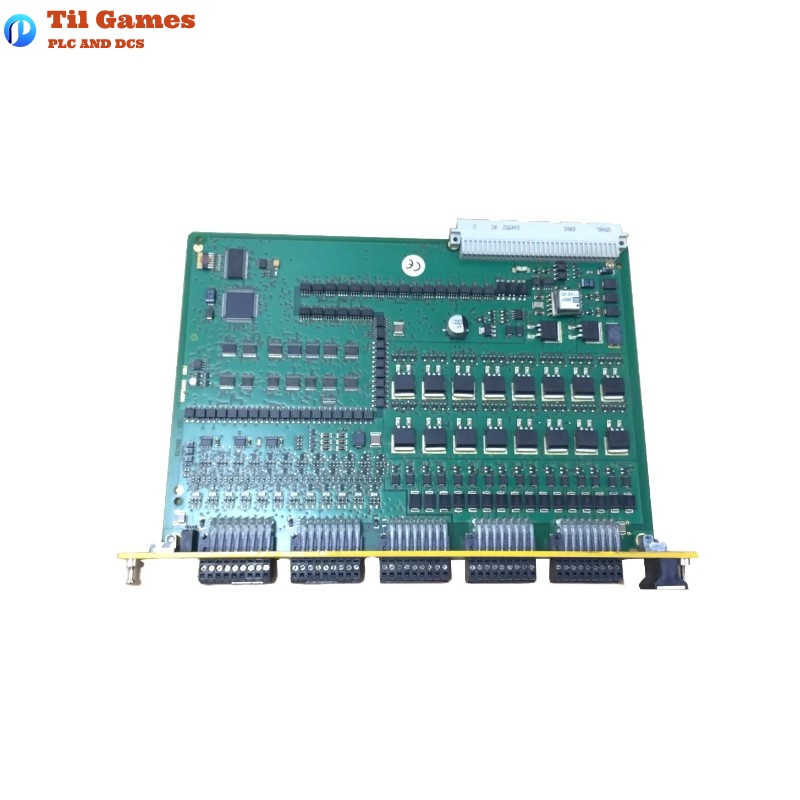

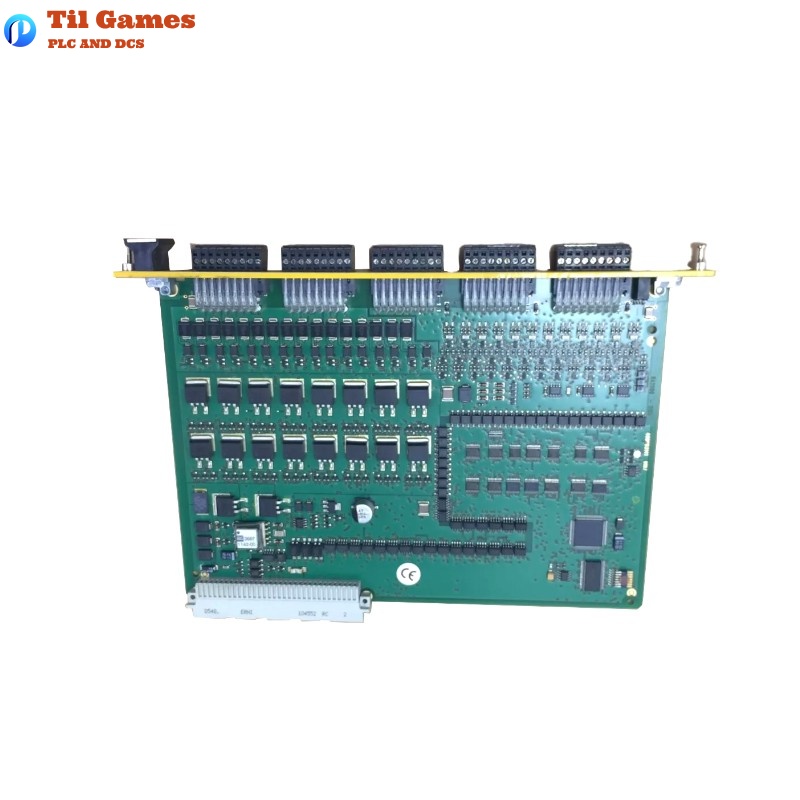

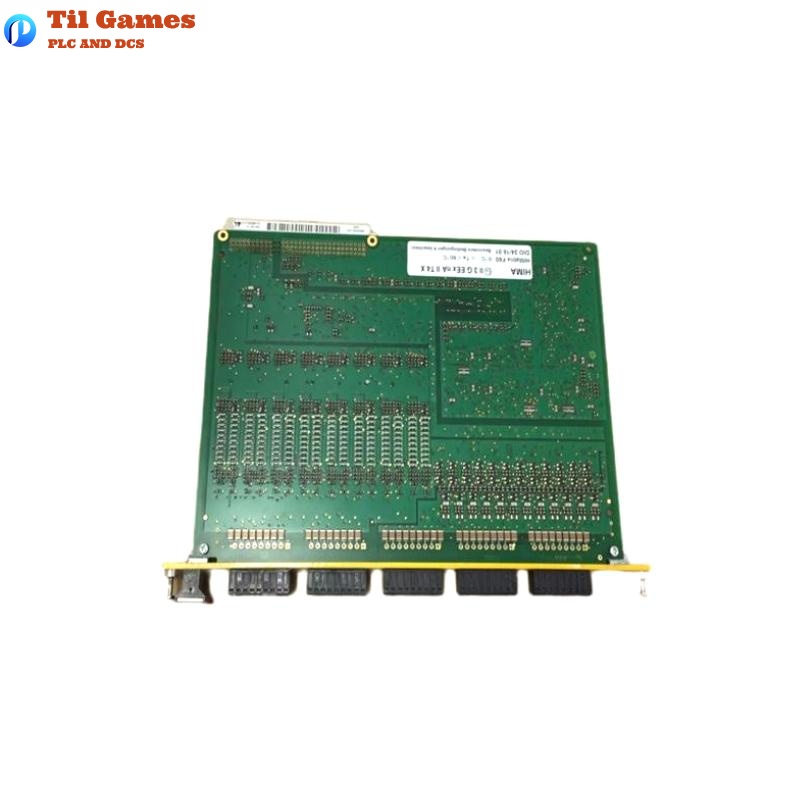

| Module Type | HIMatrix F60 DIO 24/16 01 – Safety-Related Controller Analog Input Module |
| Analog Input Channels | 8 unipolar or 4 bipolar (galvanically isolated) |
| Input Signal Types | 0…±10 V or 0…+20 mA (requires shunt resistor) |
| Input Resistance | 1 MΩ |
| Digital Resolution | 12-bit |
| Measurement Accuracy | ±0.1 % at 25°C; ±0.5 % full temperature range |
| Safety-Related Accuracy | ±1 % of final value |
| Temperature Coefficient | ±0.011 %/K of final value |
| Sampling Time | Approx. 45 µs per channel |
| Voltage Input Range | 0…±10.25 V |
| Current Input Range | 0…+20.5 mA |
| Source Resistance (Input) | ≤ 500 Ω |
| Measured Value Refresh | Once per F60 cycle |
| Operating Voltage | 24 VDC (-15% / +20%) |
| Power Consumption | 24 VDC / 380 mA; 3.3 VDC / 150 mA |
| Ambient Temperature | 0…+60 °C (AI 8 01), -25…+70 °C (AI 8 014) |
| Storage Temperature | -40…+85 °C |
| Environmental Protection | IP20 |
| Mounting | Slot 3–8 in F60 subrack |
| Compliance & Certification | SIL 3 (IEC 61508, IEC 61511, IEC 62061), SIL 4 (EN 50126/28/29), PL e, Cat 4 |
| Dimensions (W x H x D) | 100 × 160 × 50 mm |
| Weight | 0.26 kg (260 g) |
FAQ
FAQ
Q1: How many analog inputs does the module support?
A1: It supports 8 unipolar or 4 bipolar channels, all galvanically isolated.
Q2: What signal types are supported on the inputs?
A2: The module supports 0…±10 V voltage input and 0…20 mA current input (via external shunt).
Q3: What is the safety certification level of the module?
A3: It meets SIL 3 (IEC 61508/61511), SIL 4 (EN 50126/28/29), PL e, and Cat. 4 requirements.
Q4: What is the measurement accuracy?
A4: ±0.1% at 25°C, ±0.5% over the full temperature range, and ±1% safety-related accuracy.
Q5: Can the module be installed in ATEX Zone 2?
A5: Yes, it can be used in Zone 2 with proper enclosure and thermal management.
Q6: What is the sampling time per channel?
A6: Approximately 45 microseconds per channel.
Q7: What is the input resistance?
A7: The analog input resistance is 1 MΩ, and source resistance should be ≤ 500 Ω.
Q8: What are the dimensions and weight of the module?
A8: The dimensions are 100 × 160 × 50 mm, and the weight is 0.26 kg.
