Technical Specifications
| Parameter | Description |
|---|---|

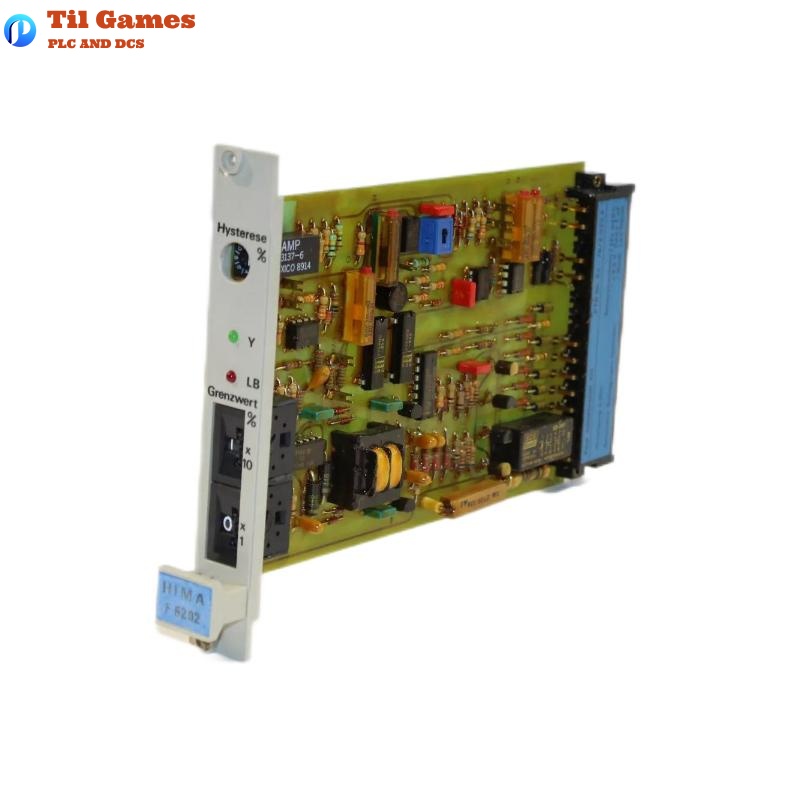

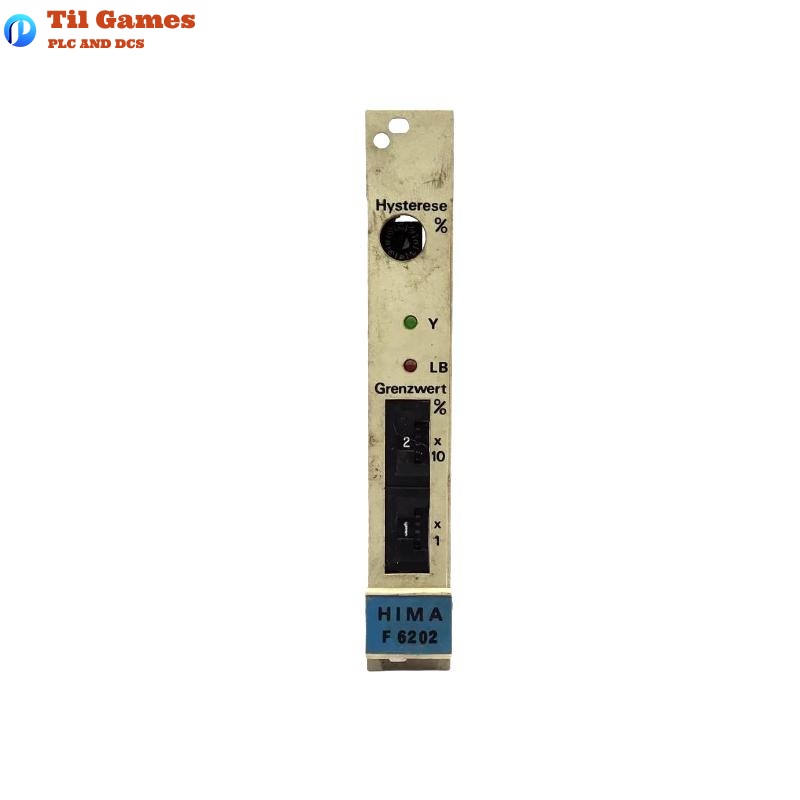

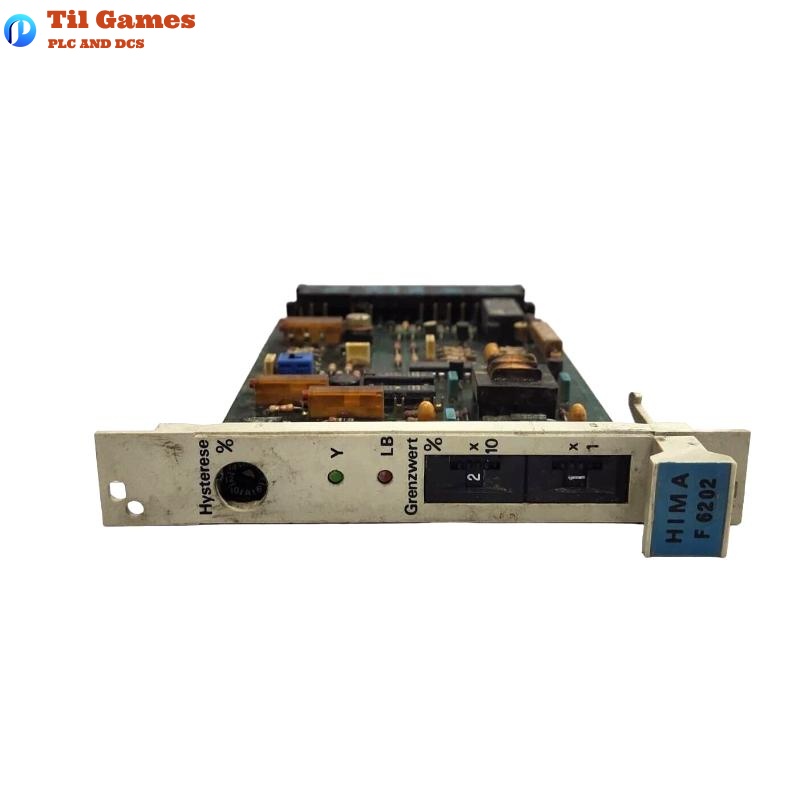

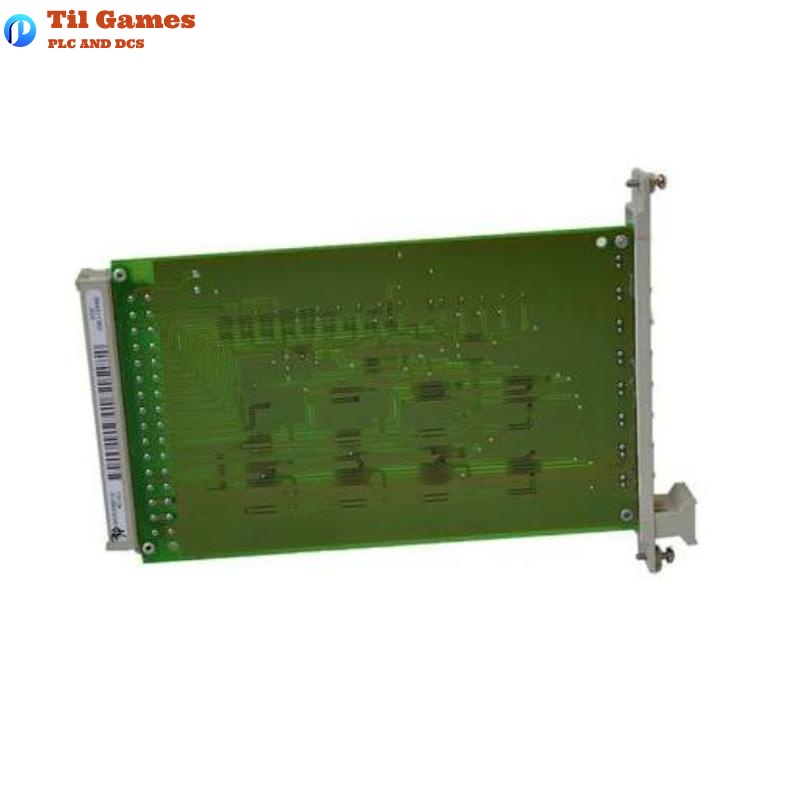

| Model Number | HIMA F6202 |
| System Platform | Planar F System |
| Module Type | Safety-Related System Module |
| Function | Safety logic and fault monitoring |
| Power Supply | 24 V DC (±20%) |
| Power Consumption | Max 3 W |
| Communication | System bus interface |
| Mounting | Plug-in installation, 19-inch rack |
| Operating Temp. | 0°C to +60°C |
| Storage Temp. | -40°C to +85°C |
| Humidity | Max 95%, non-condensing |
| Dimensions | 216 x 130 x 30 mm |
| Weight | 0.2 kg |
| Redundancy | Supports redundant configuration |
| Safety Standard | Compliant with IEC 61508 / SIL 3 |
FAQ
FAQ
Q1: What is the function of the HIMA F6202 module?
A1: It is used in the Planar F safety system for executing safety logic and fault monitoring.
Q2: Does the HIMA F6202 support redundancy?
A2: Yes, it supports redundant configurations to enhance system reliability.
Q3: What is the operating voltage for this module?
A3: The module operates at 24V DC with a tolerance of ±20%.
Q4: What is the operating temperature range?
A4: The module operates within 0°C to +60°C.
Q5: What safety certification does it comply with?
A5: It is certified according to IEC 61508 and meets SIL 3 standards.
Q6: How is the module installed?
A6: It is installed using a plug-in method in a standard 19-inch rack.
Q7: What communication method does it use?
A7: It communicates via the system bus with other modules in the Planar F system.
Q8: What are the dimensions and weight of the F6202?
A8: The dimensions are 216 x 130 x 30 mm, and the weight is 0.2 kg.
