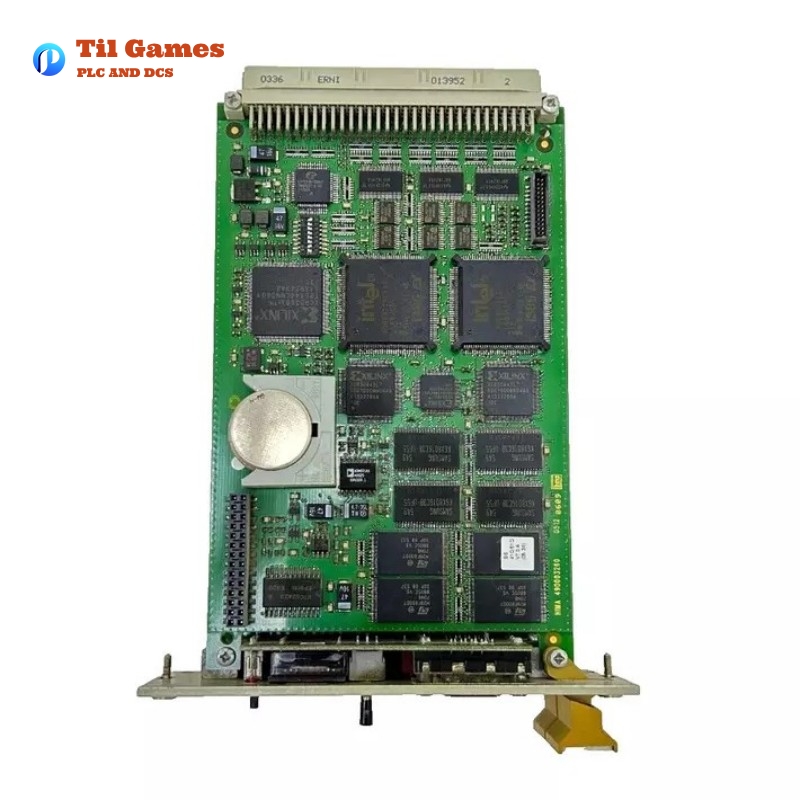

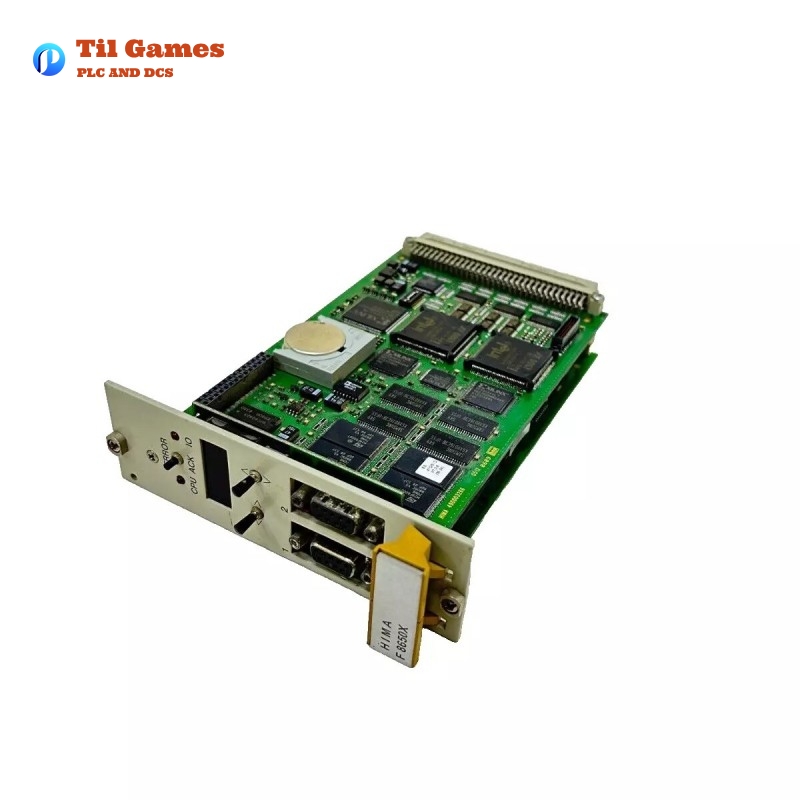

HIMA F8650X HIQuad Systems Central Module

FAQ

Q1: What is the operating temperature range for the F 8650X?
A1: The module’s battery lifetime is specified for 25°C (1000 days) and 60°C (200 days), but the full operating range is not explicitly stated in the datasheet.

Q2: How do I set the bus station number?
A2: Configure switches S1-1 to S1-7 for station numbers 1–31 (RS 485) or 1–99 (Ethernet, with S1-6/7).

Q3: What is the transmission rate for RS 485?
A3: Set via S1-8: ON = 9600 bps, OFF = 57600 bps.

Q4: How often should the buffer battery be replaced?
A4: Replace every 6 years or when “BATI” is displayed (within 3 months). Use CR 2477N (HIMA P/N 44 0000018).

Q5: Can the F 8650X be upgraded from an F 8650?
A5: Yes, but the fan concept must also be updated to ensure proper cooling.

Q6: What diagnostic tools are available?

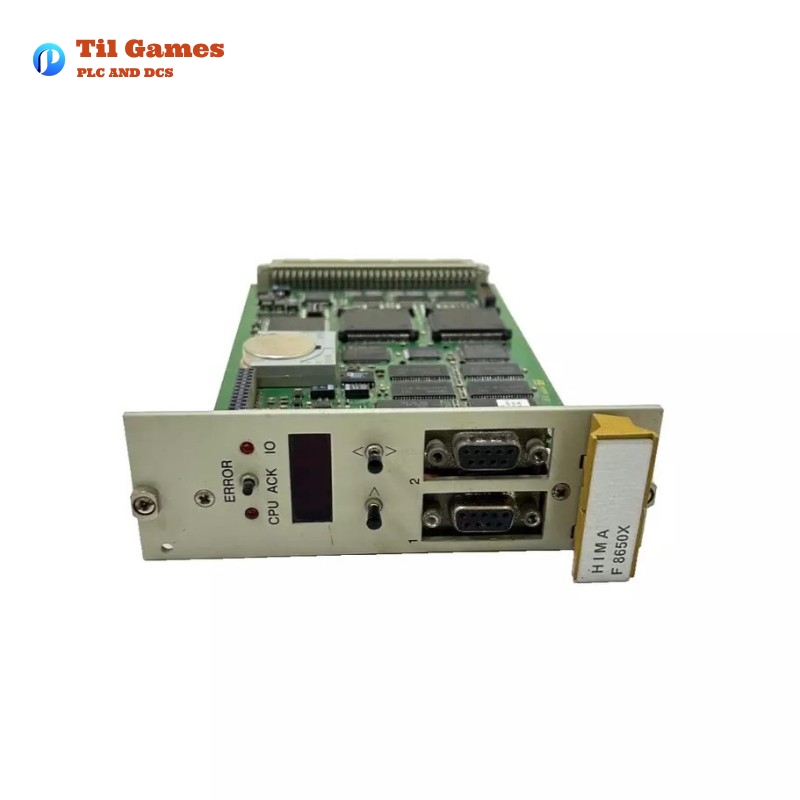

A6: Four-digit display, error LEDs (CPU/IO), toggle switches for details, and ACK button to reset errors.

Q7: Is the module hot-swappable?
A7: No. Follow the ejection procedure (loosen screws, push lever, remove quickly) to avoid system faults.

Q8: What communication protocols are supported?
A8: RS 485 (native), Ethernet protocols (Modbus TCP, safeethernet) via F 8627X module.

Central Module F8650X HIMA HIQuad Systems
