Technical Specifications
| Parameter | Specification |
|---|---|

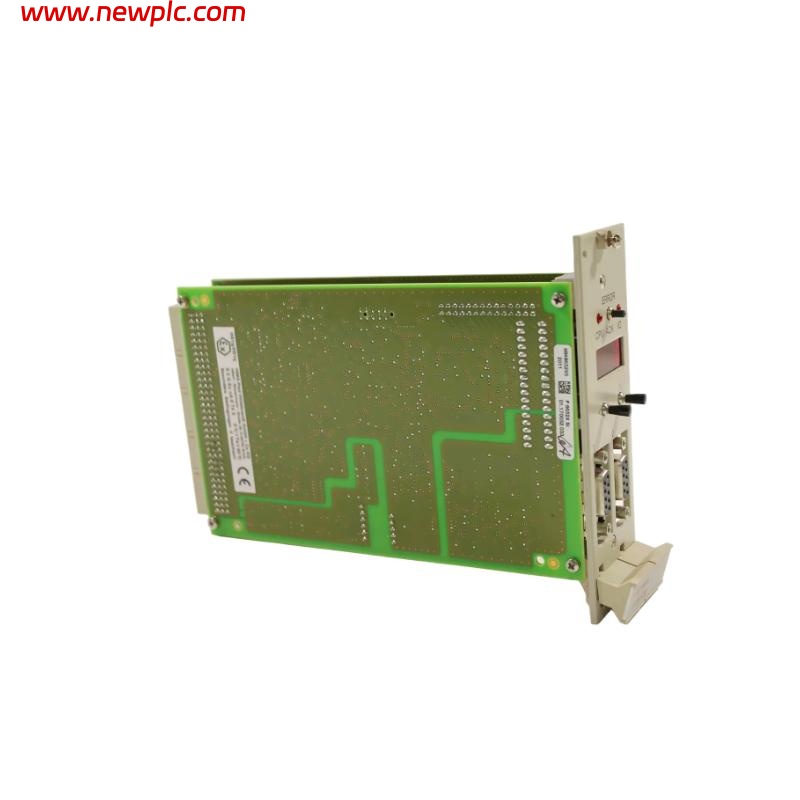

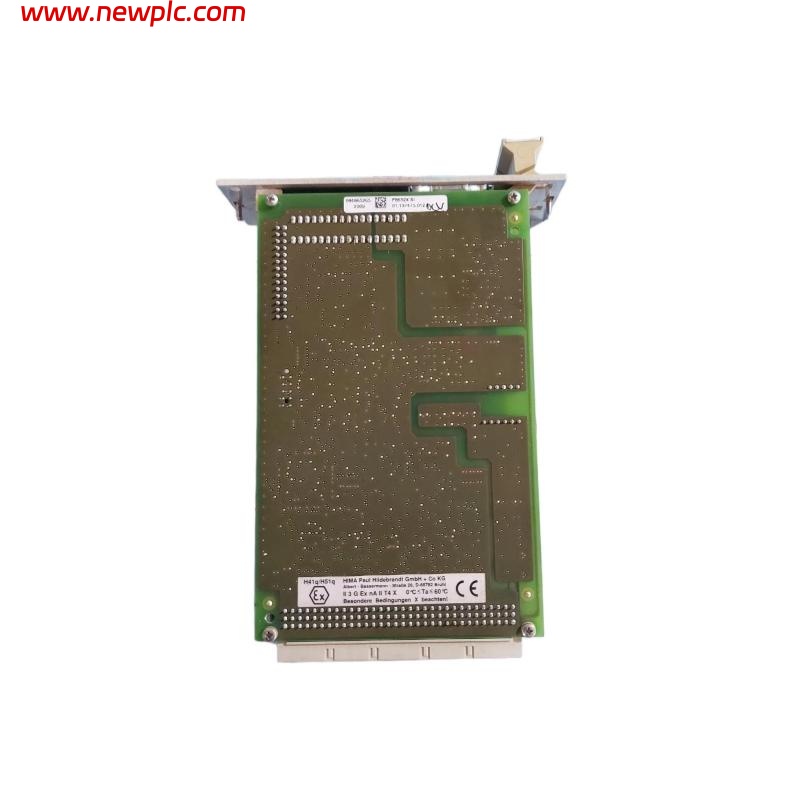

| Product Name | HIMA F8652X Central Module |

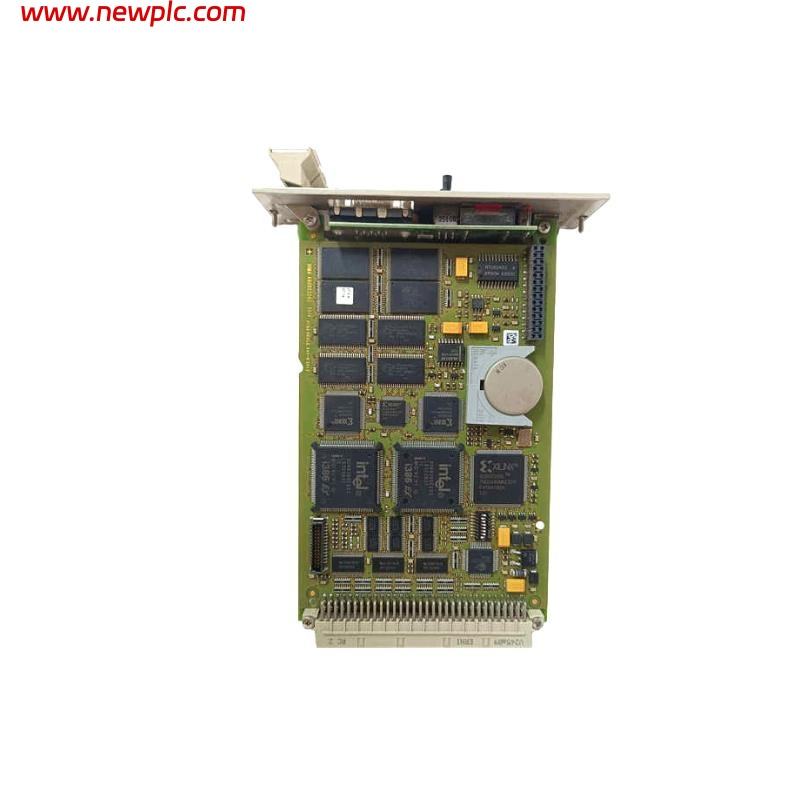

| Microprocessors | 2 × INTEL 386EX, 32-bit |
| Clock Frequency | 25 MHz |
| Memory per Microprocessor | OS Flash-EPROM: 1 MB User Program Flash-EPROM: 512 KB Data Store SRAM: 256 KB |
| Interfaces | 2 × RS-485 Serial Interfaces |
| Diagnostic Display | 4-digit alphanumeric matrix display with requestable information |
| Error Switch-off | Fail-safe watchdog with 24 V DC output (500 mA max, short circuit proof) |
| Construction | 2 PCBs in European standard + 1 PCB for diagnostic display |
| Space Requirements | 8 TE |
| Operating Voltage / Current | 5 V DC, 2000 mA |
| Dimensions | 257 × 114 × 30 mm |
| Weight | 1.5 kg |
| Battery Lifetime (without voltage) | ~2500 days @ 25°C, ~100 days @ 60°C |
| Recommended Battery Replacement | Every 4 years (Lithium CR2477N, HIMA Part No. 44 0000018) |
FAQ
FAQ
Q1: Which safety requirement classes does this module support?
A1: The HIMA F8652X is designed for use in PES H41q-MS, HS, and HRS systems, covering safety requirement classes AK1 through AK6.
Q2: What type of microprocessor is used in the module?
A2: The module features two clock-synchronized INTEL 386EX 32-bit microprocessors.
Q3: What interfaces are available on the module?
A3: It provides two RS-485 serial interfaces.
Q4: What is the power supply and consumption?
A4: It operates at 5V DC with a current consumption of approximately 2000 mA.
Q5: What are the functions of the diagnostic display?

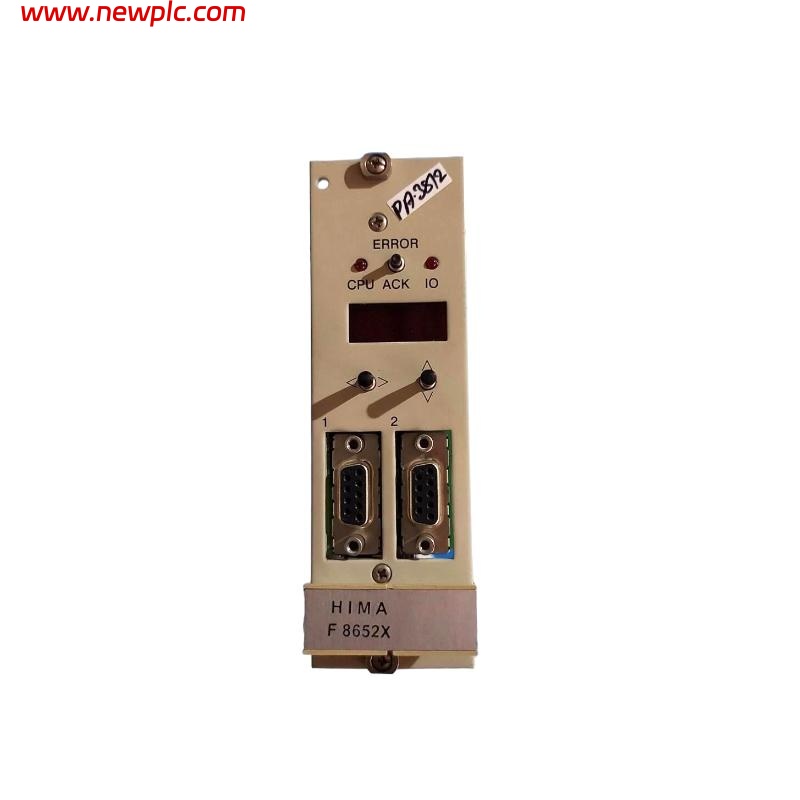

A5: The diagnostic display is a 4-digit alphanumeric matrix display with LEDs for error indication and push buttons to request detailed information and reset errors.
Q6: How much panel space does the module require?
A6: The module requires 8 TE of panel space.
Q7: What is the lifetime and replacement interval of the internal battery?
A7: The battery lasts about 2500 days at 25°C and should be replaced every 4 years (Lithium CR2477N).
Q8: What are the dimensions and weight of the module?
A8: The module measures 257 × 114 × 30 mm and weighs approximately 1.5 kg.
