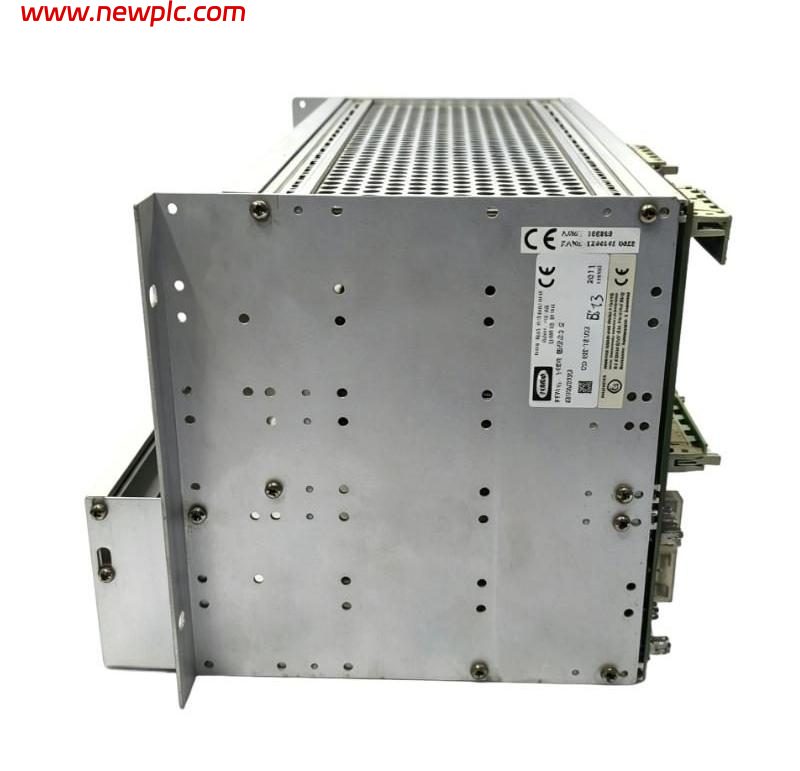

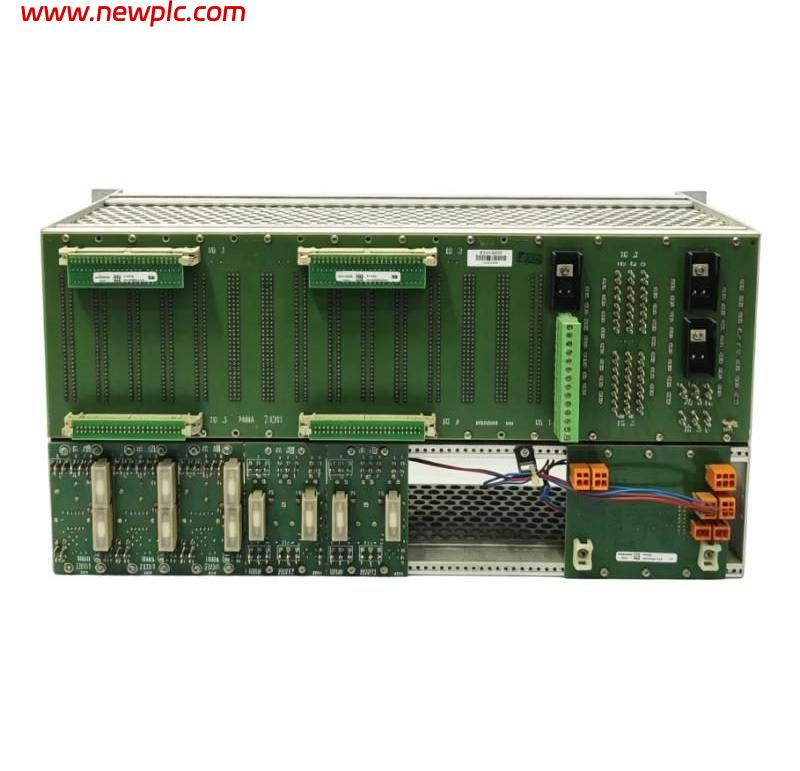

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | HIMA |
| Model | H51q-HRS |
| Assembly / Item No. | B5233-2 |
| Part Number | 997205233 |
| Product Type | Safety System Central Rack / Central Equipment Assembly |
| System | HIMA HIQuad H51q |
| System Architecture | QMR (Quadruple Modular Redundancy) |
| Rack Type | K 1412B central rack |
| Rack Size | 19-inch, 5U |
| Central CPU Modules | 2 × F8650X |
| Power Supply Modules | 3 × F7126, 24 V / 5 V, 10 A |
| Power Supply Monitoring | 1 × F7131 |
| Safety I/O Bus | Dual redundant bus |
| Bus Termination | 4 × F7546 |
| Communication Modules | Optional |
| Coprocessor Modules | Optional, up to 6 × F8621A |
| Safety Integrity Level | Up to SIL 3 according to IEC 61508 |
| Typical Applications | SIS, ESD, F&G and other critical safety control systems |
| Mounting | Standard 19-inch equipment rack |
| Dimensions (L × W × H) | Approx. 482.6 × 250 × 222 mm* |
| Weight | Approx. 2.0 kg / 4.41 lb |
FAQ
FAQ
Q1: What is the HIMA H51q-HRS B5233-2 used for?
A: The H51q-HRS B5233-2 is a central rack assembly for the HIMA HIQuad H51q safety system. It is used in high-availability safety applications such as SIS, emergency shutdown and other critical process protection systems.
Q2: What does the part number 997205233 refer to?
A: 997205233 is the HIMA part number associated with the H51q-HRS B5233-2 assembly. B5233-2 identifies the corresponding assembly configuration.
Q3: What is the difference between H51q-HRS and H51q-HS?
A: The H51q-HRS configuration provides a redundant safety I/O bus together with redundant central modules. The H51q-HS version uses a single I/O bus while retaining redundant central modules.
Q4: How many CPU modules are used in the H51q-HRS system?
A: The standard B5233-2 assembly includes two F8650X central modules. The redundant arrangement allows the safety controller to maintain high availability in the event of a single central-module fault.
Q5: What power supply modules are included?
A: The assembly documentation lists three F7126 power supply modules, rated at 24 V / 5 V and 10 A, together with an F7131 power-supply monitoring module.
Q6: What safety level does the H51q-HRS support?
A: The H51q-HRS system is TÜV certified for applications up to SIL 3 in accordance with IEC 61508.
Q7: Is the H51q-HRS compatible with F3231 I/O modules?
A: Yes. The H51q system uses modular binary and analog I/O components such as the F3231, which are installed within the associated rack architecture.
Q8: What are the dimensions and weight of the H51q-HRS B5233-2?
A: The system uses a standard 19-inch, 5U rack. The commonly referenced overall size is approximately 482.6 × 250 × 222 mm, with a reported weight of approximately 4.41 lb (2.0 kg). Actual shipping weight may be higher when the complete rack is fitted with its power supplies, CPUs, fans and other modules.
