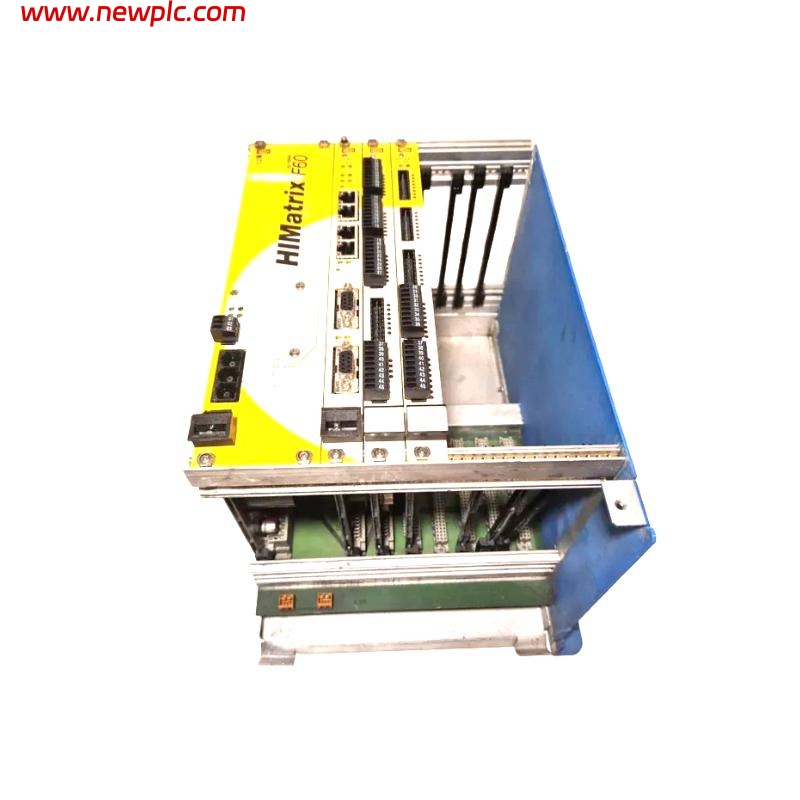

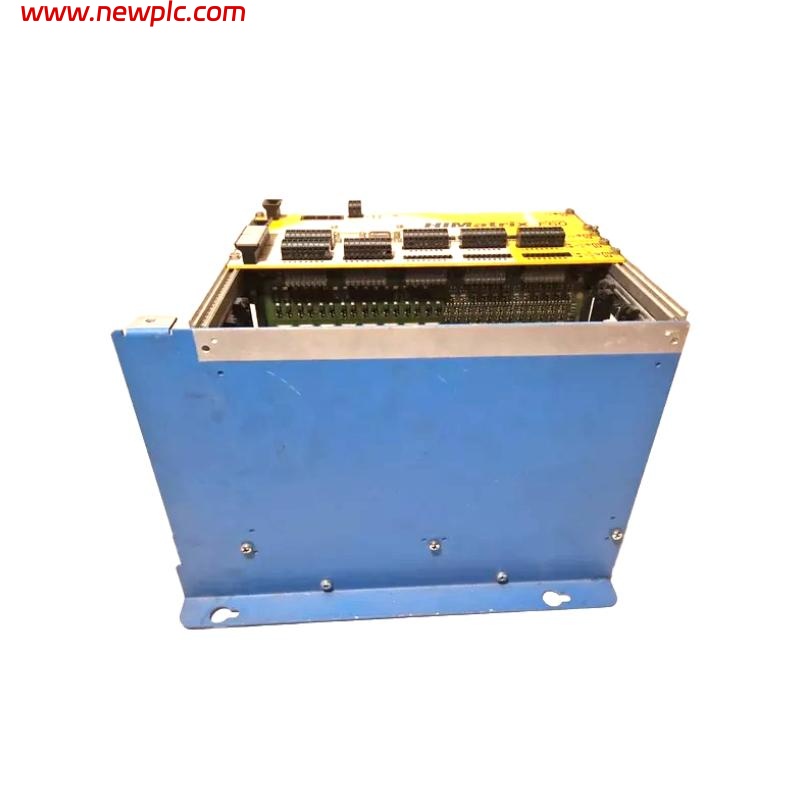

HIMA HIMatrix F60 CPU 01 Processor Module

FAQ

Q1: Which safety standards does the module comply with?
A1: The HIMatrix F60 CPU 01 is TÜV-certified to IEC 61508 SIL 3, EN 50126/28/29 SIL 4, and EN ISO 13849-1 PL e.

Q2: What are the features of the Ethernet interfaces?
A2: The module has 4 RJ-45 ports, supporting 10BASE-T/100BASE-Tx, auto-negotiation, and auto-crossover.

Q3: What is the response time of the module?
A3: The minimum response time is 20 milliseconds.

Q4: What is the operating temperature range?
A4: The module operates in the range of 0 to +60 °C and can be stored at -40 to +85 °C.

Q5: Does the module require an external battery for time backup?
A5: No, it uses an internal gold capacitor for time/date backup.

Q6: What are the power supply requirements?
A6: The module operates at 24 VDC with an allowable range of -15% to +20%, supplied from a safely isolated source per IEC 61131-2.

Q7: Can the module be installed in ATEX Zone 2 hazardous areas?
A7: Yes, it is suitable for Zone 2 installation when following the specified mounting conditions.

Q8: What are the dimensions and weight of the module?
A8: The module measures 150 × 140 × 80 mm and weighs 0.28 kg.
