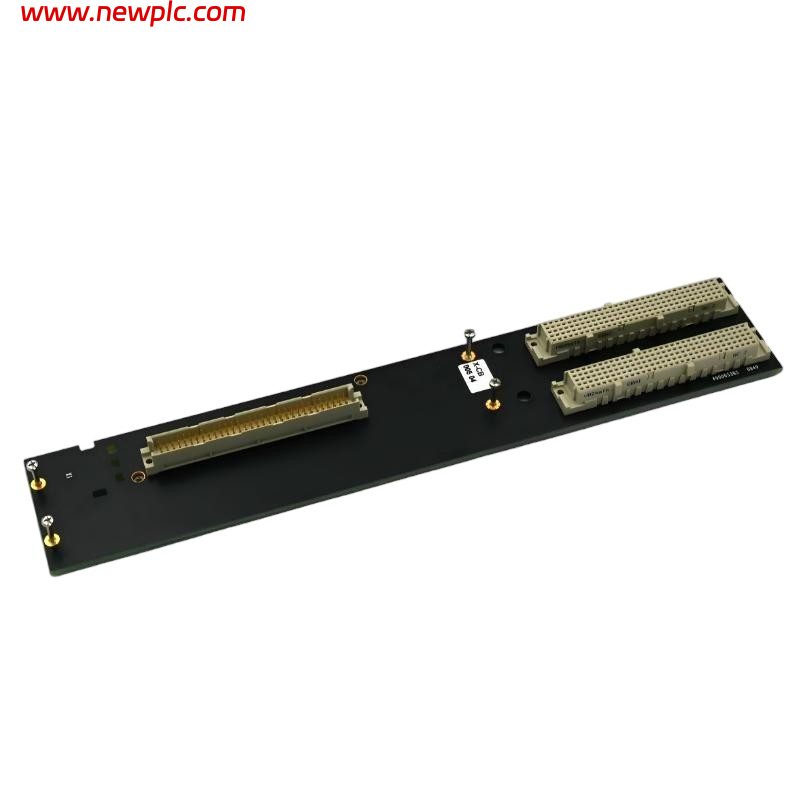

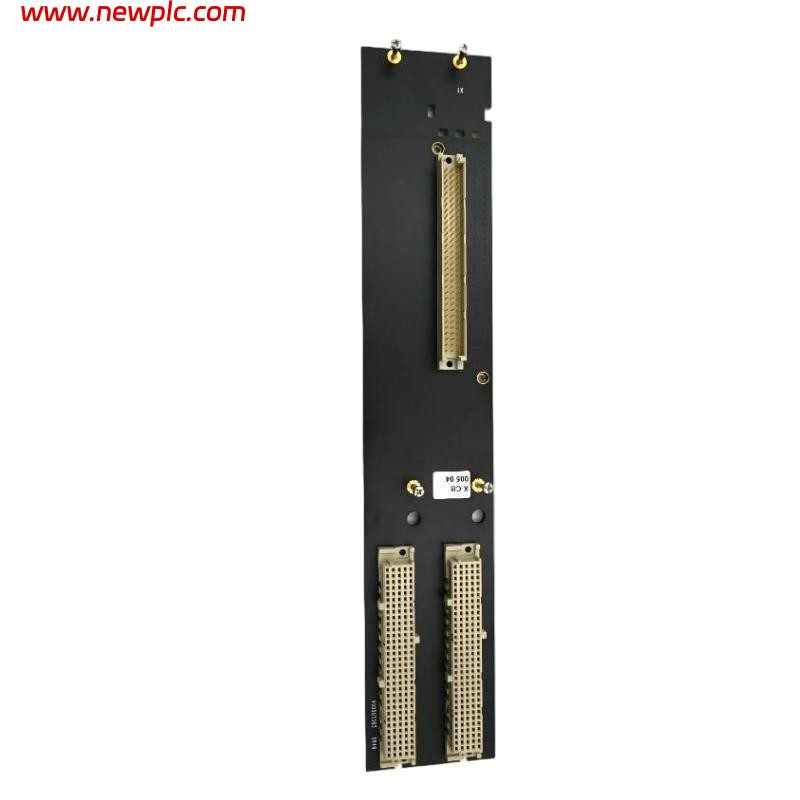

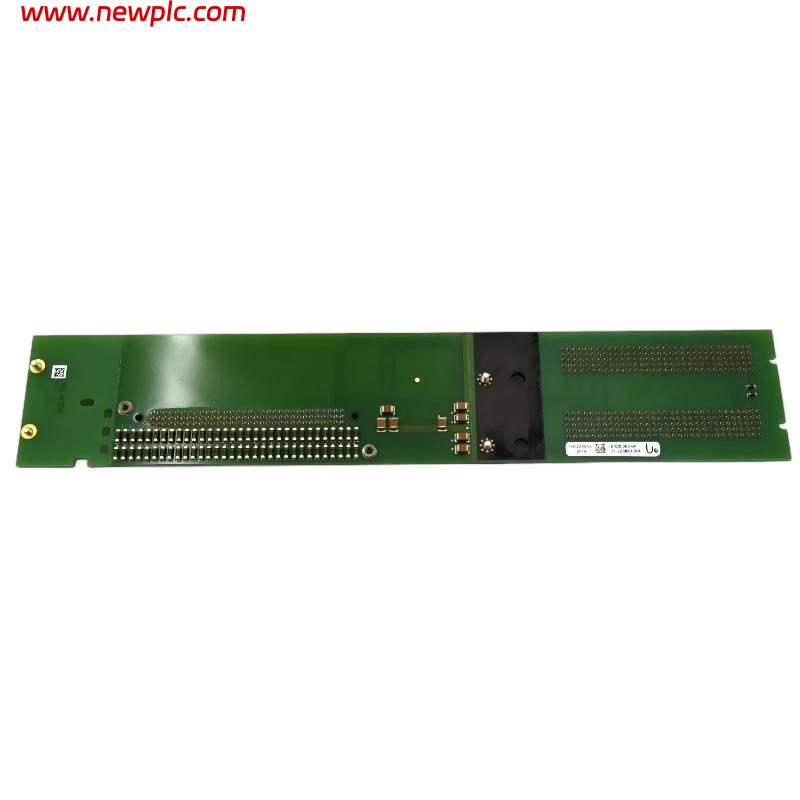

HIMA X-CB 009 04 985220043 Redundant Connector Board

FAQ

Q1: What is HIMA X-CB 009 04?
A: It is a redundant connector board with cable plug for HIMA HIMax I/O modules.

Q2: What is the part number?
A: The ordering number is 985220043 (also written 98 5020043 in HIMA documentation).

Q3: What is the main function?
A: It provides the interface between a compatible HIMax I/O module and the field termination system through a system cable.

Q4: Is X-CB 009 04 redundant?
A: Yes. X-CB 009 04 is the redundant cable-plug version, while X-CB 009 03 is the corresponding non-redundant version.

Q5: Which module is it used with?
A: It is used with compatible HIMax I/O modules, including the X-DO 24 01 and X-DO 32 01 configurations.

Q6: What type of field connection does it use?
A: It uses cable plugs rather than direct screw-terminal connections. For X-DO 32 01 applications, the cable plugs connect the I/O module to the field zone.

Q7: What are the dimensions and weight?
A: Approximately 280 × 20 × 80 mm (L × W × H) and 0.2 kg.

Q8: What should be checked before replacement?
A: Confirm the X-CB 009 04 / 985220043 identification and verify compatibility with the installed HIMax I/O module, system cable and field termination assembly.

985220043 HIMA X-CB 009 04
