Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | HIMA |
| Model | X-FTA 002 01 |

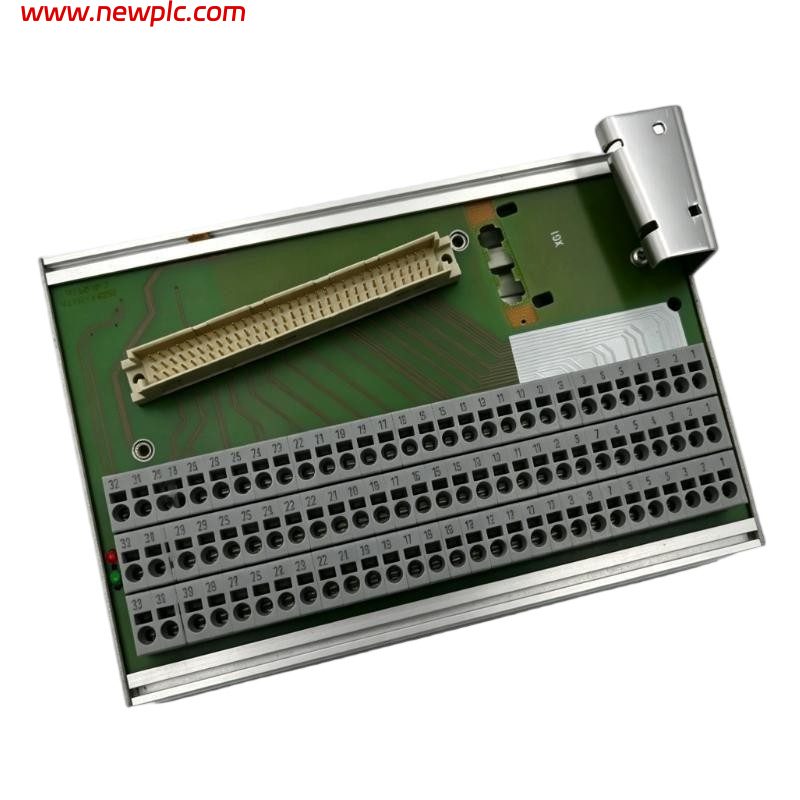

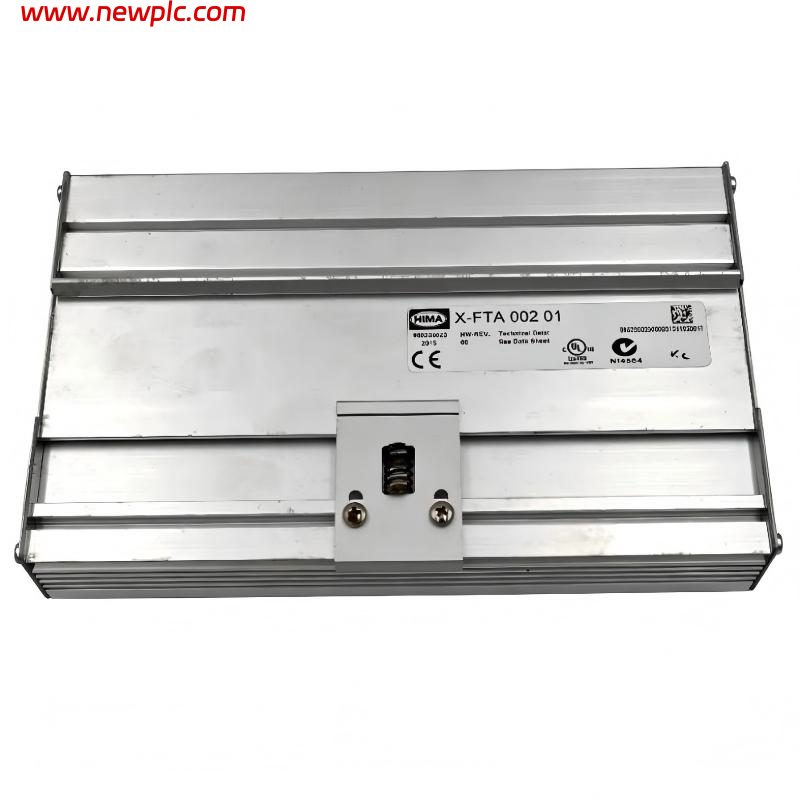

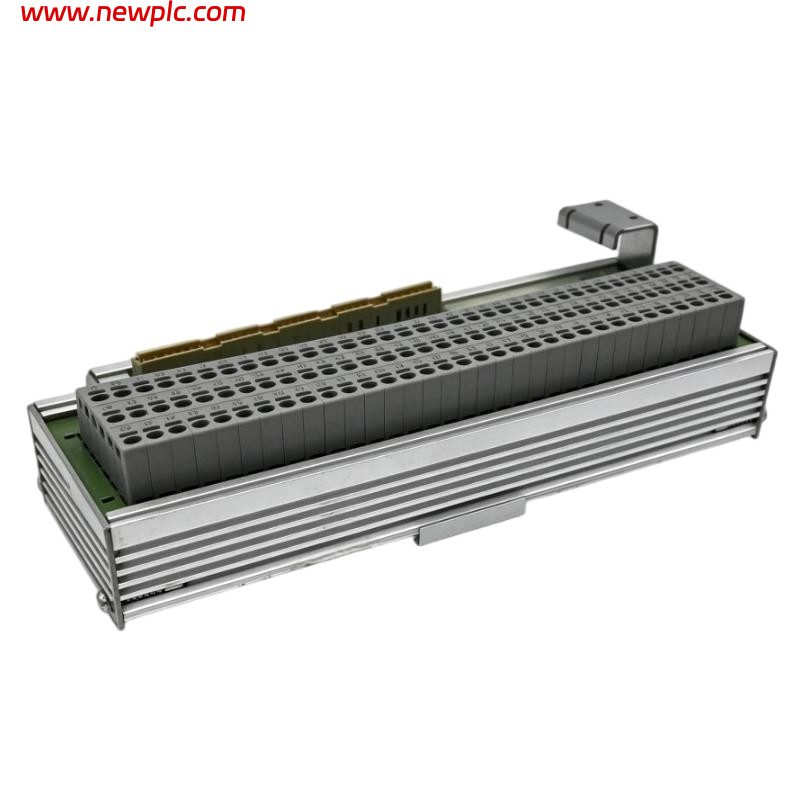

| Product Type | Universal Field Termination Assembly (FTA) |
| System | HIMA HIMax |
| Main Function | Interface between field devices and HIMax I/O modules |
| Compatible I/O Modules | X-AI 32 01, X-AI 32 02 SOE, X-AO 16 01, X-CI 24 01, X-DI 32 series, X-DO 24 series, X-DO 32 01 |
| Signal Types | Digital and analog I/O |
| Supply Voltage | 24 VDC |
| Current Load | 0.75 A per terminal |
| Terminal Cross-Section | 0.2–2.5 mm² |
| Mounting | 35 mm DIN rail |
| Protection Class | IP20 |
| Operating Temperature | 0 to +60 °C |
| Storage Temperature | -40 to +85 °C |
| Humidity | Max. 95% RH, non-condensing |
| Variants | X-FTA 002 01L / X-FTA 002 01R |
| Part Number | 98 5030015 (01L) / 98 5030023 (01R) |
| Dimensions (L × W × H) | 111 × 48 × 183 mm |
| Dimensions with Cable Plug (L × W × H) | 111 × 85 × 183 mm |
| Approx. Net Weight | 0.55 kg |
FAQ
FAQ
Q1: What is HIMA X-FTA 002 01?
A: It is a universal Field Termination Assembly used with the HIMA HIMax safety system.
Q2: What is its main function?
A: It provides an organized interface for connecting field sensors and actuators to HIMax I/O modules.
Q3: Which I/O modules are compatible?
A: It is compatible with modules including X-AI 32 01, X-AI 32 02 SOE, X-AO 16 01, X-CI 24 01, X-DI 32 series, X-DO 24 series and X-DO 32 01.
Q4: What voltage does it support?
A: The FTA is designed for SELV or PELV circuits, with 24 VDC commonly used in the HIMax system.
Q5: What is the maximum current per terminal?
A: The permissible current load is 0.75 A per terminal.
Q6: How is it installed?
A: It is mounted on a standard 35 mm DIN rail and can be installed horizontally or vertically.
Q7: What are the dimensions and weight?
A: Approximately 111 × 48 × 183 mm (L × W × H) and 0.55 kg. With the cable plug installed, the dimensions are approximately 111 × 85 × 183 mm.
Q8: What are the 01L and 01R versions?
A: They are the left-plug and right-plug versions of the X-FTA 002 01. The documented part numbers are 98 5030015 for 01L and 98 5030023 for 01R.
