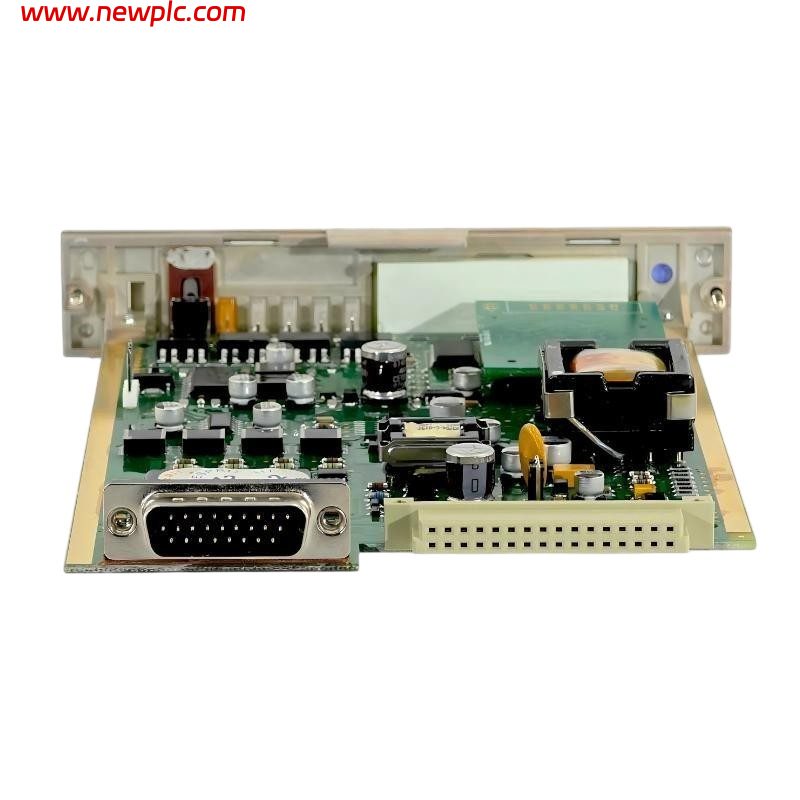

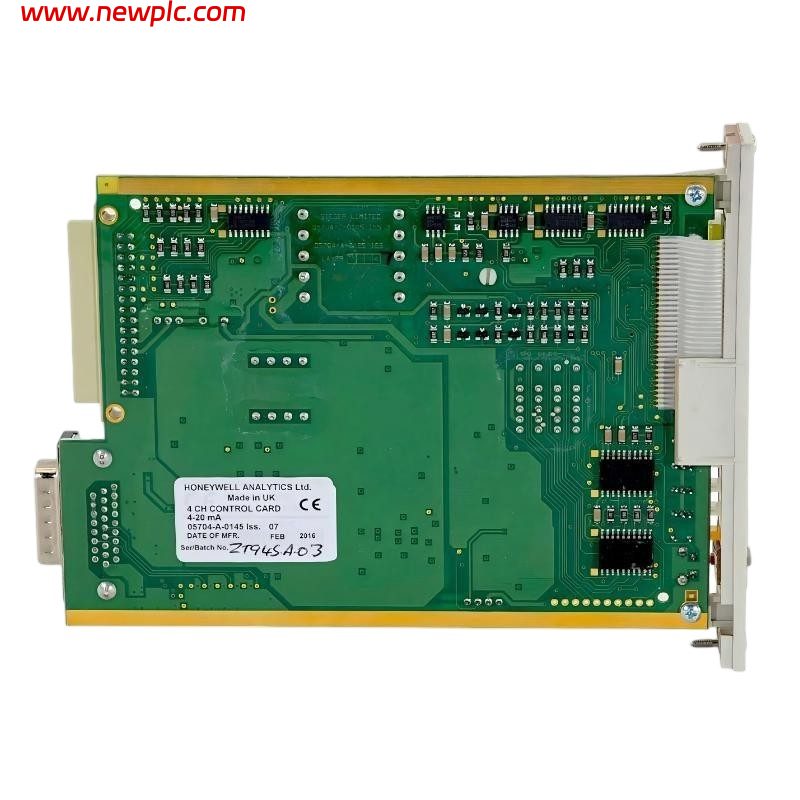

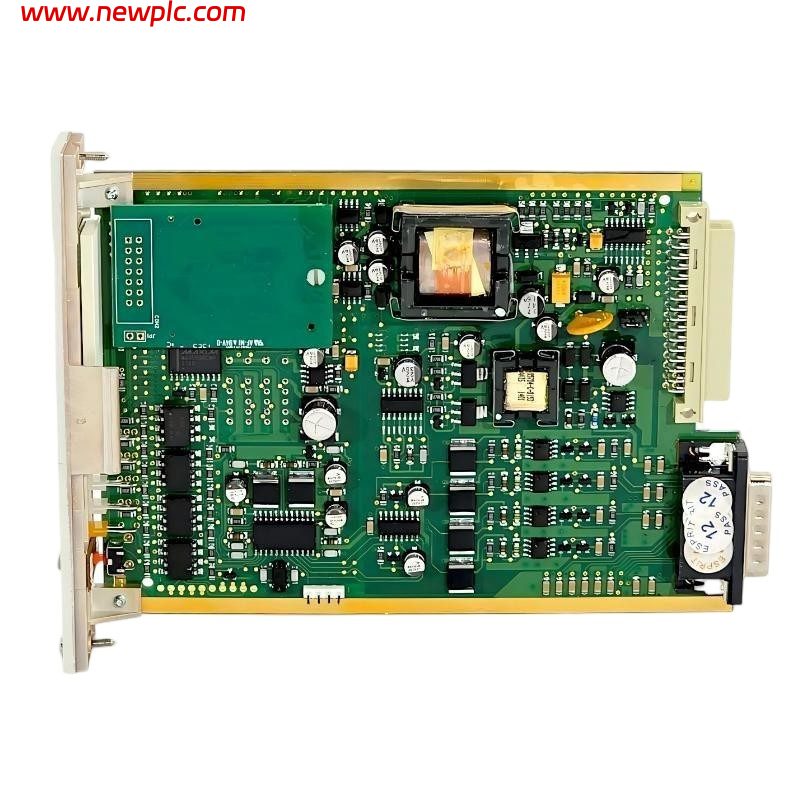

Honeywell 05704-A-0145 Four Channel Control Card (4–20 mA Input)

FAQ

Q1: What is the Honeywell 05704-A-0145 used for?
The 05704-A-0145 is used in Honeywell System 57 gas detection systems to monitor up to four gas detector inputs through standard 4–20 mA signals and provide alarm and status information.

Q2: What type of input signal does the 05704-A-0145 support?
The module supports 4–20 mA current input signals from gas detectors and transmitters, with a measurement range of approximately 0 to 25 mA.

Q3: How many channels does the 05704-A-0145 provide?
The control card provides four independent input channels, allowing multiple gas detectors to be monitored within a single System 57 rack.

Q4: What are the dimensions and weight of the 05704-A-0145?
The control card has approximate dimensions of 133 × 25 × 175 mm and weighs approximately 0.165 kg.

Q5: Which system is compatible with the 05704-A-0145?
The module is designed for use with the Honeywell Analytics System 57 Gas Detection Control System and related 5704 control equipment.

Q6: What alarm functions are available on the 05704-A-0145?
The card supports gas alarm monitoring functions including A1, A2, A3 alarm levels, fault indication, inhibit status, and alarm reset functions.

Q7: What should be checked before installing the 05704-A-0145?
Before installation, check the System 57 rack compatibility, input signal type, power supply requirements, detector wiring, channel configuration, and environmental conditions.

Q8: What are the advantages of the Honeywell 05704-A-0145?
The 05704-A-0145 provides reliable four-channel gas monitoring, standard 4–20 mA signal compatibility, clear alarm indication, compact rack installation, and dependable operation for industrial safety applications.
