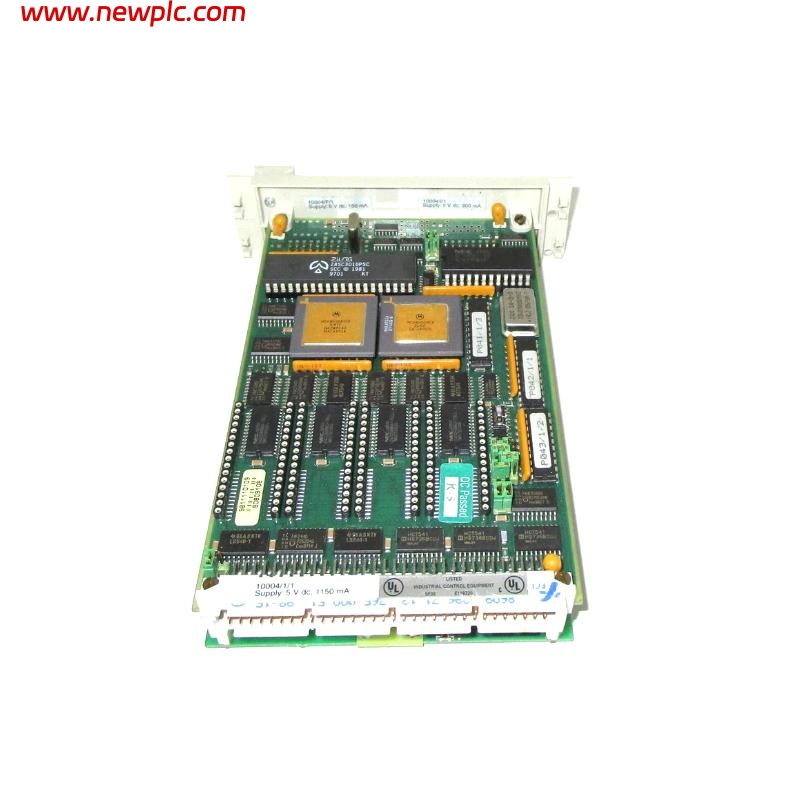

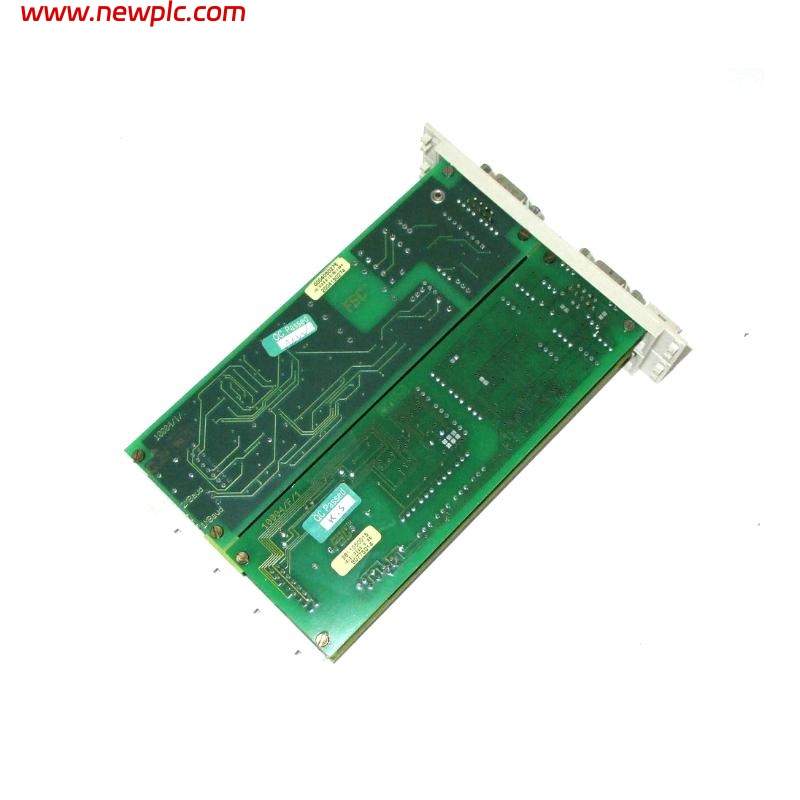

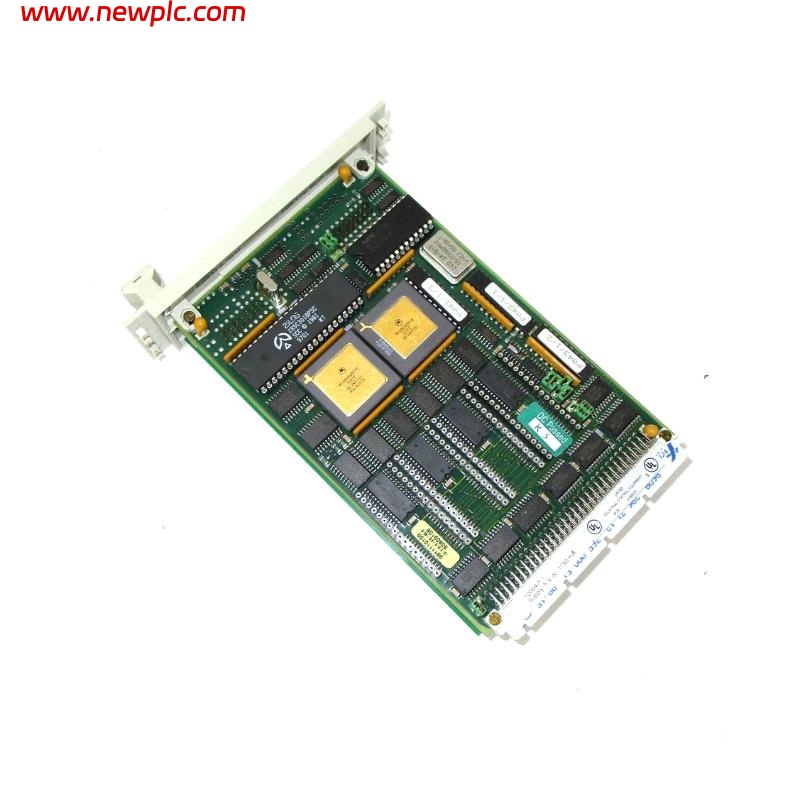

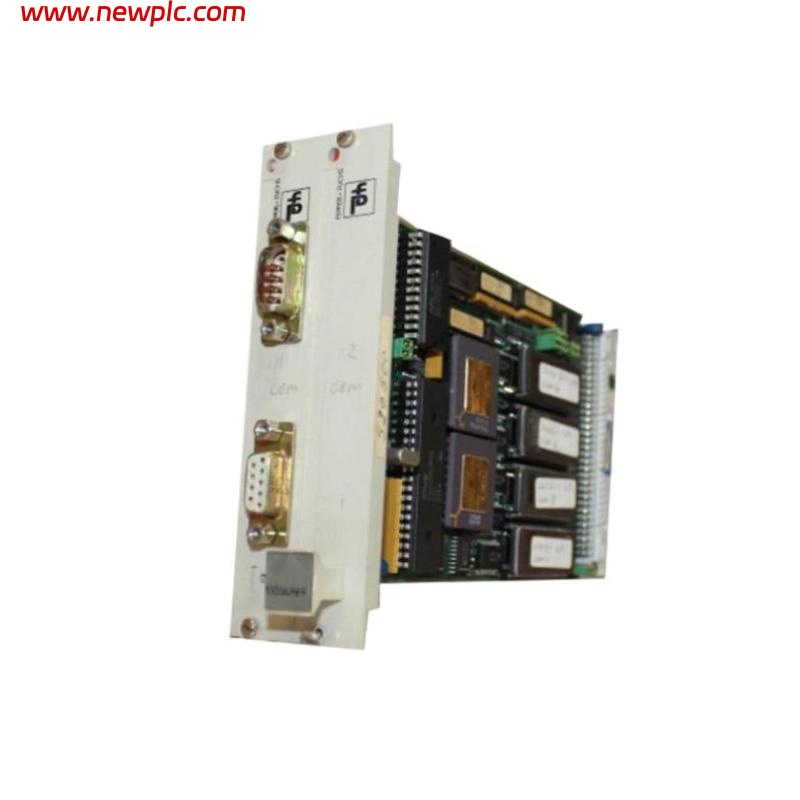

Honeywell 10004/I/F Communication Module

FAQ

Q1: What communication protocols does this module support?
A1: It supports RS422 and RS485 protocols for duplex and simplex communication in FSC systems.

Q2: How many systems can it connect to at most?
A2: It supports up to 16 connected systems.

Q3: What is the maximum communication speed?
A3: The maximum supported baud rate is 2 Mbaud.

Q4: Does the module have isolation protection?
A4: Yes, it provides galvanic isolation rated >6 kV.

Q5: What are the power requirements?
A5: It requires a 5V DC power supply, consuming approximately 300 mA.

Q6: What space does it require in the rack?
A6: It takes up 4 TE (=4 HP) width and is a half-height module.

Q7: What FSC configurations are supported?
A7: It is suitable for both redundant and master-slave configurations between FSC user stations and systems.

Q8: What are the dimensions and weight of the module?
A8: The module measures 20.32 × 33.34 × 160 mm and weighs 0.4 kg.

10004/I/F Communication Module Honeywell Honeywell 10004
