Technical Specifications
| Parameter | Specification |
|---|---|

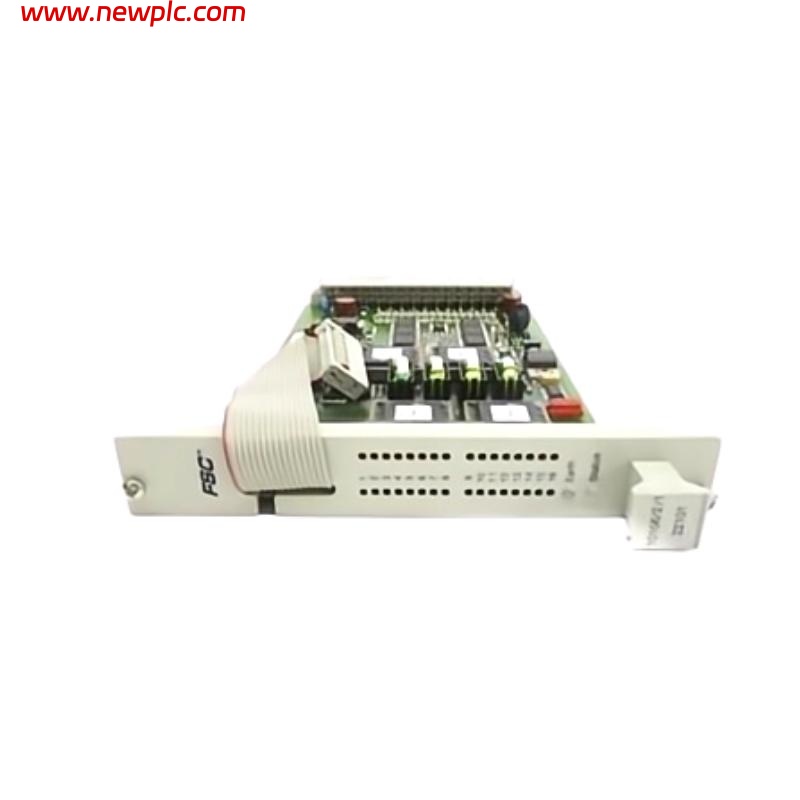

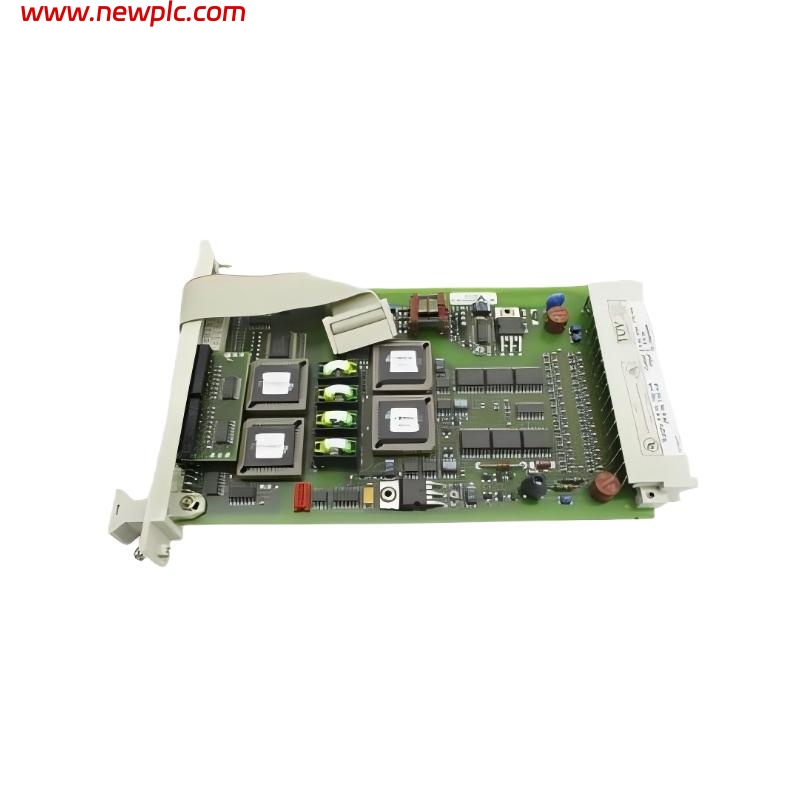

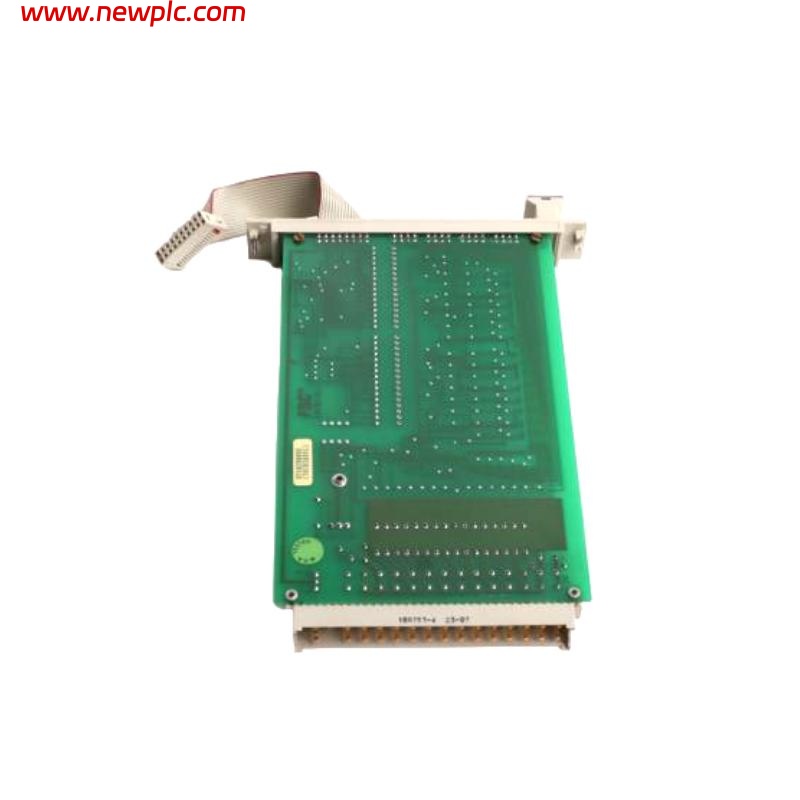

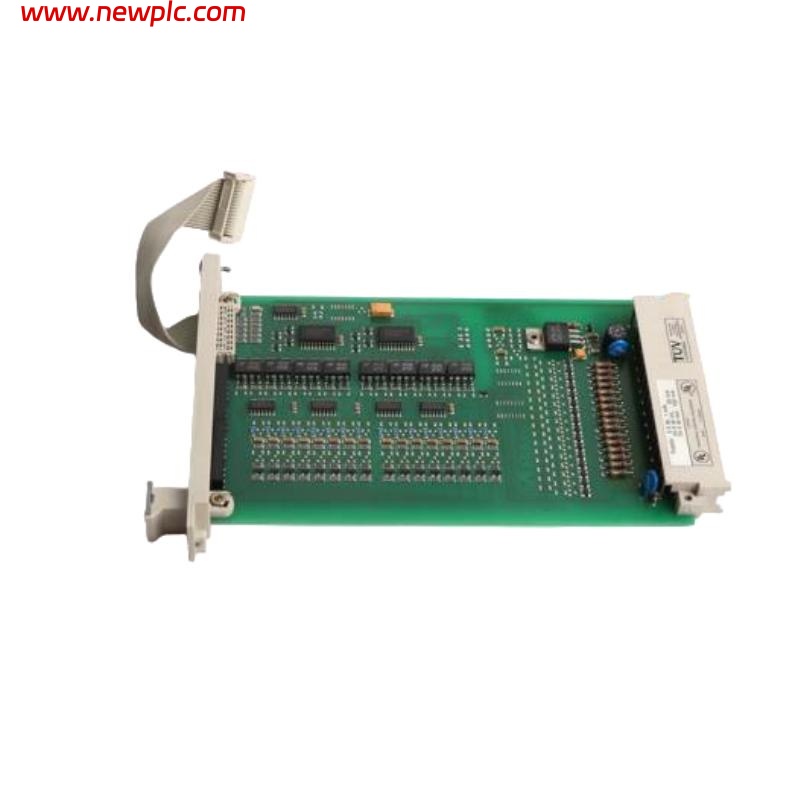

| Product Name | Honeywell 10104/2/1 Fail Safe Control Digital Input Module |
| Type | Digital Input Module (Fail Safe) |
| Number of Channels | 16 Digital Inputs |
| Input Voltage Range | 18–30 VDC |
| Input Current | ≤ 8 mA |
| Input Type | Sink / Source |
| Isolation | Optical isolation between channels and backplane |
| Diagnostic Functions | Integrated channel diagnostics |
| Fail Safe Operation | Yes |
| Power Supply | Supplied via system backplane |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -40 to 85 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting | DIN rail |
| Dimensions (W x H x D) | 22 x 124 x 156 mm |
| Weight | 0.5 kg |
FAQ
FAQ
Q1: What is the main function of the Honeywell 10104/2/1 module?
A1: It serves as a fail-safe digital input module that collects discrete signals from field devices and ensures safe system operation.
Q2: How many digital input channels does it support?
A2: The module supports 16 individual digital input channels.
Q3: Is the module optically isolated?
A3: Yes, each input channel is optically isolated from the system backplane.
Q4: Can it operate in high-temperature environments?
A4: The module supports operating temperatures from 0 to 60 °C.
Q5: What diagnostic capabilities does it provide?
A5: The module offers integrated diagnostics for each input channel to detect faults.
Q6: Does the module support both sinking and sourcing inputs?
A6: Yes, it is compatible with both sink and source type input signals.
Q7: How is power supplied to the module?
A7: Power is provided via the system’s backplane connection.
Q8: Is the module suitable for safety-critical applications?
A8: Yes, it is designed specifically for fail-safe and safety-critical control systems.
