Technical Specifications
| Parameter | Description |
|---|---|

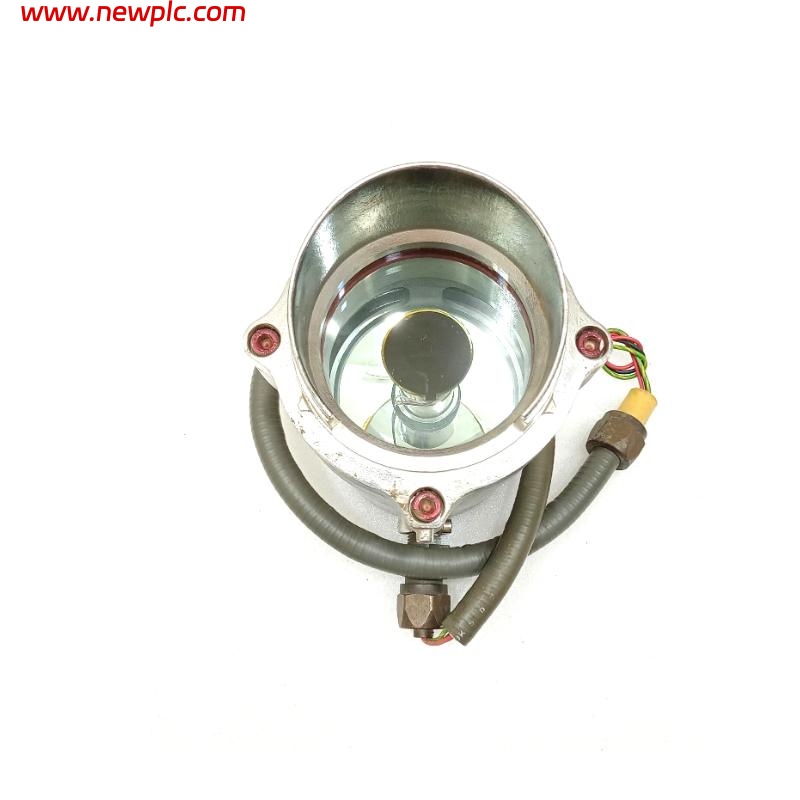

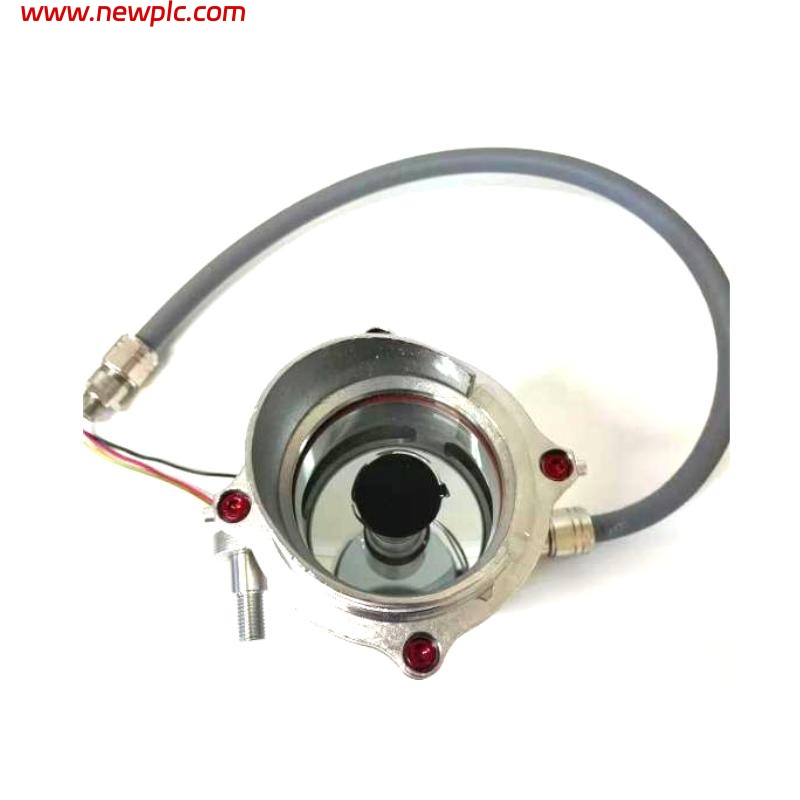

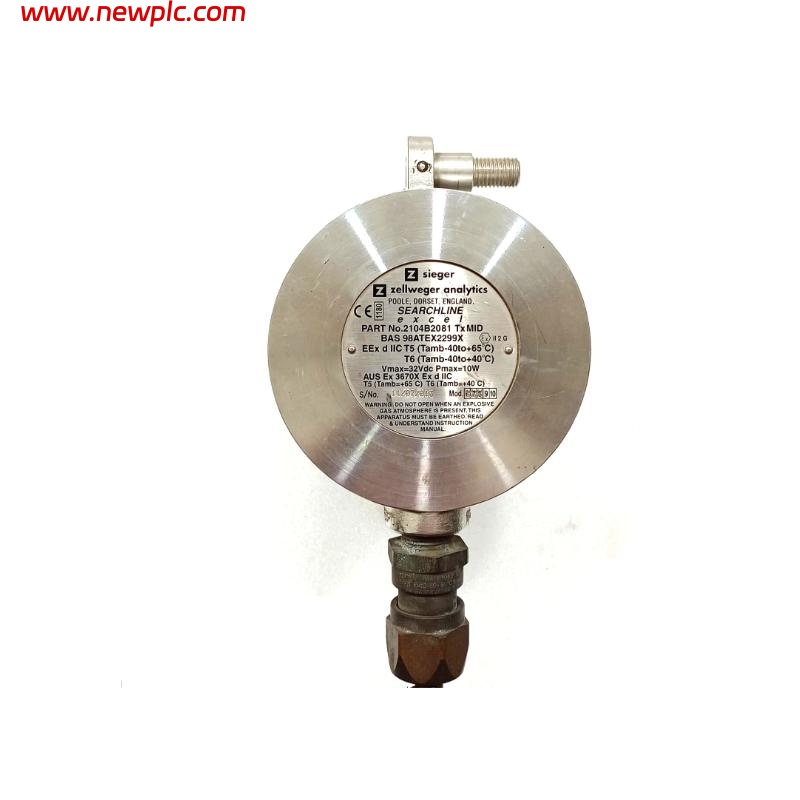

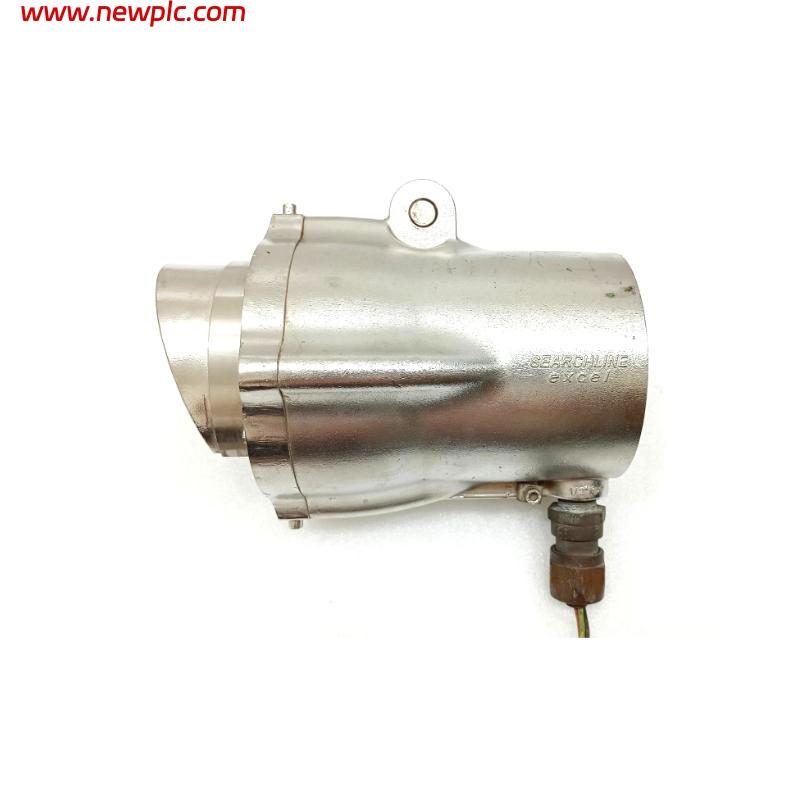

| Product Name | Honeywell Searchline Excel Medium Range Transmitter Incl Conduit ATEX |
| Detection Type | Infrared Open-Path Hydrocarbon Gas Detection |
| Detection Range | Medium Range: 40–120 m (130–390 ft) |
| Measurement Output | 4–20 mA Analog Output (Source/Sink Configurable) |
| Communication Interface | RS485 (for SHC1 Handheld Interrogator / Modbus RTU via DX100M or OELD) |
| Power Supply | 24 VDC nominal (typical operating voltage range: 18–32 VDC) |
| Power Consumption (typical) | < 8 W (depending on configuration and heating requirements) |
| Heated Optics | Yes, with turbo mode for extreme environments |
| Operating Temperature | -40°C to +65°C |
| Environmental Protection Rating | IP66 / IP67 |
| Construction Material | 316 Stainless Steel |
| Window Material | Toughened soda lime glass |
| Certification | ATEX, IECEx, UL, CSA/FM, RoHS |
| Beam Path Diameter (recommended) | ≥ 20 cm |
| Adjustment Range (Mounting) | Horizontal ±90°, Vertical ±45° |
| Dimensions | 211 mm × 353 mm × 433 mm |
| Weight | 7 kg |
FAQ
FAQ
Q1: How does the Searchline Excel detect hydrocarbon gases?
A1: It operates using infrared (IR) absorption. Hydrocarbon gases absorb specific IR wavelengths, and the system measures changes in the signal received to determine gas concentration.
Q2: What is the maximum detection range of this model?
A2: The medium-range model can detect gas across distances from 40 to 120 meters.
Q3: Does this detector have an environmental protection rating?
A3: Yes, it is rated IP66/IP67, offering high protection against dust and water ingress.
Q4: Is analog output supported?
A4: Yes, the receiver provides a 4–20 mA analog output for integration with control systems.
Q5: Is the infrared beam visible, and is it safe?
A5: The infrared beam is invisible and classified as eye-safe.
Q6: Is the product explosion-proof certified?
A6: Yes, it holds certifications such as ATEX and IECEx, making it suitable for hazardous areas.
Q7: Does the unit support remote communication?
A7: Yes, it communicates via RS485 with the SHC1 handheld interrogator and supports Modbus RTU through termination units.
Q8: Can the unit operate in extremely cold environments?
A8: Yes, it features heated optics and can function in environments as cold as -40°C.
