Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 2MLQ-SS2A-CC |
| Output Points | 16 points |
| Isolation Method | Photo coupler isolation |
| Rated Load Voltage | AC 100–240V (50 / 60 Hz) |
| Max Load Voltage | AC 264V |
| Max Load Current | 0.6A per point, 4A per COM |
| Minimum Load Current | 20 mA |
| Off-state Leakage Current | 2.5 mA (AC 220V, 60 Hz) |
| Max Inrush Current | 20A per AC cycle |
| On-state Voltage Drop | Less than AC 1.5V (at 2A load) |
| Surge Absorber | Varistor (387–473V) and C.R Absorber (IEC 61006-6-2) |
| Response Time (On) | ≤1 ms |
| Response Time (Off) | ≤0.5 cycle + 1 ms |
| Common Method | 16 points / 1 COM |
| Current Consumption | Max. 300mA (with all outputs ON) |
| Operation Indicator | LED ON when output is active |

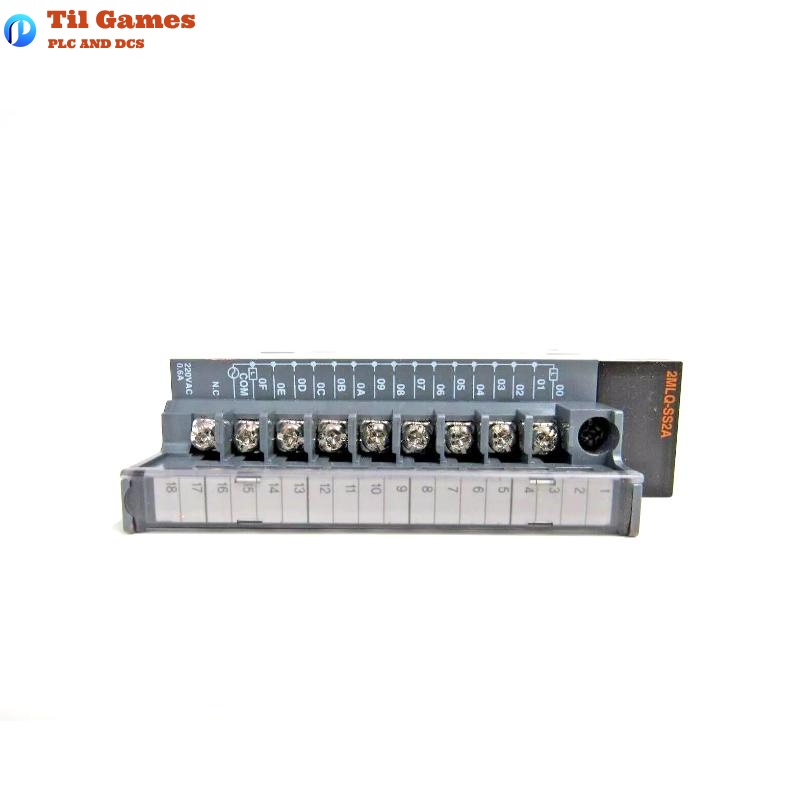

| External Connection | 18-point terminal block (M3 x 6 screw) |
| Dimensions | 114 × 48 × 127 mm |
| Weight | 0.2 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the voltage range supported by the 2MLQ-SS2A-CC module?
A1: It supports AC input voltages from 100V to 240V, with a maximum of 264V.
Q2: What is the maximum current per output point?
A2: Each output can handle up to 0.6A; the maximum per COM is 4A.
Q3: What isolation type does this module use?
A3: It uses photo coupler isolation between signal and power.
Q4: What is the minimum load current requirement?
A4: Minimum load current per output point is 20mA.
Q5: Does the module have surge protection?
A5: Yes, it includes a varistor and a C.R. absorber compliant with IEC 61006-6-2.
Q6: How can I tell if an output is active?
A6: The LED indicator corresponding to each output will turn ON.
Q7: What kind of terminal connection does it use?
A7: It uses an 18-point terminal block with M3 x 6 screws.
Q8: What are the module’s dimensions and weight?
A8: The dimensions are 114 × 48 × 127 mm and it weighs 0.2 kg.
