Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model Number | 51202324‑100 |

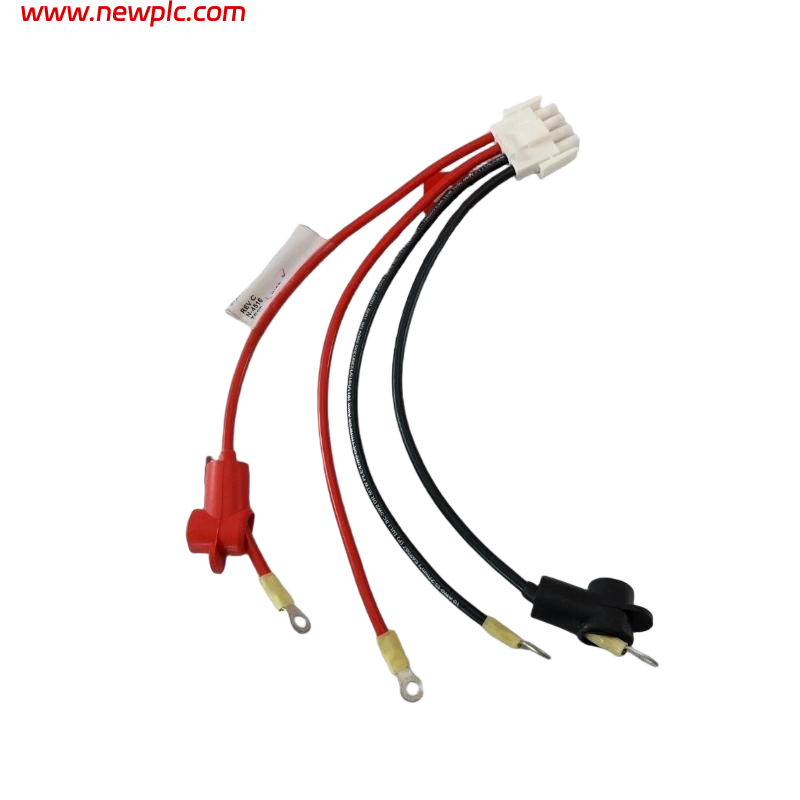

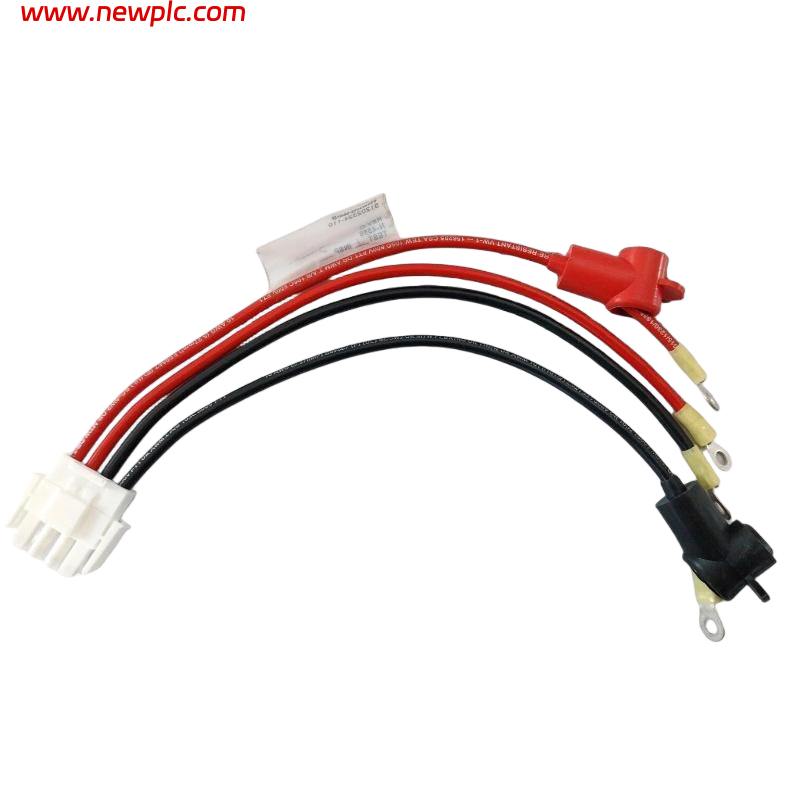

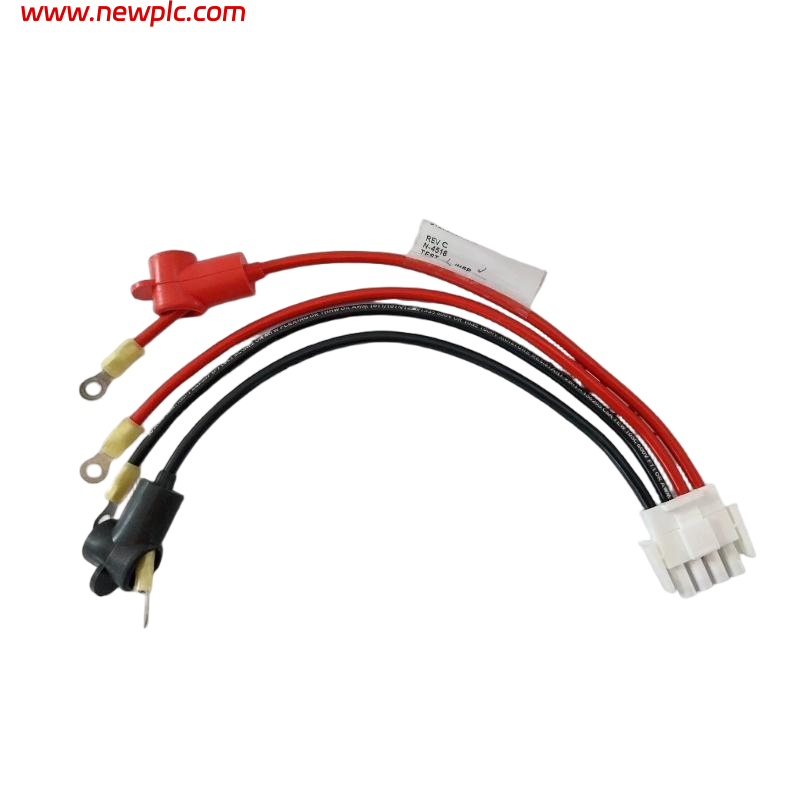

| Product Type | Power Distribution Cable / DC Power Cable for Series C power bus systems (24 V DC) |
| Cable Function | Provides DC power from horizontal power bus to Series C cabinet connectors |
| Typical Application | Used in Honeywell Series C automation power distribution systems |
| Cable Length | Approximately 229 mm (9 inches) (typical for this power cable format) |
| Material | Copper conductors with industrial insulation |
| Insulation | PVC / industrial jacket |
| Rated Voltage | Up to 24 V DC (power bus application) |
| Current Handling | Suitable for distribution of DC power within Series C cabinets |
| Environmental Rating | Industrial grade for cabinet internal use |
| Mounting | Routed inside control cabinet between power bus and connectors |
| Dimensions (Cable) | Approx. 229 mm cable length, typical outer diameter ~6–8 mm |
| Dimensions (Connector Ends) | Each connector assembly approx. 30–40 mm length |
| Weight | Approx. 0.12 kg (typical short power cable assembly) |
| Country of Origin | USA |
FAQ
FAQ
Q1. What is the Honeywell 51202324‑100 used for?
It is a DC power distribution cable used to connect the Series C horizontal power bus to cabinet connectors in Honeywell automation systems.
Q2. How long is the cable itself?
The power cable is about 229 mm (around 9 inches) long.
Q3. What voltage does this cable support?
It carries 24 V DC power in Series C power distribution applications.
Q4. What material is used in the cable’s construction?
It uses copper conductors with industrial insulation and a PVC jacket for protection.
Q5. Is this cable suitable for outdoor use?
No; it is designed for internal use within control cabinets in industrial systems, not for outdoor environments.
Q6. What are the physical dimensions of the finished cable?
The cable length is ~229 mm (~9 in), with an outer diameter around 6–8 mm and connector ends each about 30–40 mm long.
Q7. What typical systems use this cable?
It is used in Honeywell Series C automation systems to route 24 V DC power within the power distribution subsystem.
Q8. How much does the power cable weigh?
The assembled cable weighs around 0.12 kg (about 0.26 lb).
