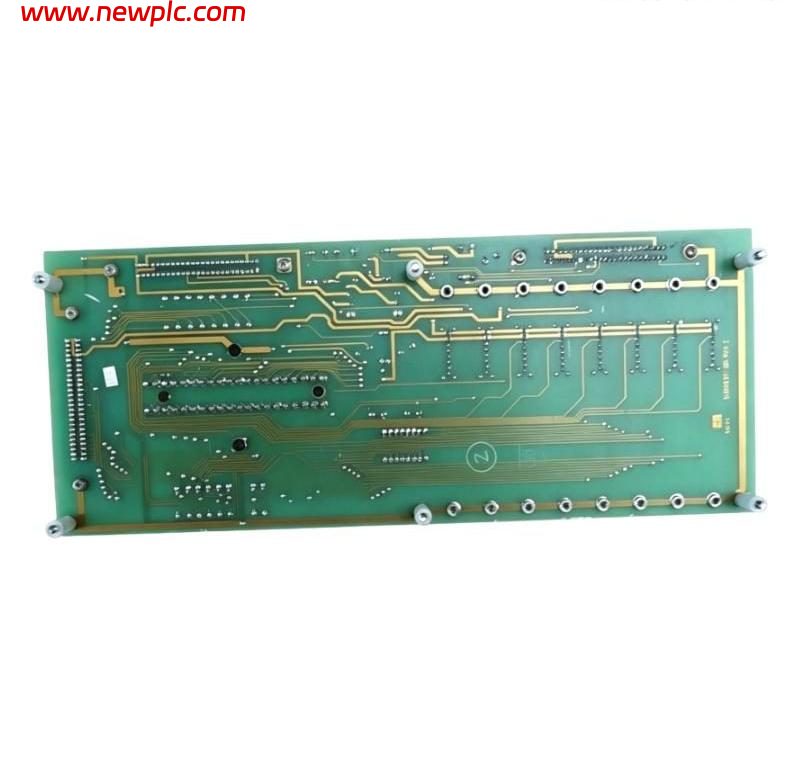

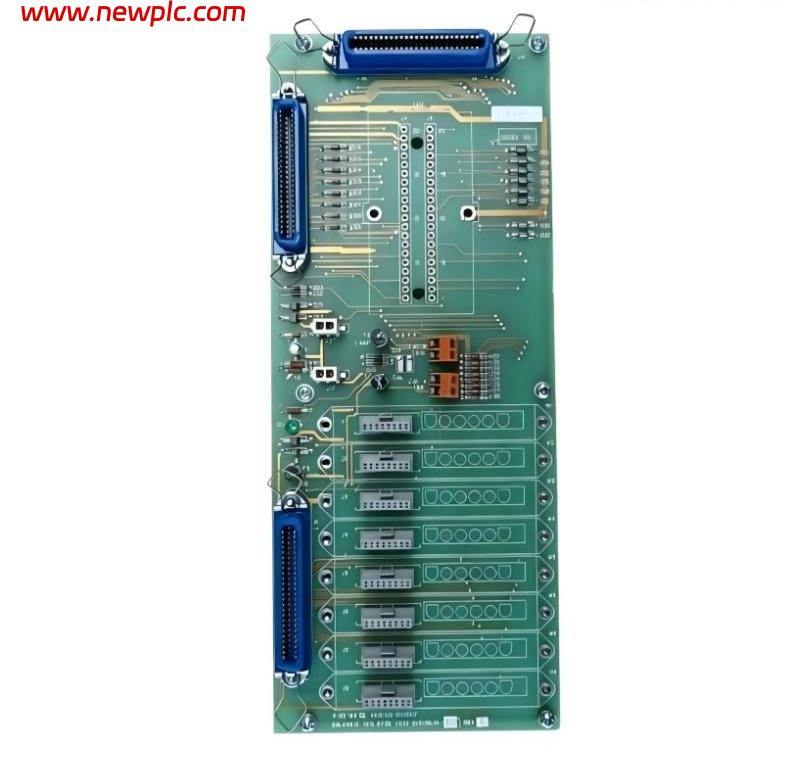

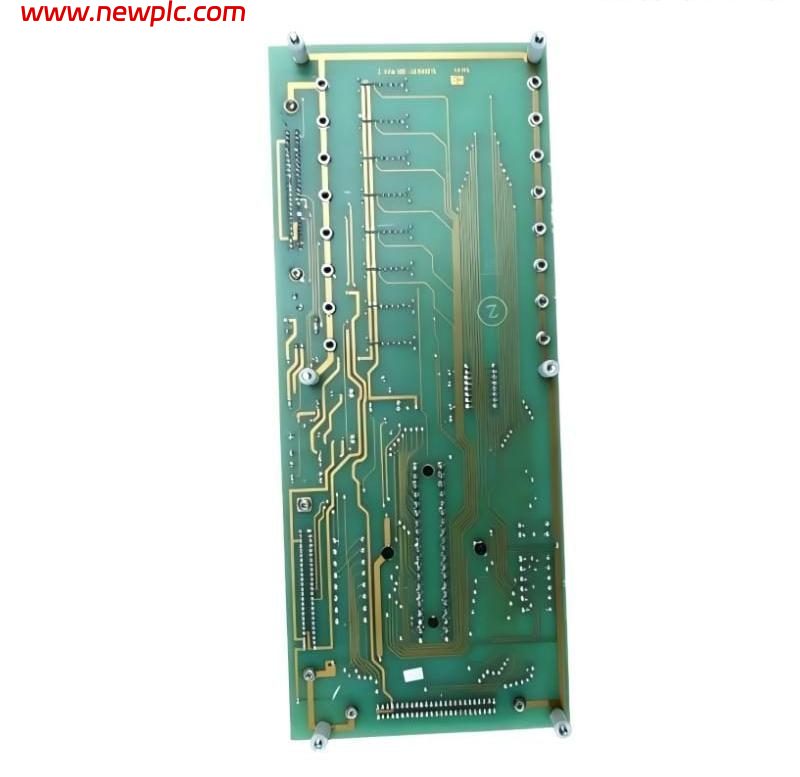

Honeywell 51304638-600 Analog Output Galvanic Isolator

FAQ

Q1: What is Honeywell 51304638-600?
Honeywell 51304638-600 is an analog output galvanic isolator designed for electrical isolation of compatible analog output signal circuits.

Q2: What is the main function of the 51304638-600?
Its main function is to provide galvanic isolation between connected analog signal circuits, helping separate the control-system side from the field side.

Q3: What does galvanic isolation mean?
Galvanic isolation means that two circuits are electrically separated without a direct conductive connection. This can help reduce unwanted electrical interaction between the circuits.

Q4: Where is the 51304638-600 typically used?
It is intended for industrial automation and process-control applications where analog output signals require electrical isolation before being connected to compatible field equipment.

Q5: Is 51304638-600 an analog input module?
No. The 51304638-600 is identified as an Analog Output Galvanic Isolator. It is used with analog output signal paths rather than functioning as a conventional analog input module.

Q6: What are the dimensions and weight of the 51304638-600?
The listed dimensions are 185 × 30 × 116 mm, with a listed product weight of approximately 0.28 kg.

Q7: What is the difference between 51304638-600 and 51304638-650?
The two part numbers belong to the same 51304638 family, but they are associated with different product configurations. The 51304638-600 is identified as an Analog Output Galvanic Isolator, while 51304638-650 is listed as an A/O Galv FTA. Therefore, they should not be treated as direct equivalents without checking the system configuration.

Q8: What should be checked before replacing a 51304638-600?
Verify the complete part number and revision, signal type, wiring, associated FTA/interface hardware, and the requirements of the installed Honeywell control system. A similar-looking module from the same series should not be used as a replacement without confirming compatibility.
