Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model / Part Number | 51403896‑100 |

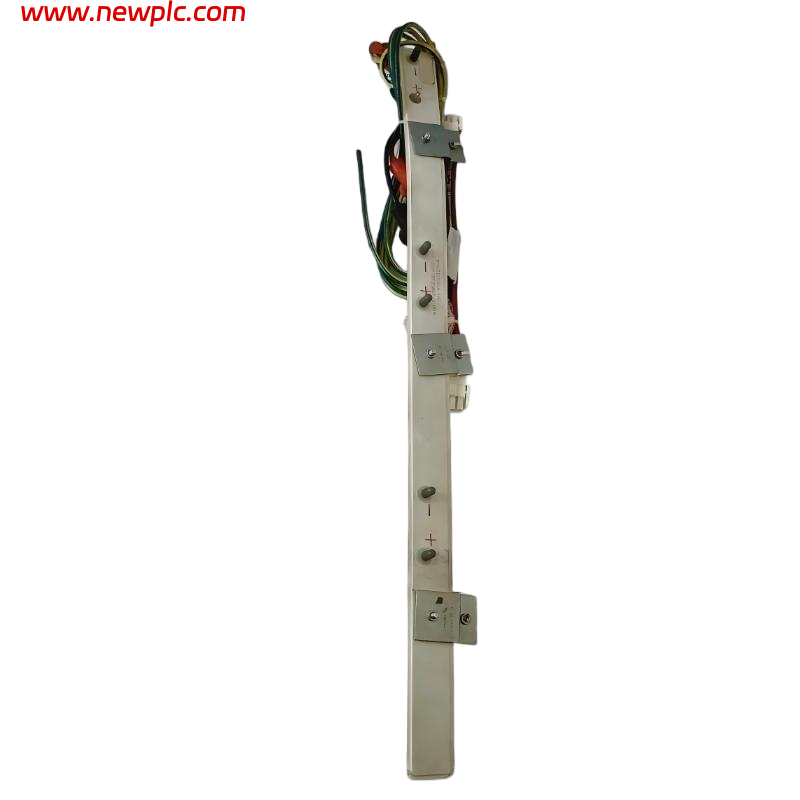

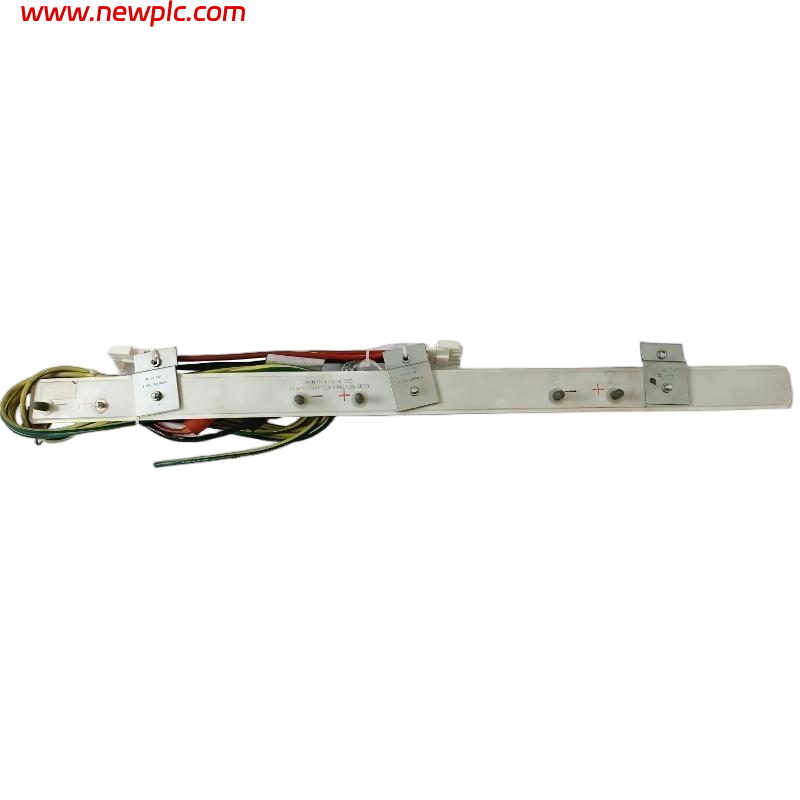

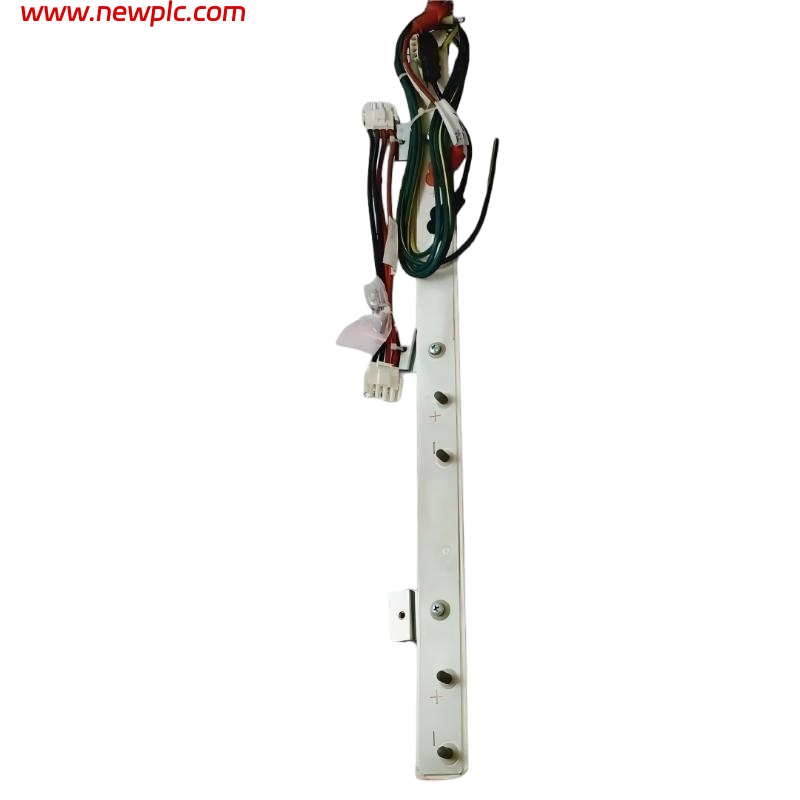

| Product Type | Horizontal DC Power Bus Bar |
| Function | Provides horizontal DC power distribution to modules in Honeywell automation control cabinets (e.g., TDC3000 series). |
| Compatible System | Honeywell TDC3000 control systems and similar modules requiring DC buss power. |
| Material | High‑conductivity metal for reliable DC power distribution. |
| Operating Voltage | Typically 24 V DC system buss. |
| Current Rating | Up to ~20 A depending on configuration. |
| Mounting | Designed for installation inside control cabinets. |
| Environmental Rating | Industrial control cabinet use (indoor). |
| Dimensions (W × H × D) | 300 × 200 × 200 mm (11.8 × 7.9 × 7.9 in) (horizontal bus bar overall size). |
| Net Weight | 2 kg (4.4 lb). |
| Typical Application | Distributes DC power to CCAs and modules within automation control cabinets. |
FAQ
FAQ
Q1: What is the Honeywell 51403896‑100 product?
It is a horizontal DC power bus bar designed to distribute DC power to control modules in Honeywell automation systems such as TDC3000.
Q2: What system is this power bus bar compatible with?
It is mainly compatible with Honeywell TDC3000 control systems and related control cabinet modules.
Q3: What is the primary function of this bus bar?
It provides stable DC power distribution across multiple system modules to ensure reliable operation.
Q4: What is the typical operating voltage and current rating?
The bus bar typically operates on a 24 V DC power buss and can handle up to approximately 20 A depending on configuration.
Q5: What are the physical dimensions of the 51403896‑100?
The power bus bar measures about 300 × 200 × 200 mm (width × height × depth).
Q6: What is the net weight of this bus bar assembly?
The net weight is approximately 2 kg (4.4 lb).
Q7: What material is the bus bar made from?
It is constructed from high‑conductivity metal to efficiently distribute power within control systems.
Q8: Where is this product typically installed?
It is installed inside industrial control cabinets to supply DC power to control cards and modules.
