Technical Specifications
| Item | Specification |
|---|---|

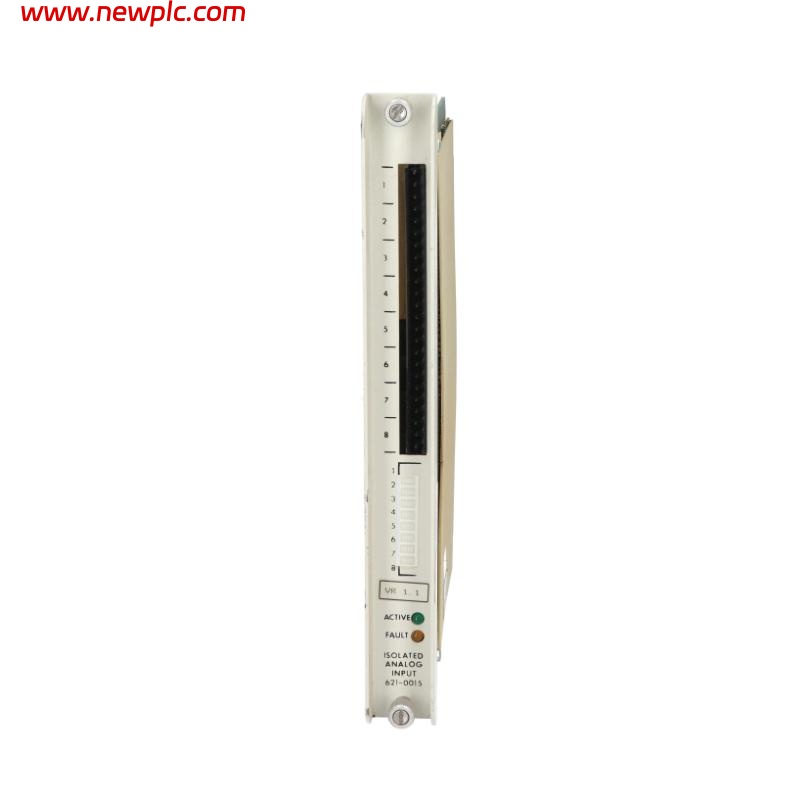

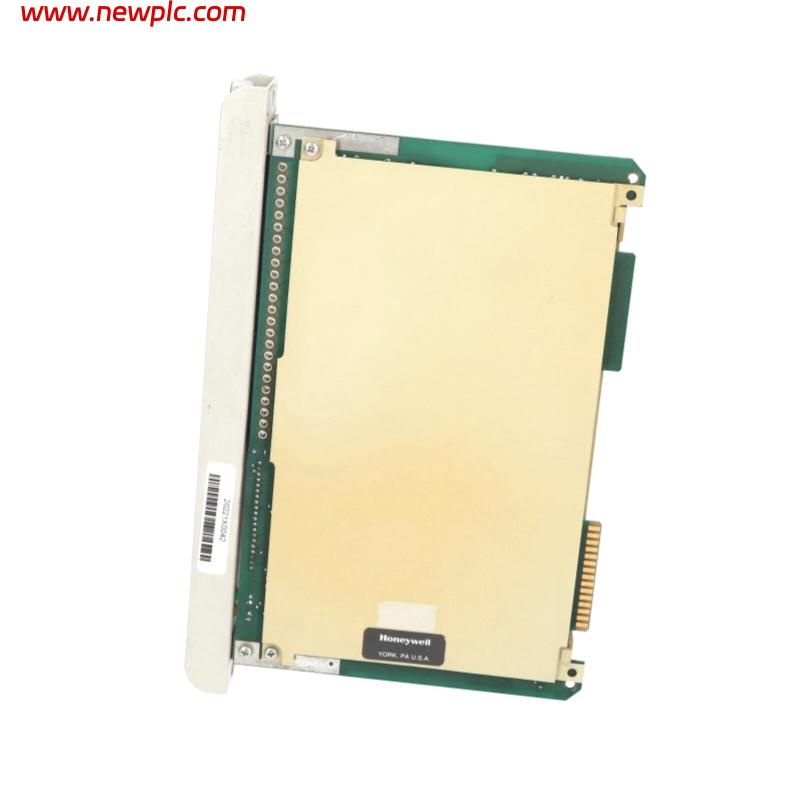

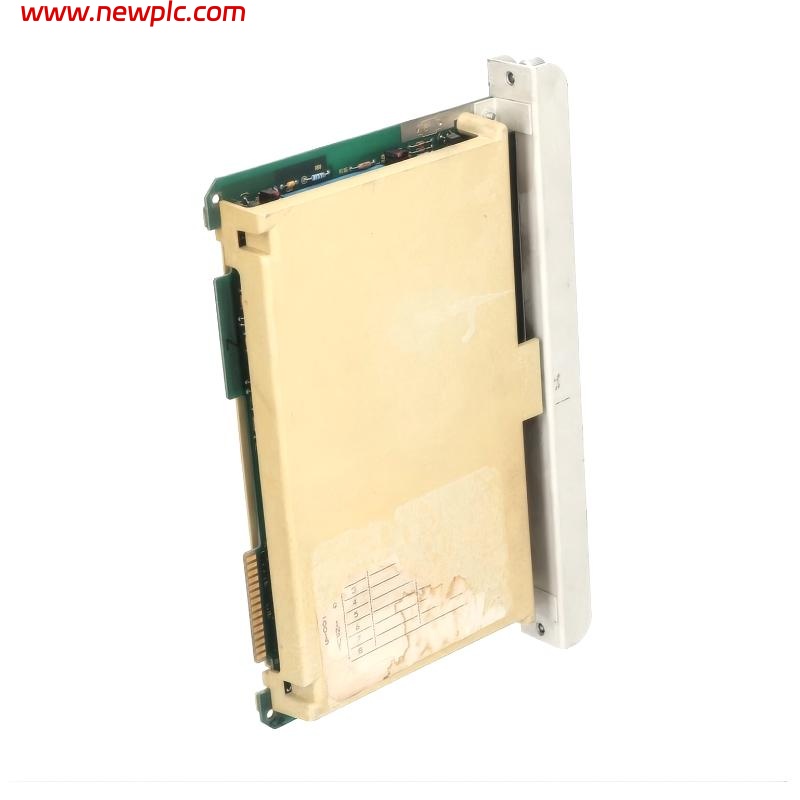

| Product Name | Honeywell 621-0015 Analog Input Module |
| Type | Analog Input Module |
| Function | Receives and converts field analog signals to digital signals |
| Input Type | Current 4–20 mA, Voltage 0–10 V |
| Input Impedance | Current: ≤ 250 Ω; Voltage: ≥ 100 kΩ |
| Resolution | 16-bit ADC |
| Accuracy | ±0.1% FS |
| Channels | 8 Channels |
| Isolation Voltage | 1500 V DC |
| Supply Voltage | 24 V DC ±10% |
| Response Time | ≤ 10 ms |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | –20 °C to 70 °C |
| Relative Humidity | 5% to 95%, non-condensing |
| Mounting | DIN rail or panel mounting |
| Dimensions | 330 x 30 x 130 mm |
| Weight | 0.68 kg |
| Protection Class | IP20 |
FAQ
FAQ
Q1: What is the main application of 621-0015?
It is used to receive field analog signals and convert them into digital signals for the control system.
Q2: What types of analog signals does the module support?
Supports current 4–20 mA and voltage 0–10 V input.
Q3: What is the input accuracy and resolution?
16-bit ADC with ±0.1% FS accuracy.
Q4: How many channels does the module support?
Supports 8 analog input channels.
Q5: What are the power requirements?
24 V DC ±10%.
Q6: What are the operating environment limits?
Operating temperature 0~60 °C, storage temperature –20~70 °C, relative humidity 5%–95% (non-condensing).
Q7: What are the dimensions and weight of the module?
Dimensions: 330 x 30 x 130 mm; weight approx. 0.68 kg.
Q8: Which control systems is this module compatible with?
Compatible with Honeywell general control systems; confirm system compatibility before use.
