Technical Specifications
| Parameter | Specification |
|---|---|

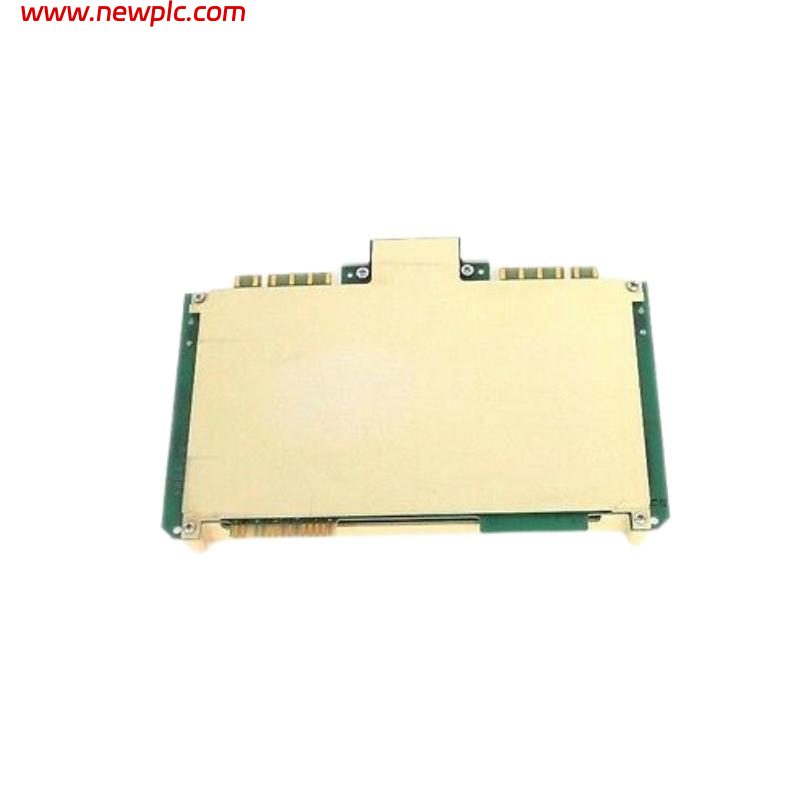

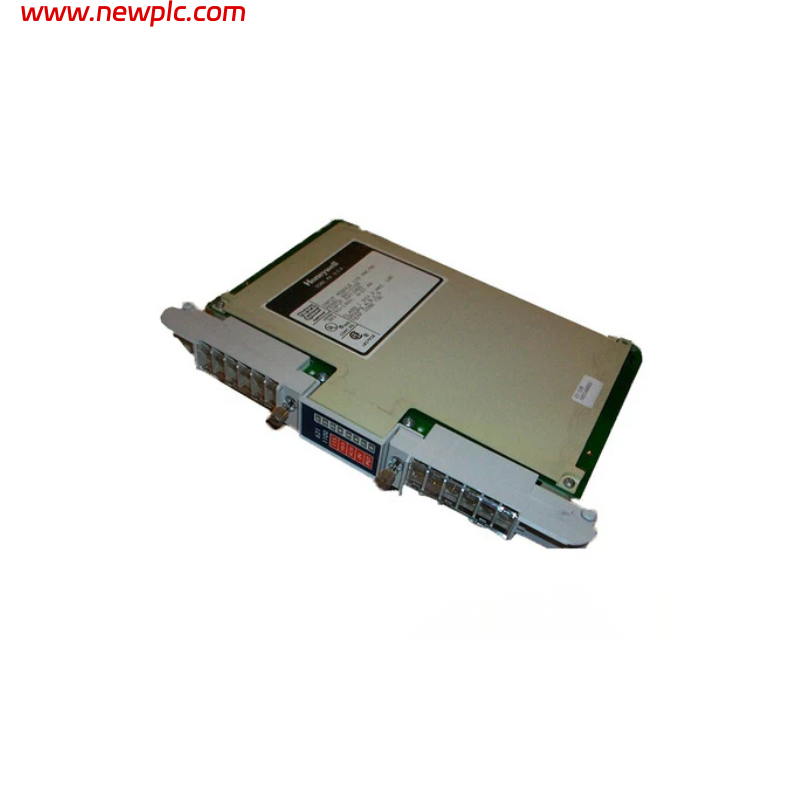

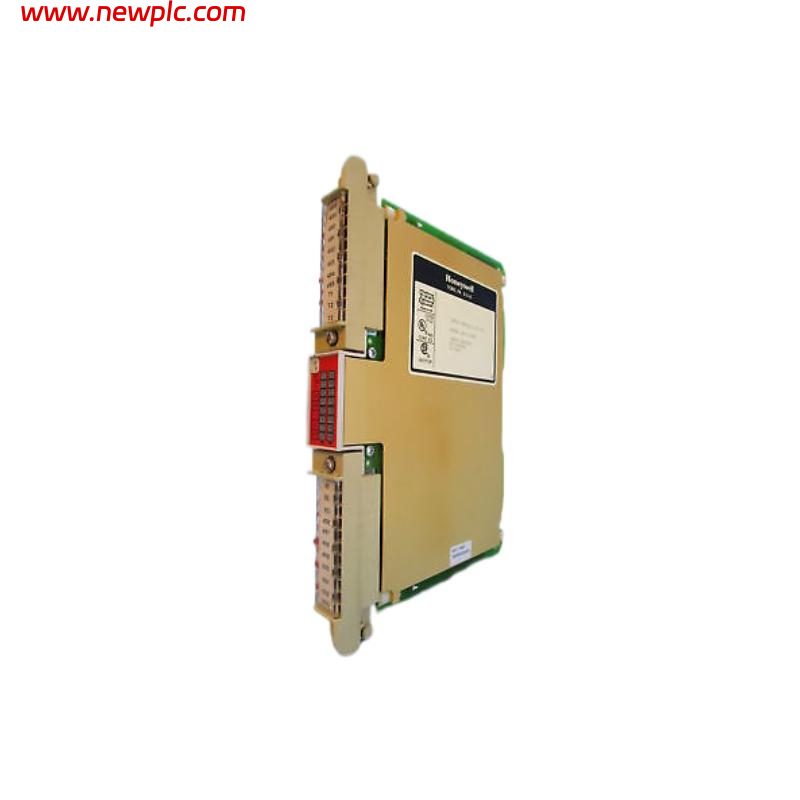

| Product Name | Honeywell 621-1160R |
| Product ID | 621-1160R |
| Manufacturer | Honeywell |
| Product Type | 16-Point AC Digital Input Module (115 VAC) |
| Series | Honeywell IPC 620 / PLC 620 System |
| Function | Provides 16-channel AC digital input acquisition for industrial control and automation systems |
| Input Type | AC digital input |
| Input Channels | 16 points (single common per group depending on configuration) |
| Nominal Input Voltage | 115 VAC |
| Input Voltage Range | 80–140 VAC |
| Frequency | 50/60 Hz |
| Input Signal Logic | ON/OFF threshold detection (logic-based AC input) |
| Input Delay | OFF→ON ~2.4 ms; ON→OFF ~30 ms |
| Leakage Current | ≤ 1.5 mA AC |
| Surge Protection | Up to 500 mA per input |
| Backplane Power | 5 VDC logic power from system rack |
| System Compatibility | Honeywell IPC 620 PLC system |
| Mounting Type | Rack-mounted I/O module |
| Operating Temperature | 0°C to +60°C |
| Application | Industrial automation, machine control, process monitoring, legacy PLC systems |
| Dimensions & Weight | Approx. 240 × 178 × 33 mm; weight approx. 0.27–1.0 kg (varies by condition/vendor) |
FAQ
FAQ
Q1: What is the Honeywell 621-1160R used for?
It is a 16-point AC input module used to read ON/OFF signals from field devices in PLC systems.
Q2: Is it an output or input module?
It is an input module, not an output module.
Q3: What voltage does it accept?
It accepts 115 VAC signals, with a range of 80–140 VAC.
Q4: How many channels does it have?
It has 16 digital input channels.
Q5: What system is it used in?
It is used in the Honeywell IPC 620 PLC system.
Q6: What is the response speed?
Approximately 2.4 ms ON delay and 30 ms OFF delay.
Q7: Is it still in production?
No, it is a legacy/discontinued module commonly found in refurbished markets.
Q8: What should be checked before replacement?
Verify input voltage type (115 VAC), channel count (16-point), rack compatibility, and IPC 620 system version.
