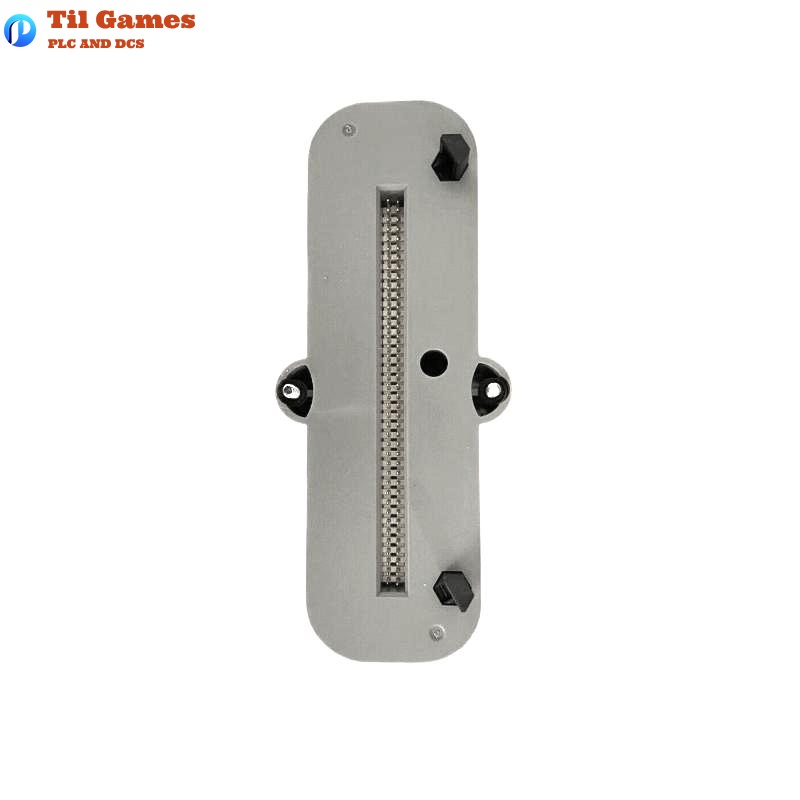

Honeywell 8C-PDIS01 51454360-175 Series 8 Controller Digital Input Sequence of Events Module

Frequently Asked Questions (FAQ)

Q1: How many operating modes does 8C-PDIS01 support?
A1: Three modes are supported: Normal (20ms scan), SOE (1ms timestamp), and Low Latency (5ms scan).

Q2: Can the module detect open-wire faults?
A2: Yes, open wire detection is supported in normal mode to ensure data integrity.

Q3: Is redundancy supported on this module?
A3: Yes, redundancy is supported using compatible IOTAs such as 8C-TDIL11.

Q4: Is the input galvanically isolated?
A4: Yes, optical isolation is used, rated at 1500 VAC RMS or ±1500 VDC.

Q5: Does the module provide non-incendive power supply?
A5: Yes, onboard power is non-incendive and requires no additional marshalling.

Q6: What is the minimum ON input voltage level?
A6: The input must be at least 13 VDC to be recognized as ON; OFF is defined as below 5 VDC.

Q7: What applications is this module suitable for?
A7: It is ideal for time-critical applications such as SOE logging, fault detection, and sequence control.

Q8: What type of wiring does it support?
A8: The module supports standard modular connectors and 2.5 mm² stranded wire for field connections.

51454360-175 8C-PDIS01 Digital Input Sequence of Events Module Honeywell Series 8 Controller
