Technical Specifications
| Parameter | Description |
|---|---|

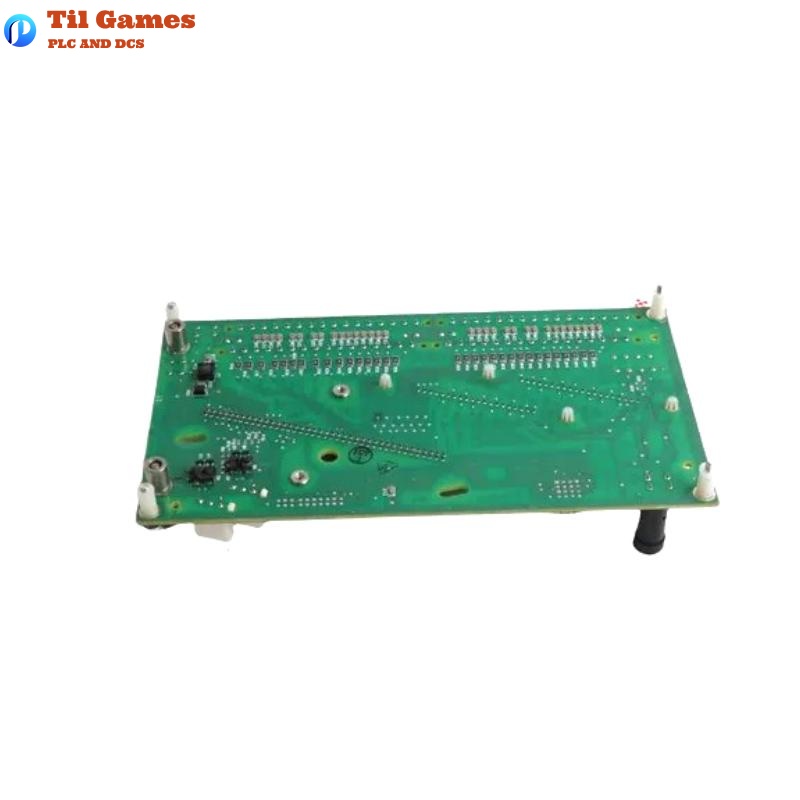

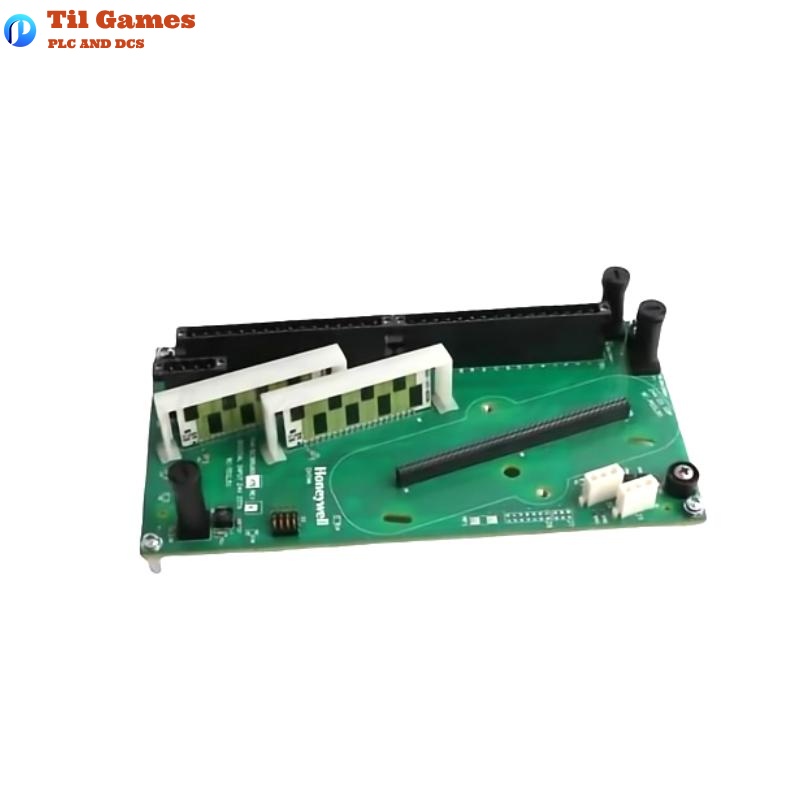

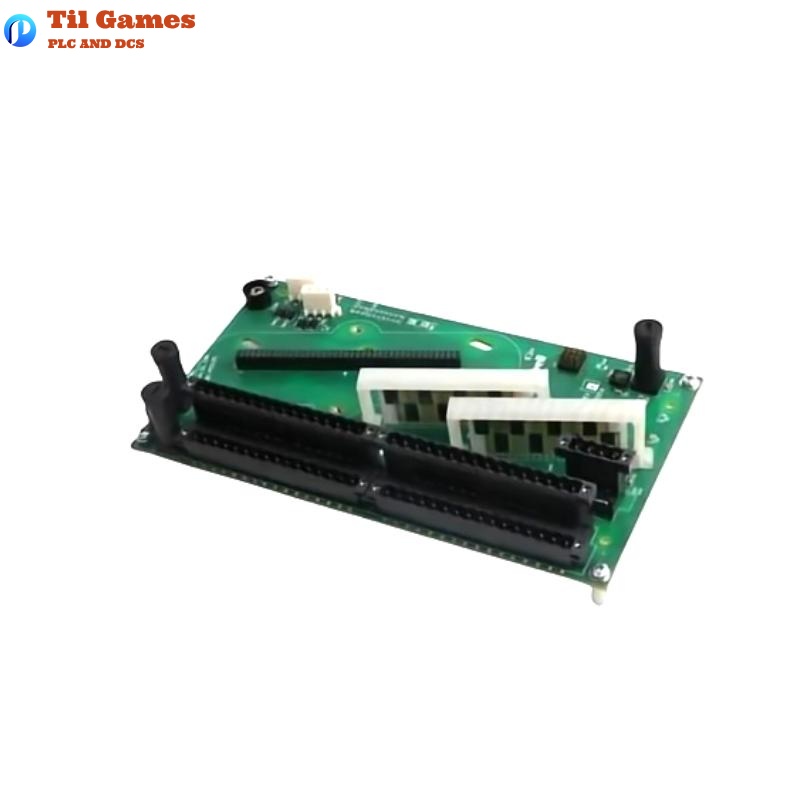

| Module Model | 8C-TAIM01 |
| Type | Low-Level Multiplexed Analog Input (LLMUX) Module |
| Input Type | Thermocouple (TC) and/or Resistance Temperature Detector (RTD) |
| Input Channels | Up to 64 channels, fully isolated, scalable in 16-channel increments |
| Input Scan Rate | 1 second fixed (up to 64 channels/sec max) |
| Channel Bandwidth | 0 – 4.7 Hz (-3 dB) |
| Nominal Input Range (TC) | -20 to +100 mV |
| Max Continuous Input | ±10 V (TC); -1 to +2 V @ 100 mA (RTD) |
| Input Impedance (TC) | 1 MΩ |
| Common Mode Voltage | ±250 VDC or VAC RMS |
| CMRR (50/60Hz) | ≥120 dB (with 1000 ohm source impedance max) |
| Crosstalk (dc to 60Hz) | 80 dB (120 dB at 50 and 60 Hz) |
| Normal Mode Rejection | ≥60 dB |
| Line Frequency Integration | Fixed at 50 Hz or 60 Hz |
| RTD Excitation Current | 1 mA |
| Temperature Stability | ±20 ppm/°C (TC, mV, RTD) |
| Gain Error | Max 0.05% of full scale |
| Long-Term Drift | 500 ppm |
| Open Thermocouple Detect | Supported; ≥1500Ω guaranteed trip |
| Supported Thermocouple Types | J, K, E, T, B, S, R, JAPAN R’ |
| Supported RTD Types | Pt100 (DIN/JIS), Ni120, Cu10, Cu50 |
| Cold Junction Accuracy | ±1.0°C (0 |
| Module Dimensions | 50 × 210 × 120 mm |
| Weight | 0.55 kg |
FAQ
Frequently Asked Questions
Q1: How many temperature input channels are supported?
A1: The module supports up to 64 channels, configured in increments of 16.
Q2: What sensor types are supported?
A2: It supports multiple thermocouple types (J, K, E, T, B, S, R, etc.) and RTDs (Pt100, Ni120, Cu10, Cu50).
Q3: What is the input scan rate of the module?
A3: The scan rate is fixed at 1 second, capable of scanning up to 64 channels per second.
Q4: Does the module support cold junction compensation?
A4: Yes, it includes cold junction compensation to ensure accurate thermocouple readings.
Q5: How does the module detect an open thermocouple?
A5: It includes Open Thermocouple Detection (OTD), triggering when resistance exceeds 1500Ω.
Q6: Is channel-to-channel isolation provided?
A6: Yes, all channels are fully isolated from each other and from the power supply.
Q7: Can different input types be used in the same module?
A7: Yes, the module allows mixed use of TC and RTD channels.
Q8: What are the physical dimensions and weight of the module?
A8: Dimensions are 50 × 210 × 120 mm; weight is 0.55 kg.
