Technical Specifications
| Parameter | Value |
|---|---|

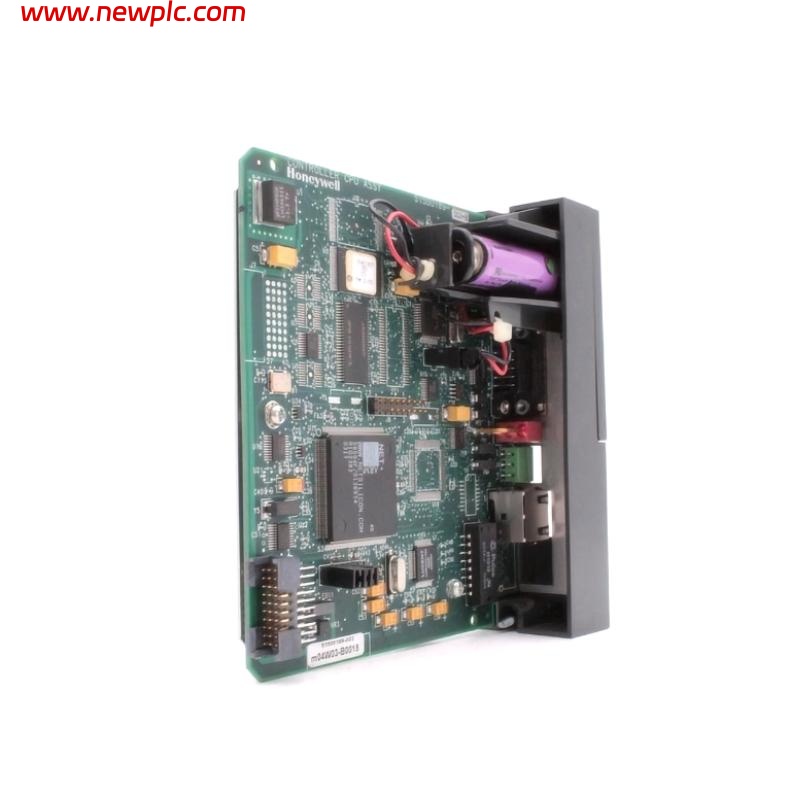

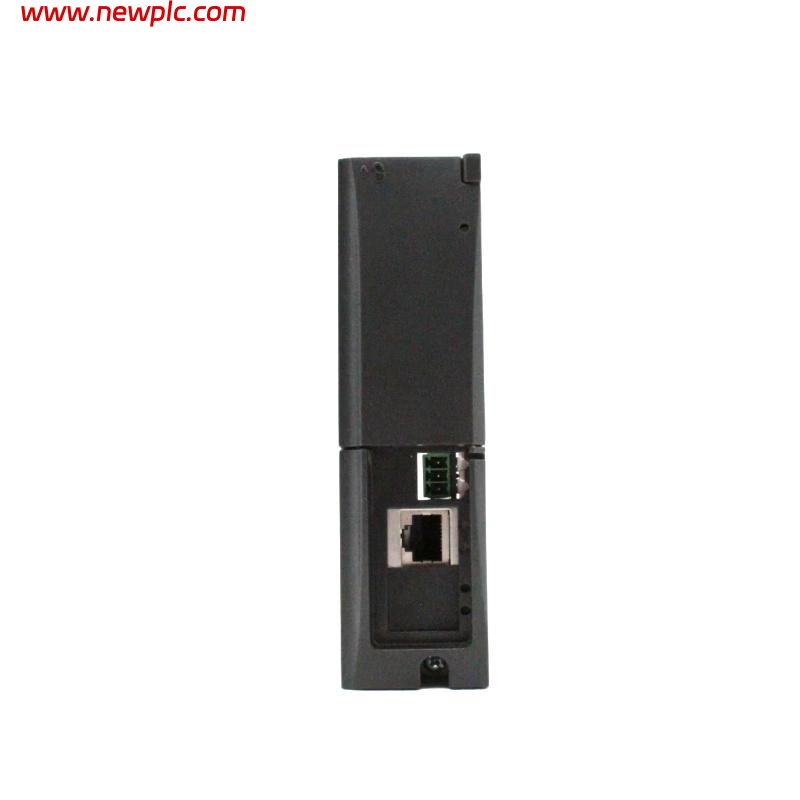

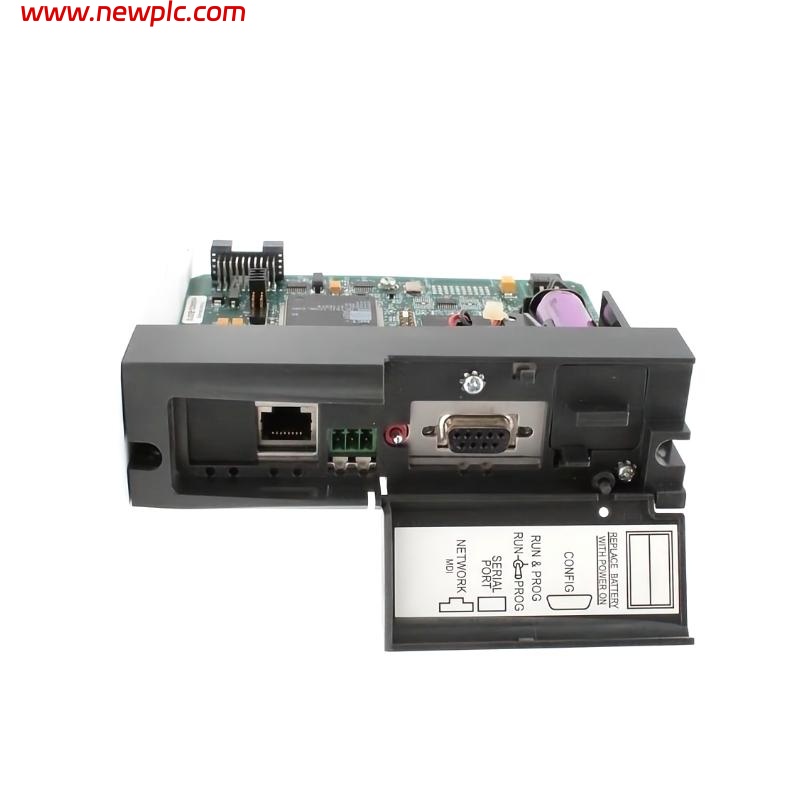

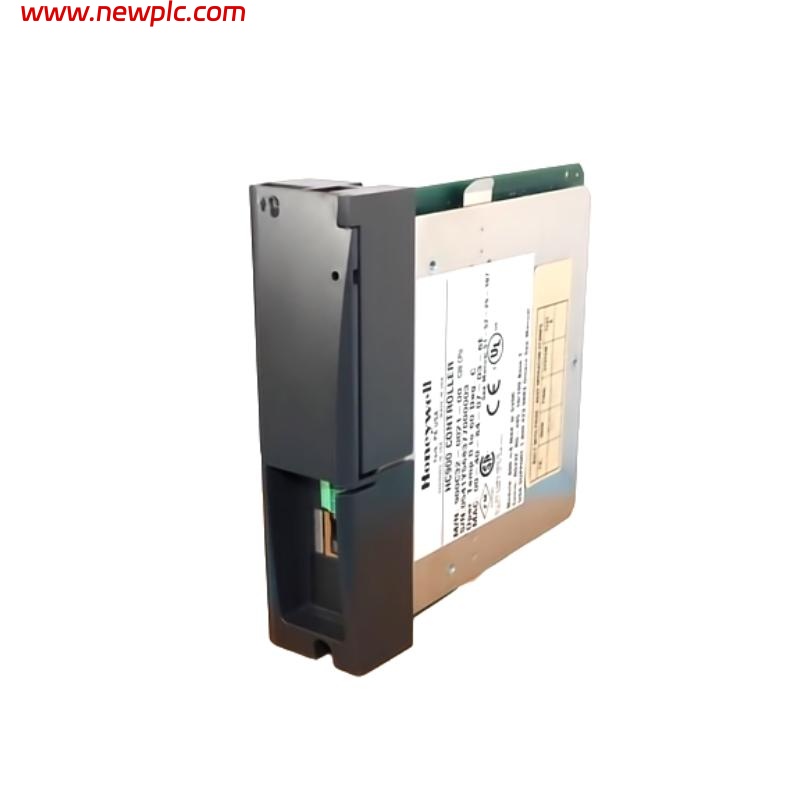

| Product Model | Honeywell 900C32-0021 HC900 C30 Controller CPU |
| Controller Type | C30 CPU Controller |
| Power Supply Voltage | 24 VDC (typical) |
| Power Consumption | 7 W |
| Memory Capacity | 4 MB user memory |
| Communication Interfaces | Ethernet, Serial, Redundant Ports |
| Supported I/O Points | Up to 4000 points |
| Dimensions | 110 x 50 x 125 mm |
| Weight | 0.32 kg |
| Mounting Method | DIN rail mounting |
| Operating Temperature | 0 ~ 60 ℃ |
| Storage Temperature | -40 ~ 85 ℃ |
| Relative Humidity | 5% ~ 95% (non-condensing) |
FAQ
FAQ
Q1: What is the primary function of the 900C32-0021?
A1: It serves as the CPU controller of the HC900 system, handling logic execution, process control, and communication management.
Q2: What is the maximum number of I/O points supported?
A2: It supports up to 4000 I/O points, suitable for medium to large-scale control applications.
Q3: Does the CPU support redundancy?
A3: Yes, it can be paired with another C30 controller to form a redundant system for higher reliability.
Q4: What is the typical operating voltage of the controller?
A4: The module operates with a 24 VDC power supply, ensuring strong noise immunity.
Q5: How is the controller installed?
A5: It is mounted on a DIN rail, making integration into control cabinets straightforward.
Q6: What is the operating temperature range?
A6: The operating range is 0 ~ 60 ℃, suitable for most industrial environments.
Q7: Does the controller include an Ethernet communication port?
A7: Yes, it has a built-in Ethernet port for system communication and remote monitoring.
Q8: What are the weight and dimensions of the module?
A8: The module weighs 0.32 kg and measures 110 x 50 x 125 mm.
