Technical Specifications
| Item | Specification |
|---|---|

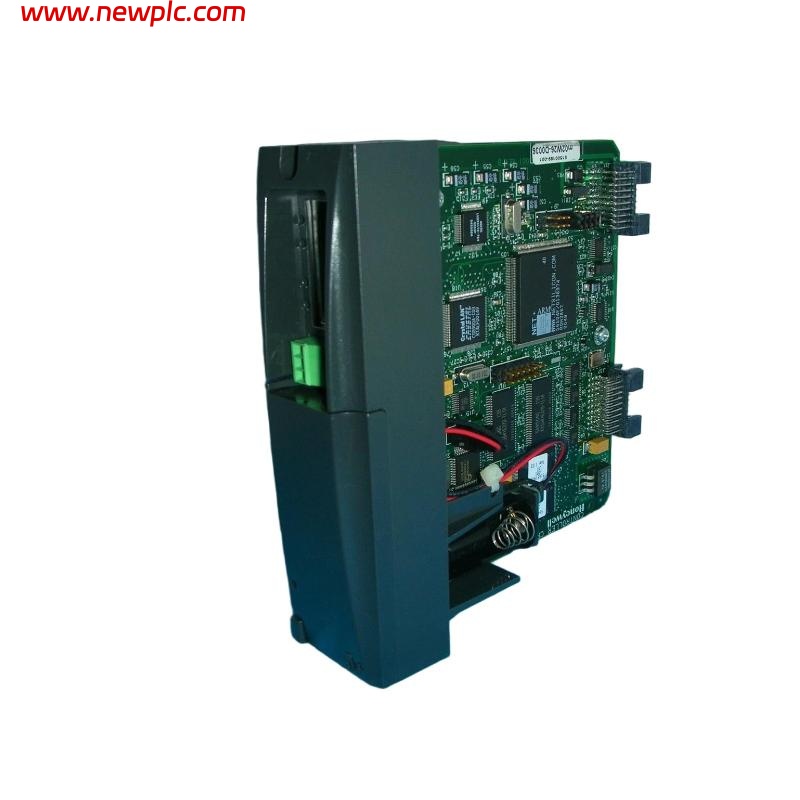

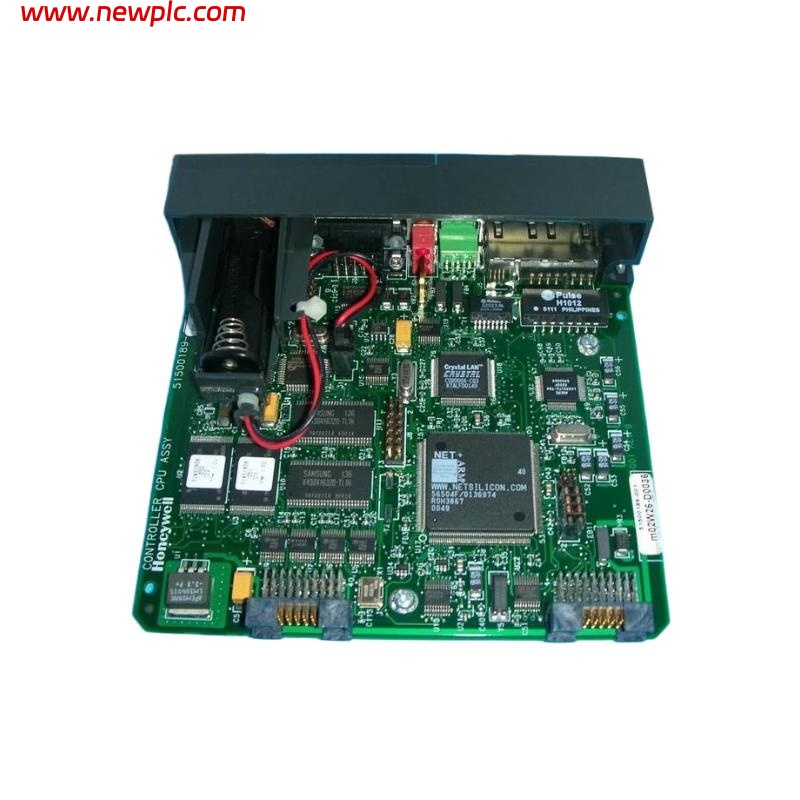

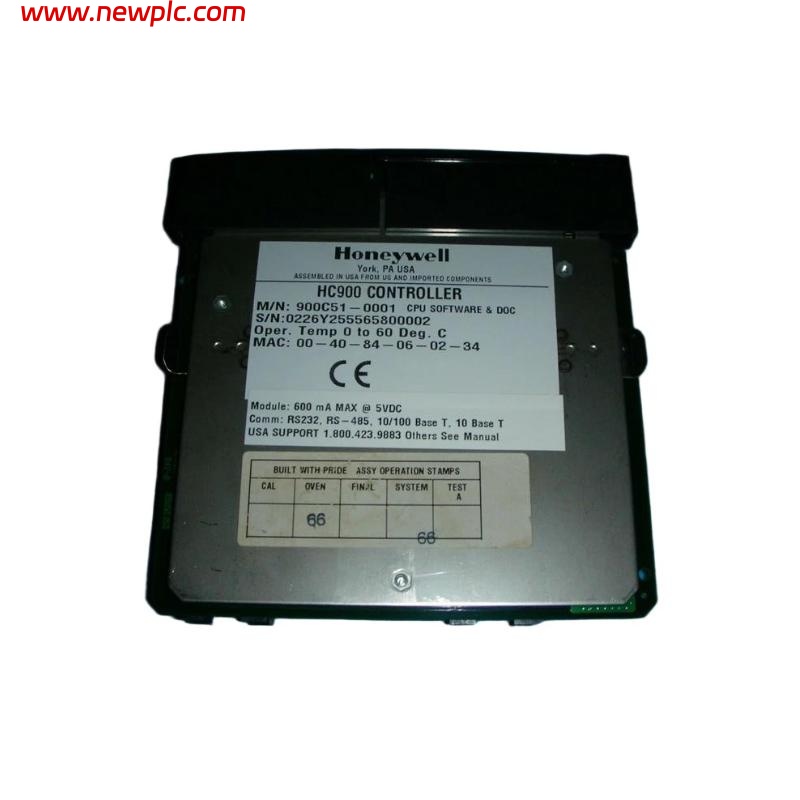

| Product Name | Honeywell 900C51-0001 HC900 C50 Controller CPU |
| Type | Controller CPU Module |
| Control Channels | 32 analog/digital channels (expandable) |
| Processor Type | High-performance embedded processor |
| Memory | 512 MB Flash + 256 MB RAM |
| Communication Interfaces | Modbus RTU/ASCII, Ethernet, CAN |
| Expandability | Supports HC900 series I/O modules |
| Power Input | 24 V DC |
| Power Consumption | 15 W |
| Redundancy | Supports hot-standby control |
| Dimensions | 120 × 100 × 35 mm |
| Weight | 0.8 kg |
| Operating Temperature | 0 to +55 ℃ |
| Storage Temperature | -20 to +70 ℃ |
| Relative Humidity | 10% to 90% non-condensing |
FAQ
FAQ
Q1: What is the main function of the 900C51-0001?
A1: It is the core CPU module of the HC900 C50 controller, responsible for executing logic control and process management.
Q2: How many control channels does the module support?
A2: Supports 32 analog/digital channels, expandable via additional modules.
Q3: What communication interfaces are supported?
A3: Supports Modbus RTU/ASCII, Ethernet, and CAN communication.
Q4: What are the power input and consumption?
A4: Power input is 24 V DC, with a consumption of approximately 15 W.
Q5: Does the module support redundancy?
A5: Yes, it supports hot-standby control for increased system reliability.
Q6: What are the dimensions and weight of the module?
A6: Dimensions are 120 × 100 × 35 mm, and weight is 0.8 kg.
Q7: What is the operating temperature range?
A7: Operating temperature is 0 to +55 ℃, and storage temperature is -20 to +70 ℃.
Q8: Is the module compatible with Honeywell HC900 series control systems?
A8: Yes, it is specifically designed for the HC900 series control systems.
