Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 900G02-0202 |

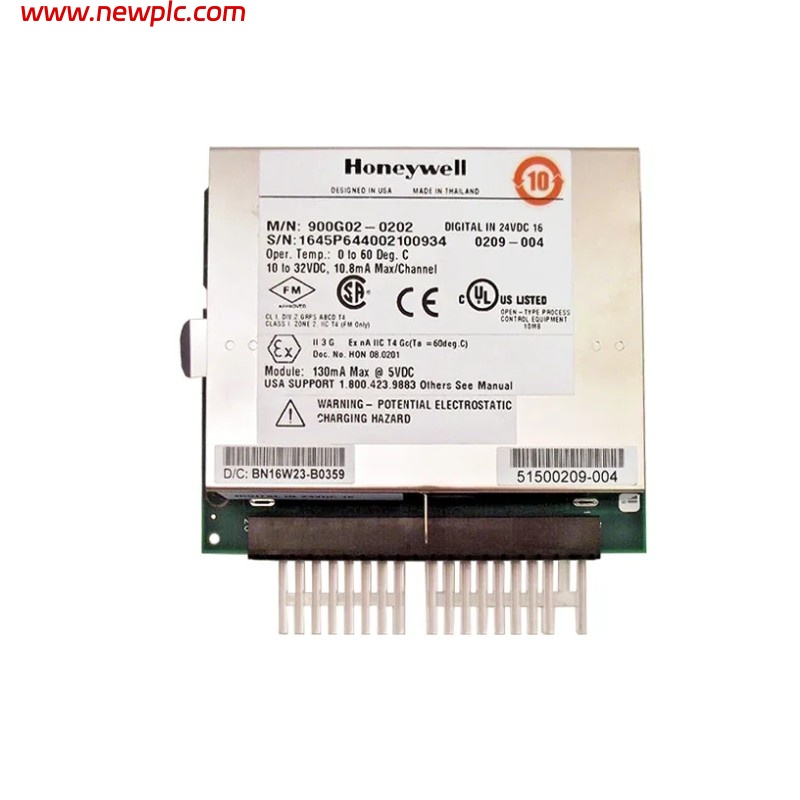

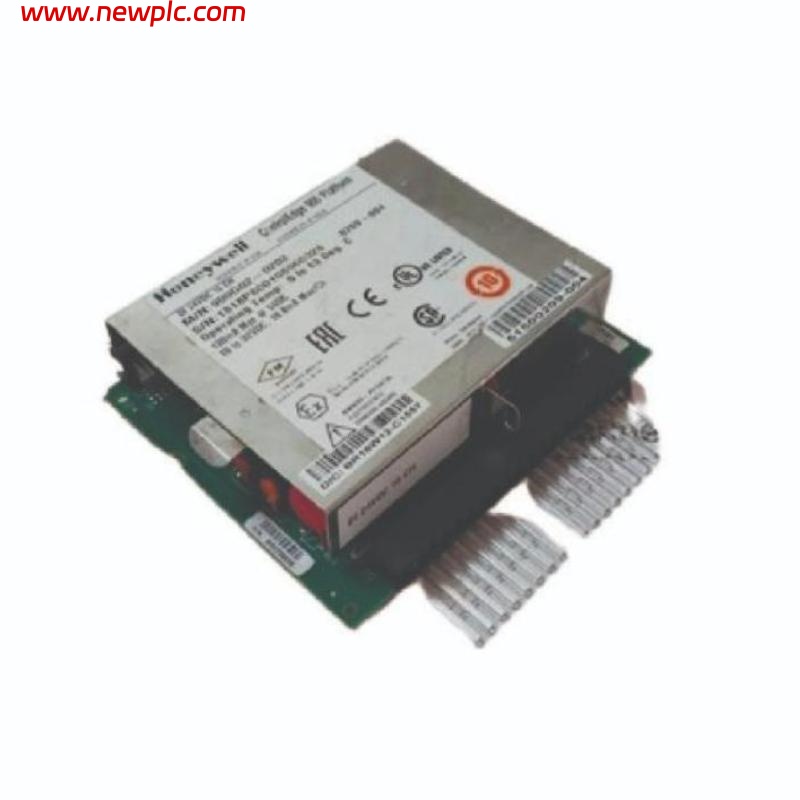

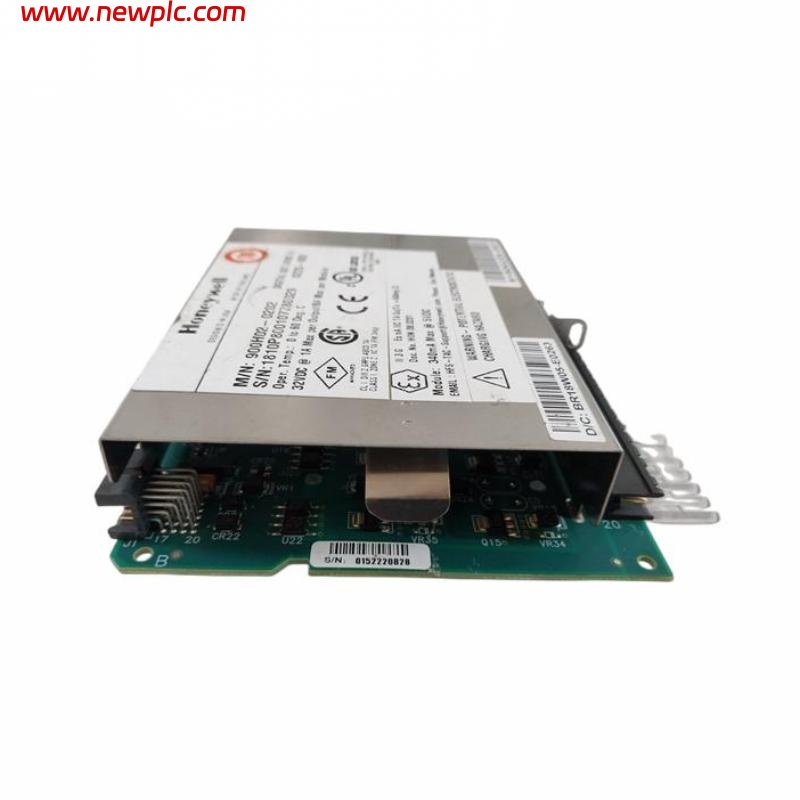

| Product Type | HC900 Digital Input Module |
| Number of Input Channels | 16 channels |
| Input Type | 24 VDC, Dry Contact Input |
| Response Time | ≤10 ms |
| Signal Isolation | Optically Isolated |
| Power Supply | 24 VDC |
| Power Consumption | 2.5 W |
| Communication Interface | HC900 Bus Interface |
| Operating Temperature | -20°C ~ 70°C |
| Storage Temperature | -40°C ~ 85°C |
| Relative Humidity | 5% ~ 95%, non-condensing |
| Dimensions (mm) | 145 × 32 × 120 mm |
| Weight (kg) | 1.36 kg |
| Mounting | DIN Rail / Panel Mount |
FAQ
FAQ
-
Q1: What types of input signals does this module support?
-
A1: It supports 24 VDC and dry contact signals, suitable for standard digital control inputs.
-
-
Q2: What is the module’s response time?
-
A2: The response time is ≤10 ms, suitable for fast control applications.
-
-
Q3: Does the module provide signal isolation?
-
A3: Yes, the inputs are optically isolated to protect the control system from interference.
-
-
Q4: What is the operating temperature range?
-
A4: The module operates reliably from -20°C to 70°C.
-
-
Q5: What are the power requirements?
-
A5: The module operates at 24 VDC with a power consumption of 2.5 W.
-
-
Q6: Does it support DIN rail and panel mounting?
-
A6: Yes, it can be mounted on DIN rails or panels as needed.
-
-
Q7: How does the HC900 system communicate with this module?
-
A7: It communicates via the HC900 bus interface for digital input acquisition.
-
-
Q8: Is the module suitable for high-humidity environments?
-
A8: Yes, it can operate in 5%~95% relative humidity without condensation.
-
