Technical Specifications
| Parameter | Specification |
|---|---|

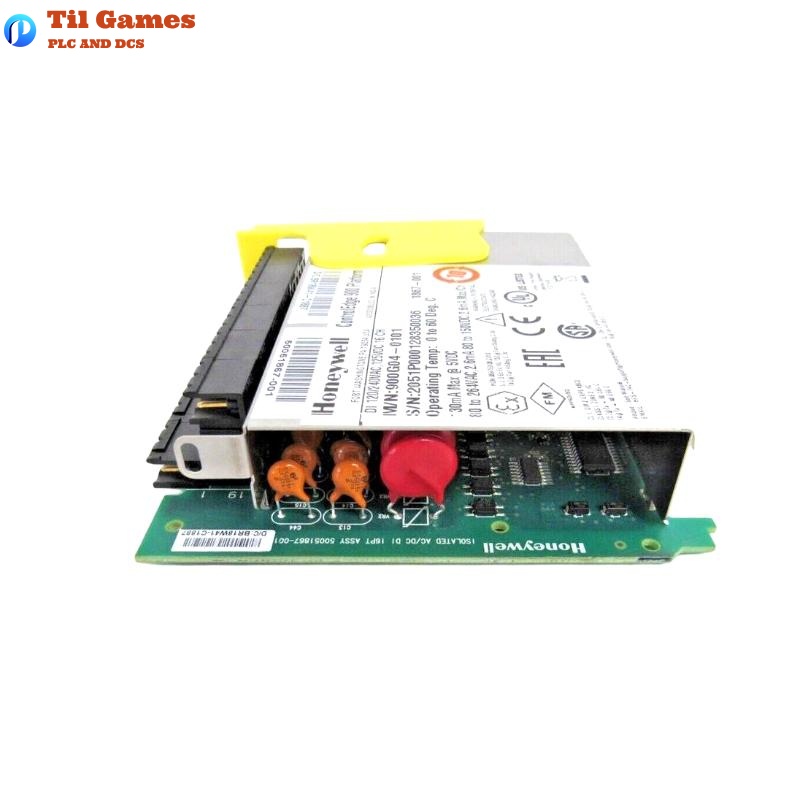

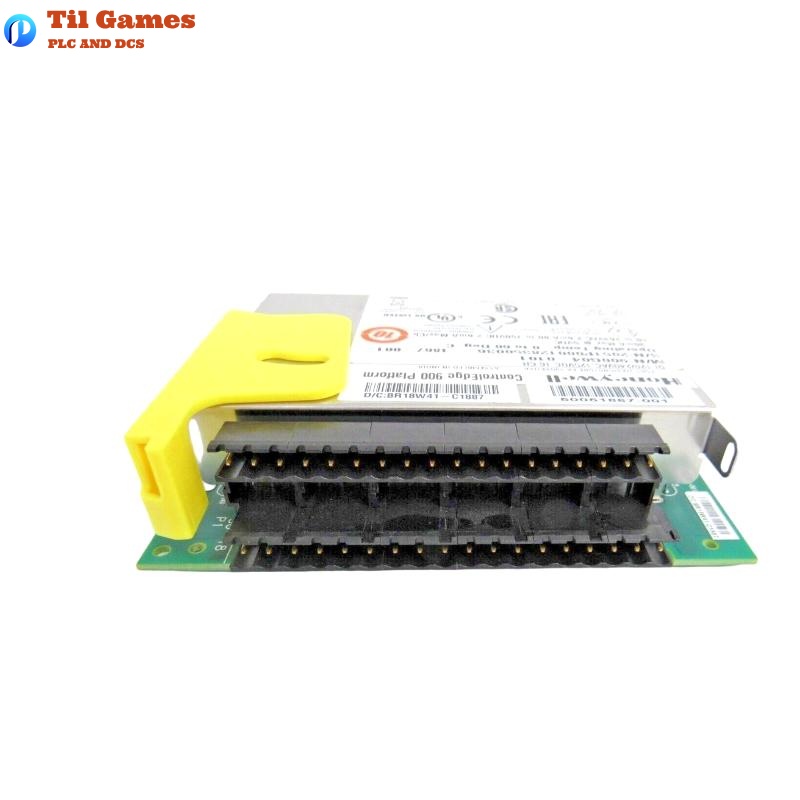

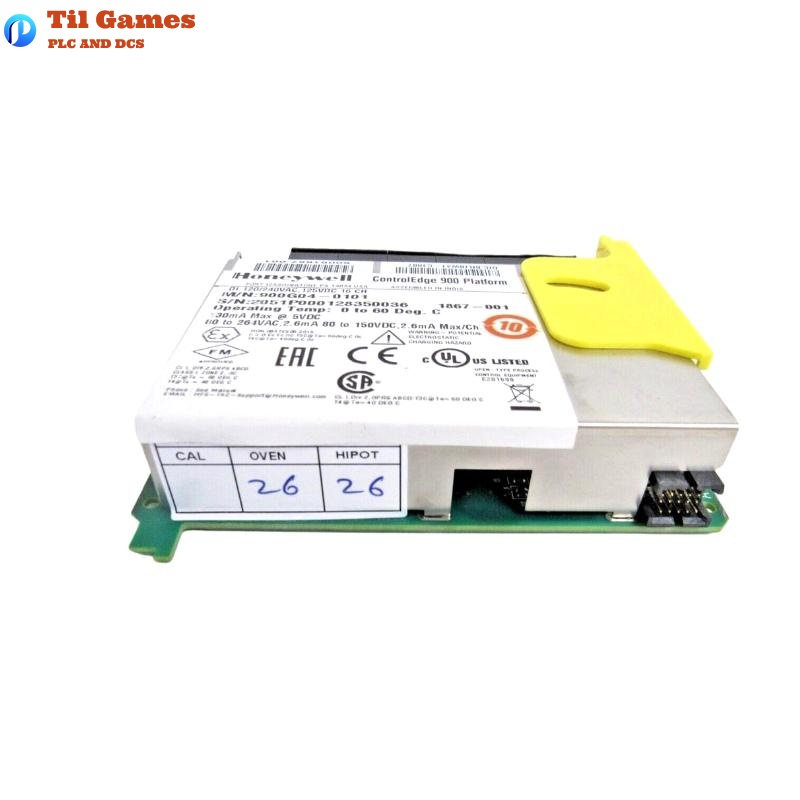

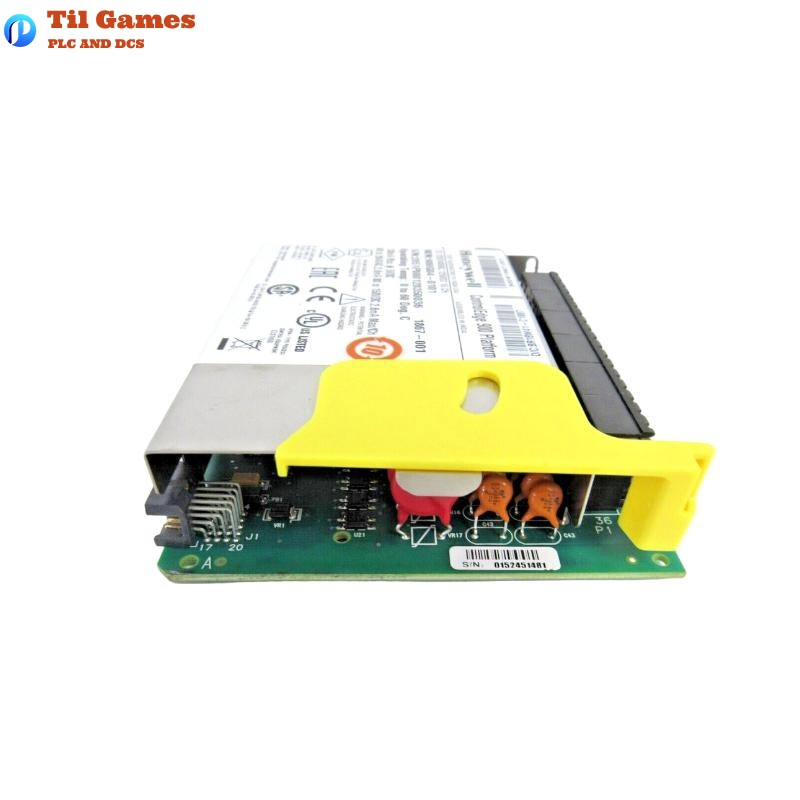

| Product Model | Honeywell 900G04-0101 ControlEdge HC900 Digital Input Module |
| Input Channels | 16 individually isolated channels |
| Input Voltage Range (AC) | 80 to 264 VAC |
| Input Voltage Range (DC) | 80 to 125 VDC |
| Peak Voltage (AC) | 264 VAC |
| Peak Voltage (DC) | 150 VDC |
| Frequency (AC Only) | 47 Hz to 63 Hz |
| ON Voltage Level (AC/DC) | ≥ 75 VAC / VDC |
| OFF Voltage Level (AC) | ≤ 20 VAC |
| OFF Voltage Level (DC) | ≤ 30 VDC |
| Input Impedance | 48 kΩ nominal |
| Input Current (AC 120V) | 1 mA |
| Input Current (AC 240V) | 2 mA |
| Input Current (DC 125V) | 2 mA |
| Minimum ON Current | 0.3 mA |
| Maximum OFF Current | 0.2 mA |
| OFF to ON Response Time | 6 ms + 1.5 line cycles (AC) / 6 ms + 2 line cycles (DC) |
| ON to OFF Response Time | 6 ms + 2 line cycles (AC/DC) |
| Galvanic Isolation | Input-to-input & input-to-chassis: 350 VAC max |
| Power Supply Loading (5V) | 130 mA max |
| Power Supply Loading (24V) | 0 mA |
| Terminal Block | Euro style 36-terminal required |
| Dimensions | 137 x 35.6 x 151.7 mm |
| Weight | 0.4 kg |
FAQ
FAQ
Q1: What types of input signals does this module support?
A1: It supports both AC (80–264VAC) and DC (80–125VDC) input signals.
Q2: Are the input channels electrically isolated?
A2: Yes, each input channel is galvanically isolated from others and from chassis up to 350 VAC.
Q3: What is the response time of the module?
A3: For AC input, OFF to ON is 6 ms + 1.5 line cycles; for DC input, it’s 6 ms + 2 line cycles.
Q4: What is the operating temperature range?
A4: The module operates from 0°C to 60°C, and can be stored from -40°C to 70°C.
Q5: Can this module be inserted or removed under power?
A5: Yes, the module supports hot-swapping without shutting down the controller.
Q6: What kind of terminal block is required for installation?
A6: A 36-position Euro style terminal block is required.
Q7: What is the power consumption of this module?
A7: It draws up to 130 mA from the 5V power supply and does not draw from 24V.
Q8: What are the dimensions and weight of the module?
A8: The dimensions are 137 x 35.6 x 151.7 mm, and the weight is 0.4 kg.
