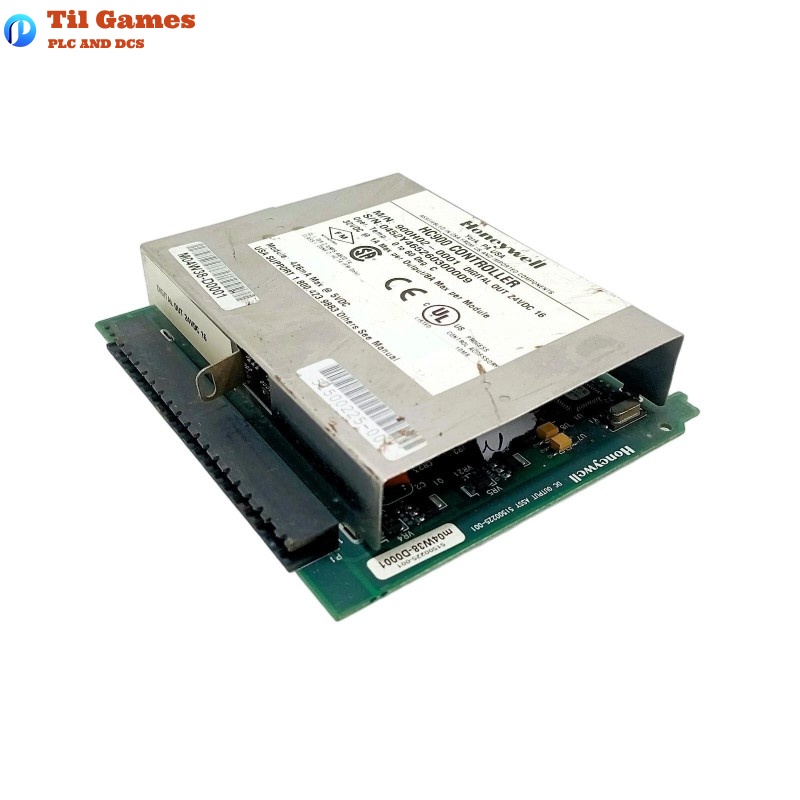

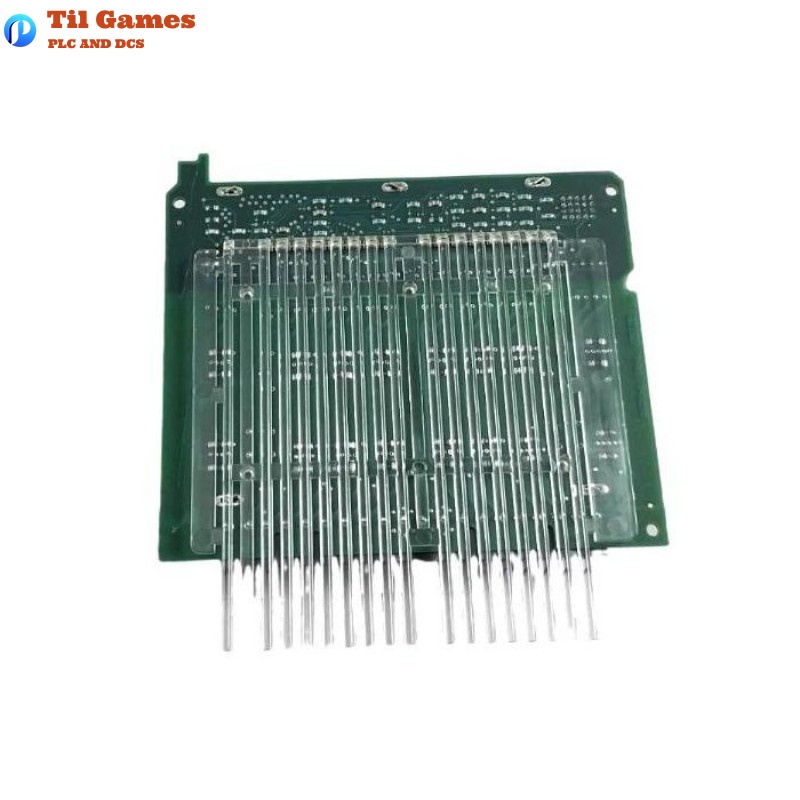

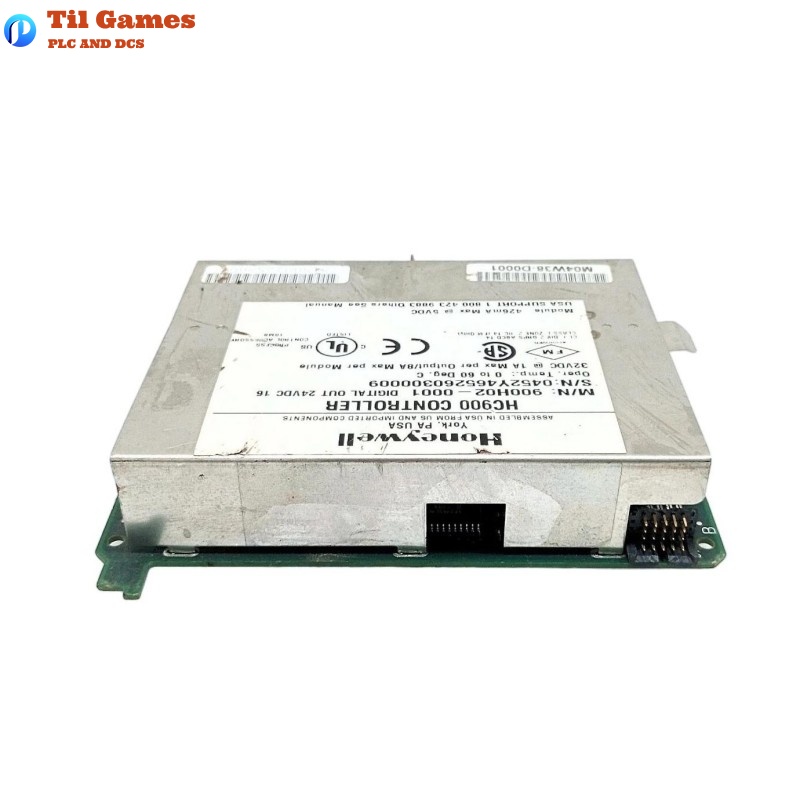

Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Digital Output Module, Current Sinking (Low Side) |
| Output Channels | 16 points, grouped in 2 groups of 8 |
| Output Type | Intelligent Power Switch (IPS) |
| Operating Voltage | 6.5–32 VDC (5.0–6.5V @ <0.5A/channel) |
| Peak Voltage | 34 VDC |
| Max Load Current | 1A per point, 8A total (resistive load); 0.5A for incandescent loads |
| Max Inrush Current | 4A for 10 ms |
| Minimum Load | 0.0 mA |
| ON Voltage Drop | 0.3 VDC @ 1A load |
| Leakage Current | Max 0.15 mA @ 32 VDC |
| Overload Protection | Electronic current/temperature limiting, auto-reset after power cycle |
| Response Time (ON) | 6 ms (excluding controller scan time) |
| Response Time (OFF) | 6 ms (excluding controller scan time) |
| Power Supply Loading | 5V: 340 mA max; 24V: 0 mA |
| Galvanic Isolation | 2 groups of 8 outputs each |
| Dimensions (H x W x D) | 137 x 35.6 x 137.16 mm |
| Weight | 0.425 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of output does this module support?
A1: It provides 16 low-side (current sinking) digital outputs, powered externally.
Q2: What is the maximum current per output point?
A2: Each output supports up to 1A (resistive load), and the total per module is 8A. For incandescent loads, it’s 0.5A per point.
Q3: Does the module include overload protection?
A3: Yes, each output channel includes built-in electronic overload and thermal protection, which resets after cycling power.
Q4: Will the output status be retained after power loss?
A4: No, the module resets upon power loss. Outputs assume the user-defined failsafe state if communication is lost.
Q5: Is hot-swapping of this module supported?
A5: Yes, the module supports insertion/removal under power. However, field wiring must be disconnected first.
Q6: How is galvanic isolation structured?
A6: Outputs are arranged in 2 isolated groups of 8, enhancing system safety and reliability.
Q7: What types of loads is this module suitable for?
A7: Suitable for DC resistive loads, relays, indicator lamps, and small DC motors — ideal for low-to-medium control needs.
Q8: What is the recommended mounting method?
A8: It is designed for 35mm DIN rail mounting for integration into industrial enclosures or control racks.
