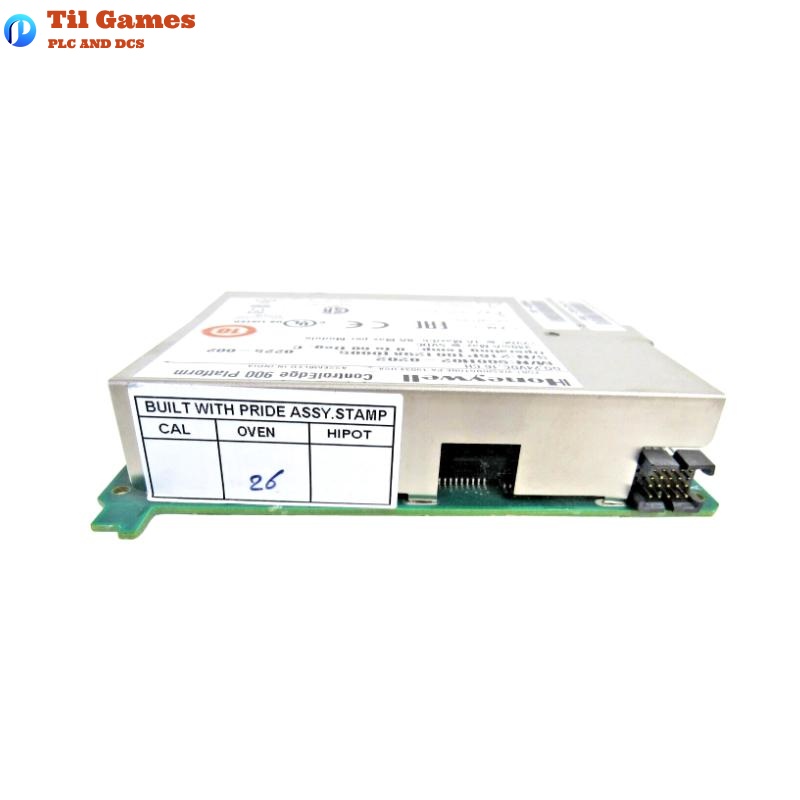

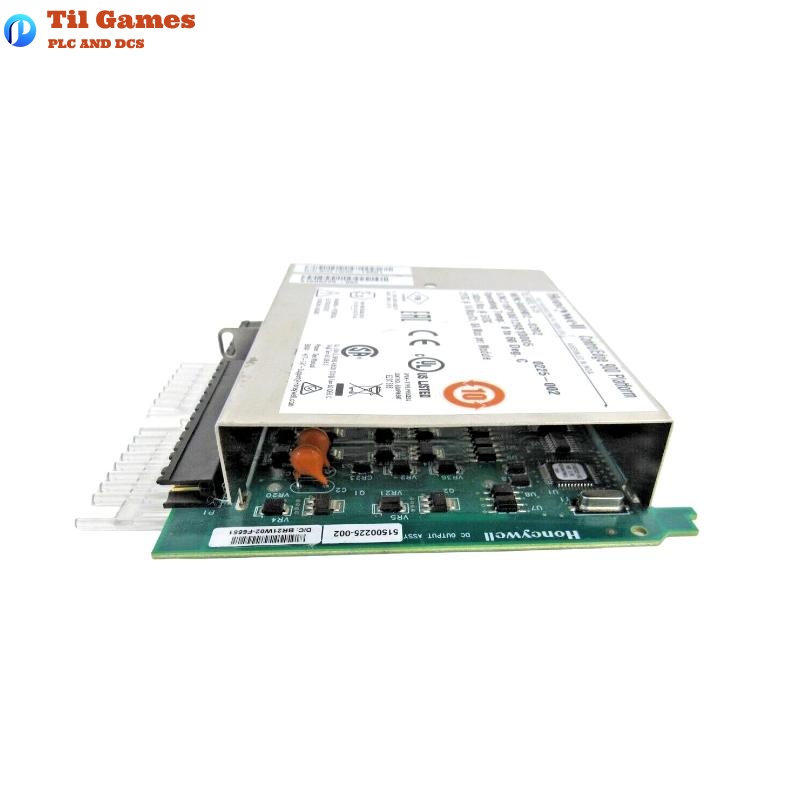

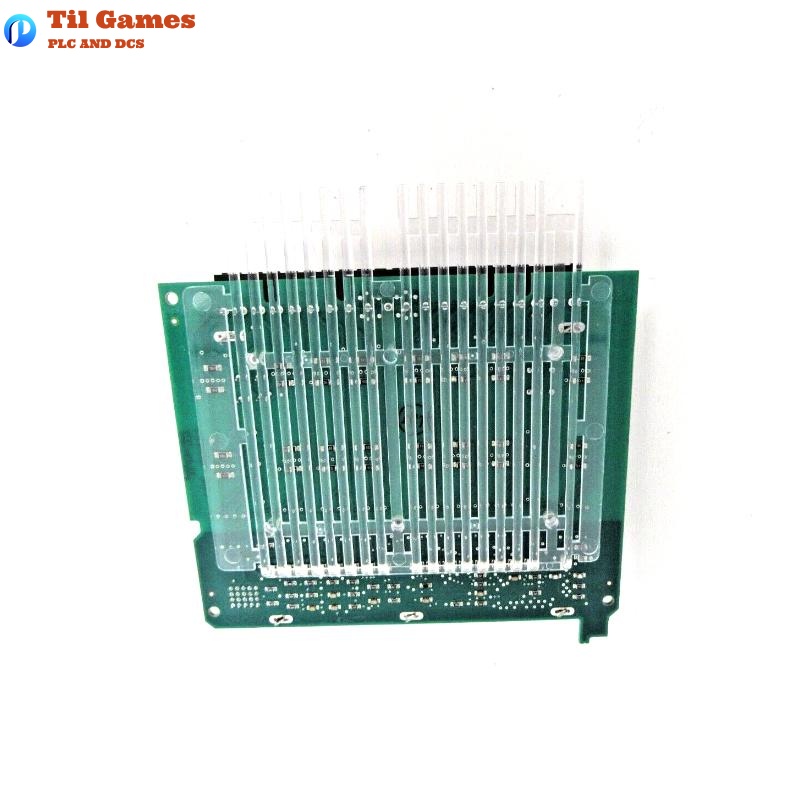

Technical Specifications
| Item | Specification |
|---|---|
| Module Type | Digital Output Module (DC Type) |
| Model Number | 900H02-0202 |
| Output Channels | 16 channels in 2 groups of 8 |
| Output Type | Current sinking (low-side switching) |
| Operating Voltage | 6.5 to 32 VDC (5.0–6.5 V @ <0.5A/point) |
| Peak Voltage | 34 VDC |
| AC Frequency | Not applicable |
| Max Load Current/Point | 1 A (resistive), 0.5 A (lamp load) |
| Max Load Current/Module | 8 A (resistive load) |
| Max Inrush Current | 4 A for 10 ms |
| Minimum Load | 0.0 mA |
| Leakage Current | Max 0.15 mA @ 32 VDC |
| ON Voltage Drop | Max 0.3 VDC @ 1 A load |
| Output Protection | Electronic overcurrent & overtemp limiting |
| Fusing | Electronic limiting (no physical fuse) |
| OFF to ON Response Time | Max 6 ms |
| ON to OFF Response Time | Max 6 ms |
| Power Consumption | 5V: max 340 mA; 24V: 0 mA |
| Galvanic Isolation | 2 groups of 8; isolated from logic |
| Module Dimensions | 137 × 35.6 × 137.16 mm |
| Module Weight | 0.425 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many digital outputs does the 900H02-0202 module support?
A1: It supports 16 digital outputs, arranged in two groups of 8.
Q2: Is the output type sourcing or sinking?
A2: The module uses sinking outputs (low-side switching).
Q3: Does the module have built-in output protection?
A3: Yes. It includes electronic protection for overcurrent and overtemperature, which auto-resets after cycling power.
Q4: What is the maximum current per output channel?
A4: Each output channel supports up to 1 A (resistive load).
Q5: What is the acceptable operating voltage range?
A5: The operating voltage range is from 6.5 VDC to 32 VDC.
Q6: Are external fuses required?
A6: No. The module includes electronic limiting and does not require external fuses.
Q7: What is the response time of the outputs?
A7: Both OFF-to-ON and ON-to-OFF response times are up to 6 ms.
Q8: What are the module’s physical dimensions?
A8: The dimensions are 137 mm (H) × 35.6 mm (W) × 137.16 mm (D), with a weight of 0.425 kg.
