Technical Specifications
| Parameter | Specification |
|---|---|

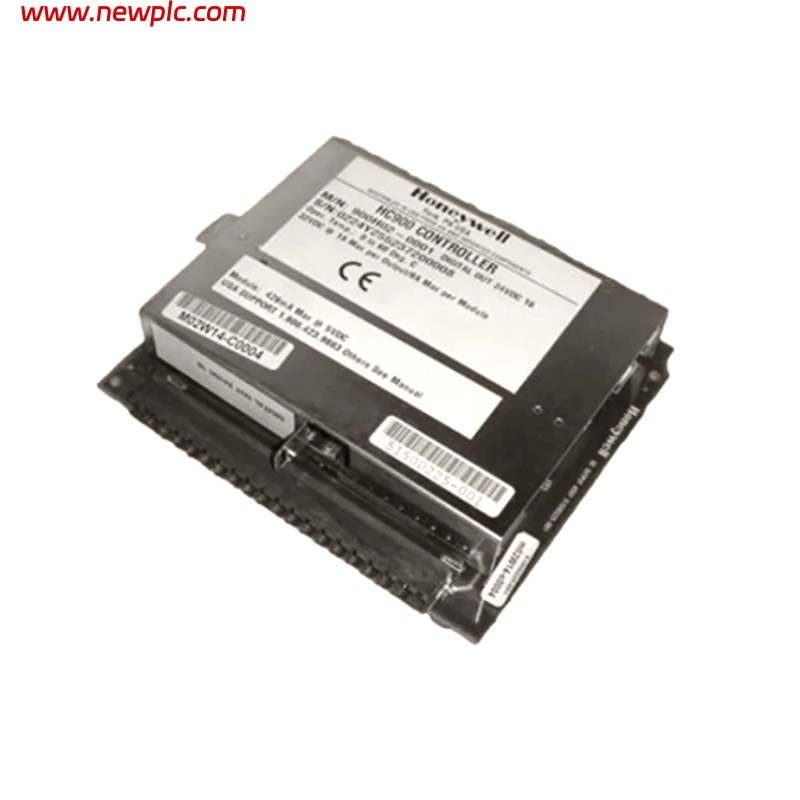

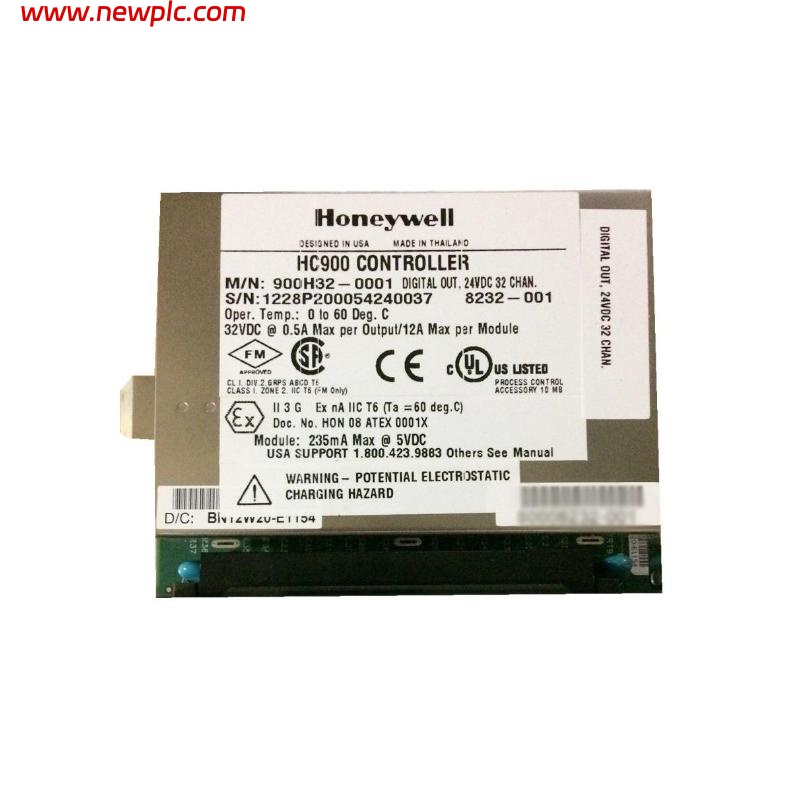

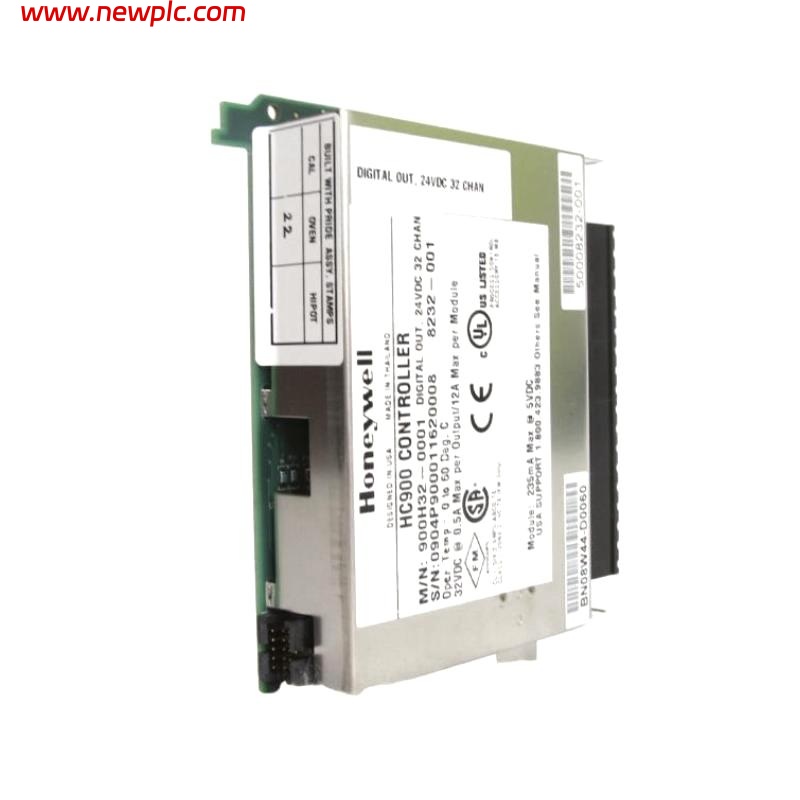

| Module Type | HC900 32-Point Digital Output Module |
| Points | 32 Digital Outputs |
| Output Type | Relay / Solid State Options |
| Voltage Range | 24 VDC / 120 VAC / 230 VAC (depending on model) |
| Current Rating per Point | 2 A (max) |
| Response Time | <10 ms |
| Isolation | Optically Isolated |
| Mounting | DIN Rail or Panel Mounting |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (mm) | 137 x 35.6 x 151.7 mm |
| Weight (kg) | 0.408 kg |
| Certification | CE, UL |
FAQ
FAQ
-
Q1: What types of loads can this module drive?
A1: It can drive resistive, inductive, or lamp loads depending on the output type selected. -
Q2: Can the module outputs be expanded for more points?
A2: Yes, multiple modules can be linked to increase total output points in the HC900 system. -
Q3: What is the typical response time for digital outputs?
A3: The response time is generally less than 10 milliseconds. -
Q4: How is the module mounted in a control panel?
A4: It can be mounted using standard DIN rails or directly on a panel with screws. -
Q5: Is electrical isolation provided for the outputs?
A5: Yes, the outputs are optically isolated from the control circuitry. -
Q6: What is the maximum current per output point?
A6: The maximum rated current is 2 A per point. -
Q7: Can this module operate in high-temperature environments?
A7: It is designed to operate reliably from -20°C to 60°C. -
Q8: Are there any international certifications for this module?
A8: Yes, it carries CE and UL certifications.
