Technical Specifications
| Parameter | Specification |
|---|---|

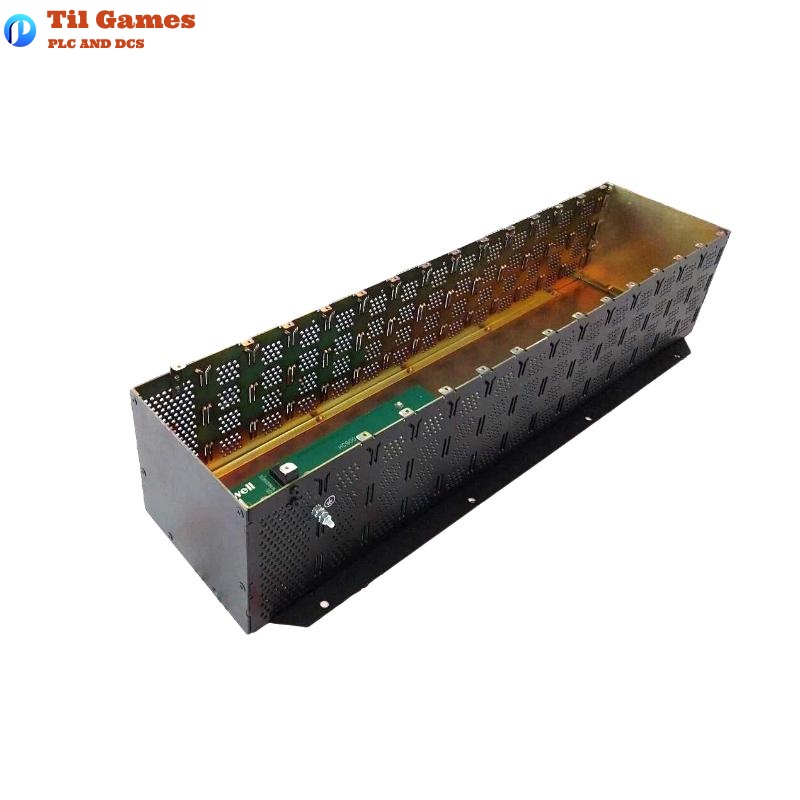

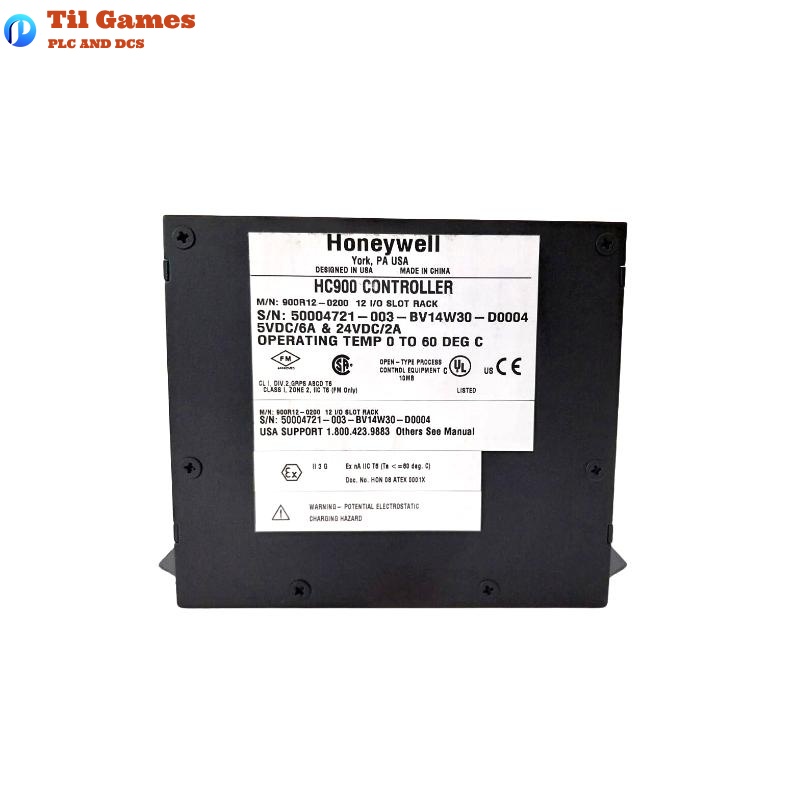

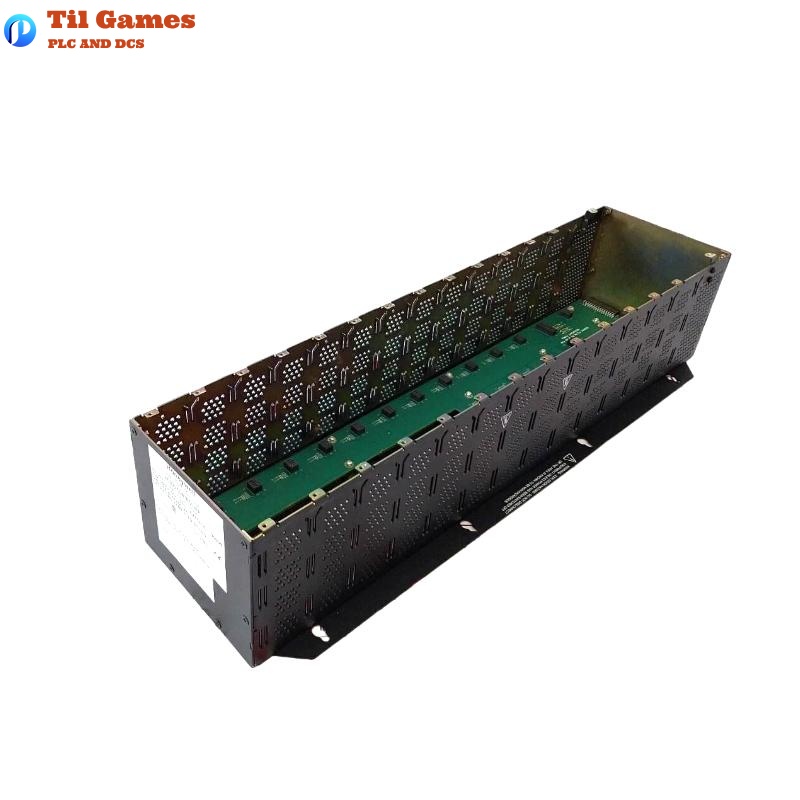

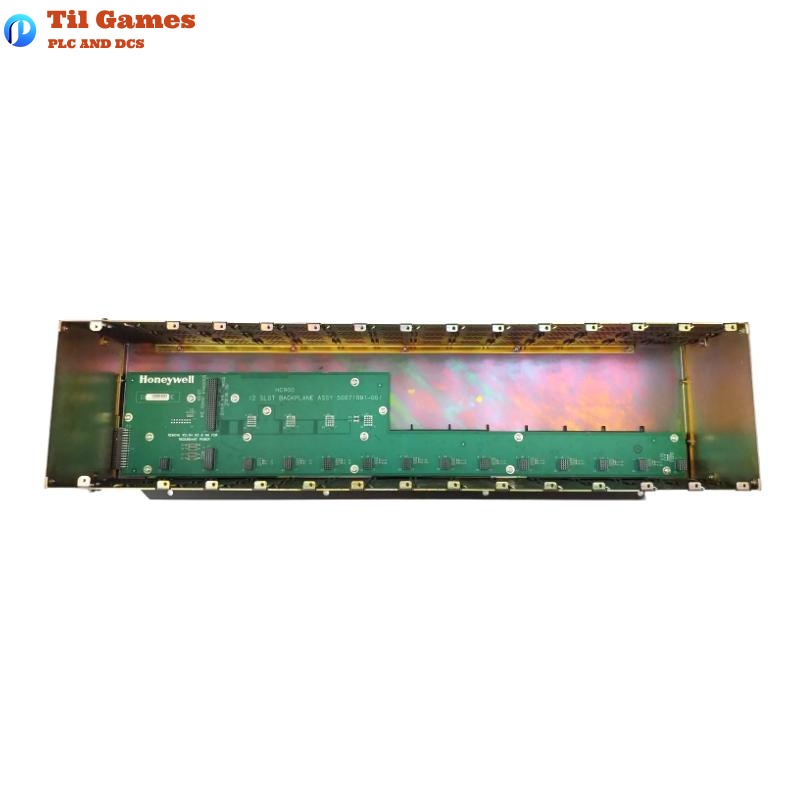

| Product Model | Honeywell 900R12-0200 ControlEdge HC900 Rack |
| Slot Capacity | 12 I/O Slots |
| Mounting Type | Surface mounting with 4 screws on back panel |
| Installation Height | 175.3 mm (including rear mounting plate) |
| Dimensions (HxWxD) | 137 x 571.5 x 151.7 mm |
| Weight | 4.072 kg |
| Material | Tray: PVC, UL94-V0 flame retardant |
| DIN Rail Support | Standard 35 mm wide DIN rail |
| Environment Rating | G3 harsh environment with conformal coating |
| Operating Temp | 0°C to 60°C |
| Storage Temp | -40°C to 70°C |
| Relative Humidity | Operating: 10%–90% (non-condensing) |
| Storage Humidity | 5%–95% (non-condensing) |
| Compliance | CE, UL, ATEX, IECEx, CSA, FM, RoHS 2 |
FAQ
FAQ
Q1: Does the 12-slot I/O rack support hot-swapping of modules?
A1: Yes, the 900R12-0200 rack supports hot-swap for I/O modules without powering down the controller.
Q2: Is redundant power supported?
A2: This model does not support redundant power. Use model 900R12R-0300 for redundant power capability.
Q3: What mounting method is used?
A3: It supports surface mounting using four screws on the back.
Q4: Is DIN rail mounting possible?
A4: Yes, it supports installation on a standard 35 mm DIN rail.
Q5: Can it operate in harsh industrial environments?
A5: Yes, all components are coated for G3-level harsh environment operation, except for the PSU.
Q6: What is the weight of the rack?
A6: The rack weighs 4.072 kg.
Q7: Is it certified under CE and UL standards?
A7: Yes, the product meets CE, UL, ATEX, IECEx, CSA, FM, and RoHS 2 directives.
Q8: What is the normal operating temperature range?
A8: The standard operating temperature range is 0°C to 60°C.
