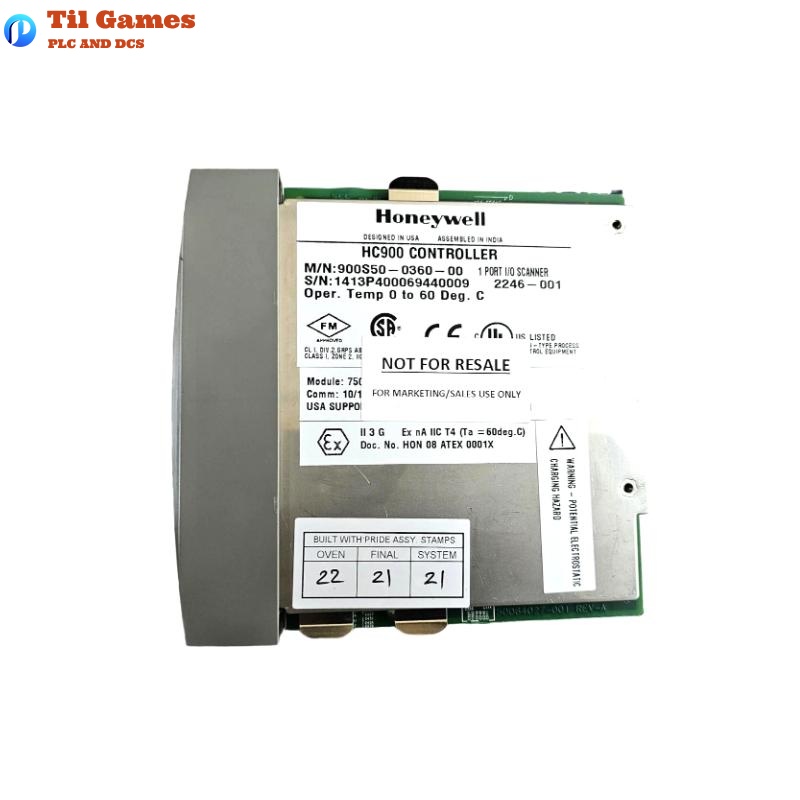

Honeywell 900S50-0360-00 ControlEdge HC900 I/O Scanner

FAQ

Q1: Does this module support hot swapping?
A1: Yes, the 900S50-0360-00 supports hot insertion and removal, allowing maintenance without powering down the system.

Q2: Does the module have self-diagnostic capabilities?
A2: Yes, it includes fault detection with a tri-color status LED indicating normal, fault, or forced conditions.

Q3: How is the module powered?
A3: It receives power directly through the backplane from the system power supply.

Q4: What environmental conditions is the module suitable for?
A4: It operates in temperatures from 0°C to 60°C, humidity from 10% to 90% RH non-condensing, and is rated for G3 harsh environments.

Q5: Is the module certified for industrial use?
A5: Yes, it is certified under CE, UL, ATEX, CSA, and FM standards for both general and hazardous industrial environments.

Q6: How is this model different from the dual-port scanner?
A6: The 900S50-0360-00 has a single communication port, whereas the 900S75-0360-00 features two ports for redundancy or extended networking.

Q7: Does the module include LED indicators for I/O activity?
A7: Yes, it features status indicators for each I/O point using light pipes that route LED signals to the module front panel.

Q8: How is this module mounted?
A8: It is designed for easy DIN rail mounting within control enclosures.
