Technical Specifications
| Parameter | Description |
|---|---|

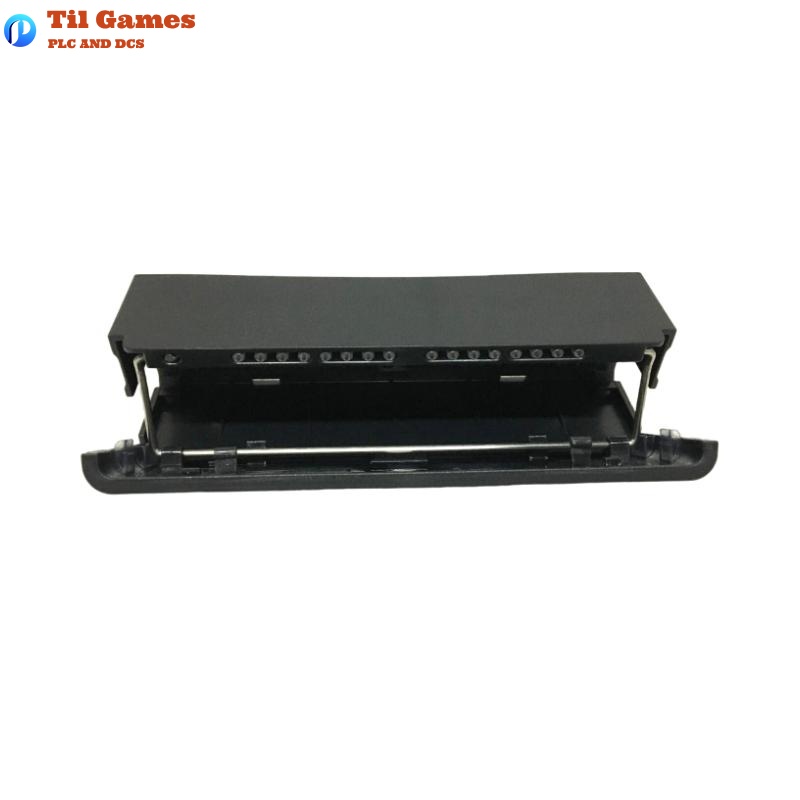

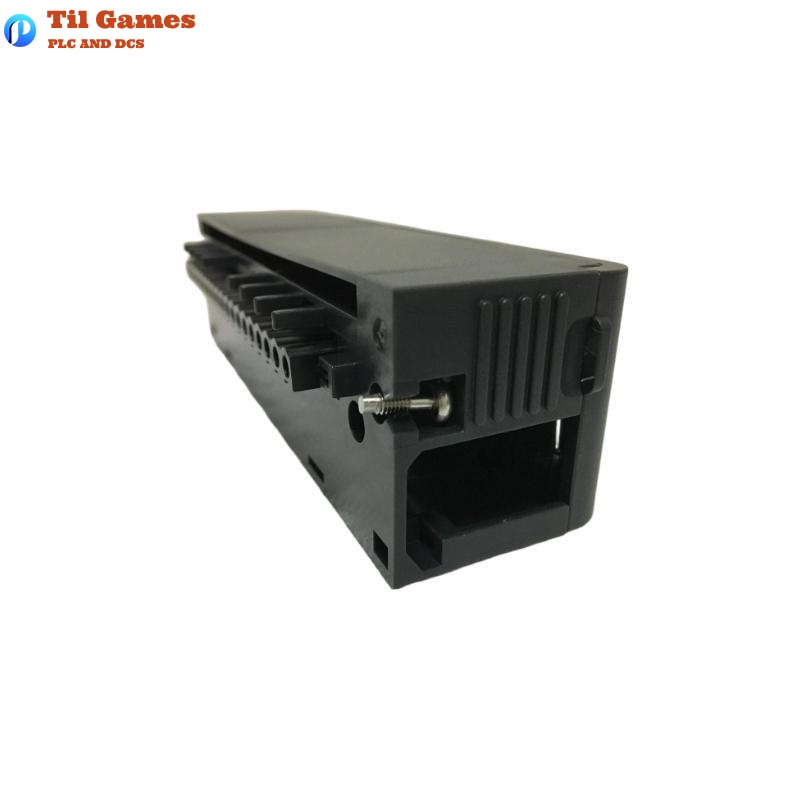

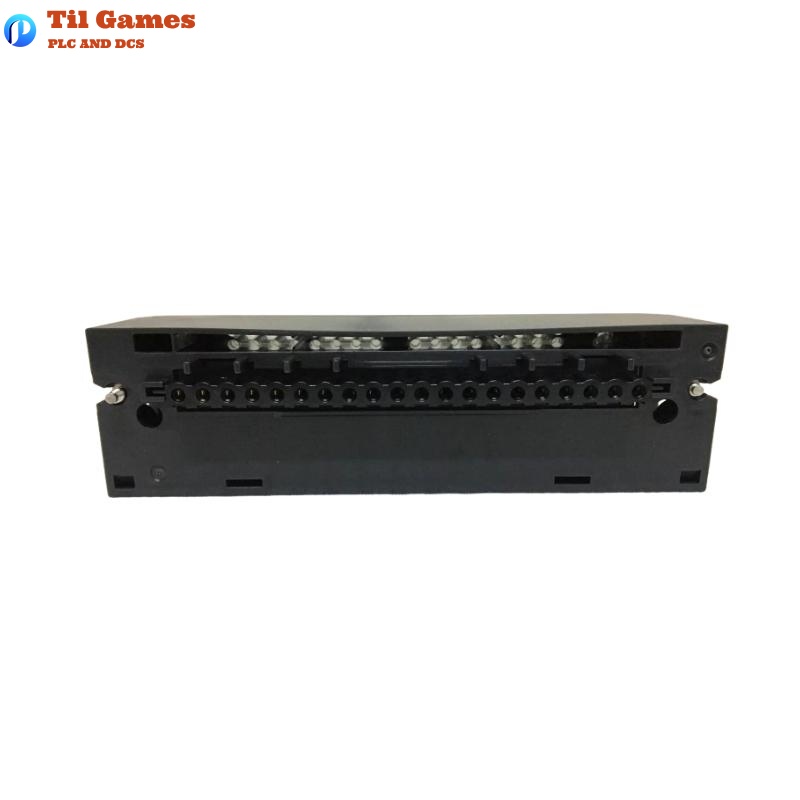

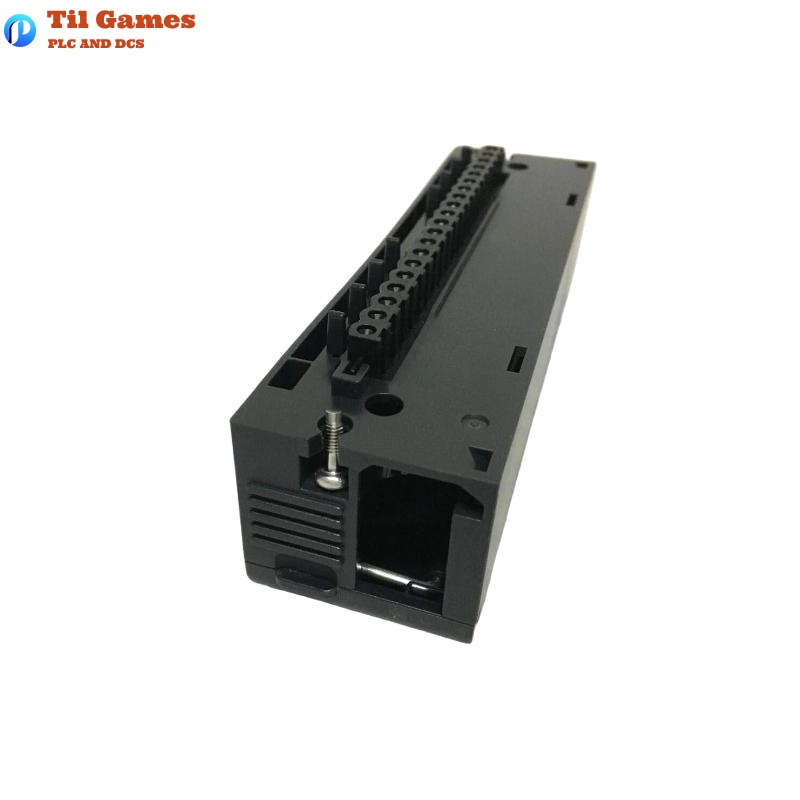

| Product Model | Honeywell 900TEK-0001 |
| Product Type | Terminal Block for ControlEdge HC900 I/O Modules |
| Terminal Block Style | 20-screw Barrier or Euro style (available in tin-plated or gold-plated) |
| High Voltage Indicator | Red terminal blocks used for high voltage connections |
| Low Voltage Indicator | Black terminal blocks used for low voltage connections |
| Mounting Type | DIN Rail |
| Environmental Rating | UL94-V0 Flame Retardant PVC Material |
| Conformal Coating | Yes, for harsh environments (G3 level) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Storage Humidity | 5% to 95% RH (Non-condensing) |
| Dimensions (L × W × H) | 111 × 94 × 66 mm |
| Weight | 0.129 kg |
FAQ
FAQ
Q1: What types of I/O modules is this terminal block compatible with?
A1: It supports all ControlEdge HC900 I/O modules including analog and digital input/output modules.
Q2: Is hot-swapping supported?
A2: Yes, the module supports insertion and removal under power, but field power should be disconnected beforehand.
Q3: Can it be used for high voltage wiring?
A3: Yes, red terminal blocks are used specifically for high voltage connections to enhance safety.
Q4: Is it resistant to harsh environments?
A4: Yes, it features conformal coating rated for G3 harsh industrial environments.
Q5: Do terminal blocks need to match specific module models?
A5: Yes, hardware keying ensures the terminal block matches the intended module to prevent miswiring.
Q6: What installation method is supported?
A6: It is designed for standard 35mm DIN rail mounting within an enclosure.
Q7: Are gold-plated terminals available?
A7: Yes, terminal blocks are available in tin-plated or gold-plated versions, with gold recommended for DC applications.
Q8: Is it RoHS compliant?
A8: Yes, the entire system (excluding PSU modules) complies with RoHS 2 Directive requirements.
