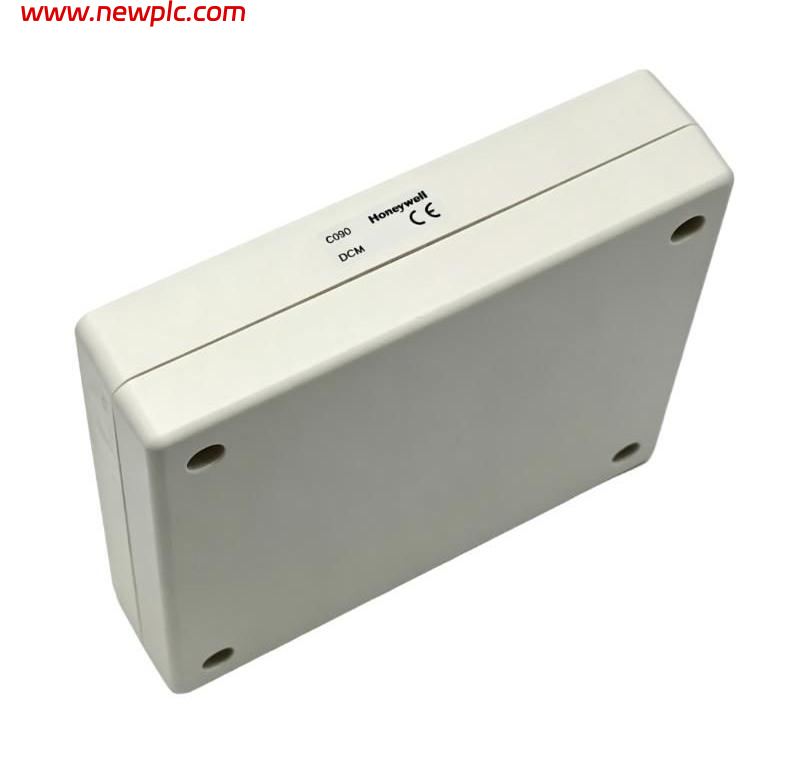

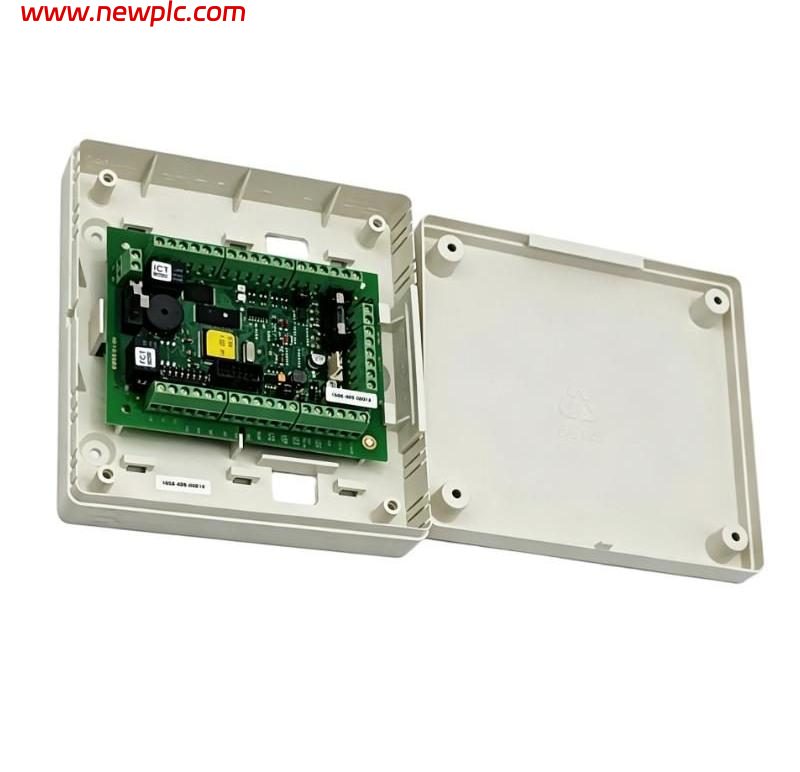

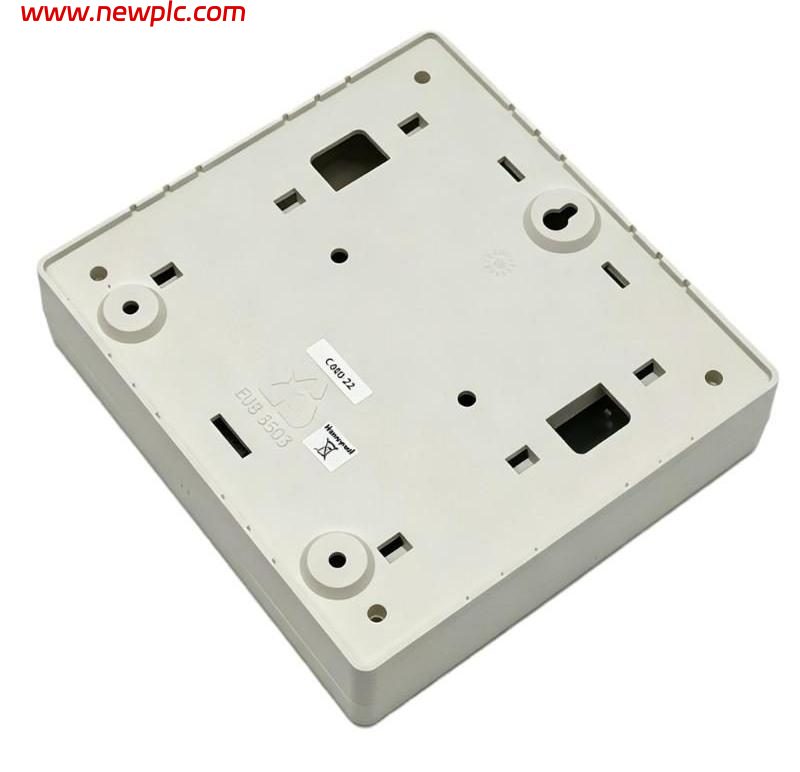

Honeywell C080 Door Control Module (DCM)

FAQ

Q1: What is the Honeywell C080 used for?
A: The C080 is a Door Control Module for Honeywell Galaxy security systems. It provides integrated access-control functions for up to two doors.

Q2: How many doors can one C080 control?
A: One C080 can control up to two doors, making it suitable for small and medium-sized access-control installations.

Q3: How many card readers can be connected to the C080?
A: The module supports up to two readers, one for each controlled door. It is compatible with OmniClass and OmniProx proximity and smart-card readers.

Q4: Does the C080 support Wiegand readers?
A: Yes. The C080 supports Wiegand reader technology, including formats up to 40 bits, providing compatibility with a range of existing card and proximity-reader systems.

Q5: What door-control inputs and outputs are available?
A: The C080 provides 2 door-contact inputs, 2 exit-button inputs, 2 arming-button inputs and 2 lock-control relays. It also includes a tamper contact.

Q6: Which Honeywell systems are compatible with the C080?
A: The C080 is designed for use with Honeywell Galaxy Dimension and Galaxy Flex systems.

Q7: What are the dimensions and weight of the Honeywell C080?
A: The C080 measures approximately 162 × 39 × 150 mm and weighs approximately 0.31 kg. The dimensions are listed as height 150 mm, width 162 mm and depth 39 mm.

Q8: Is the Honeywell C080 still available?
A: Honeywell currently lists the C080 as a discontinued product, although Honeywell indicates that product support may remain available. For replacement projects, the exact Galaxy system version and successor compatibility should be checked before ordering.

C080 Honeywell
