Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | CC-HCAR01 |
| Part Number | 51454504-175 |

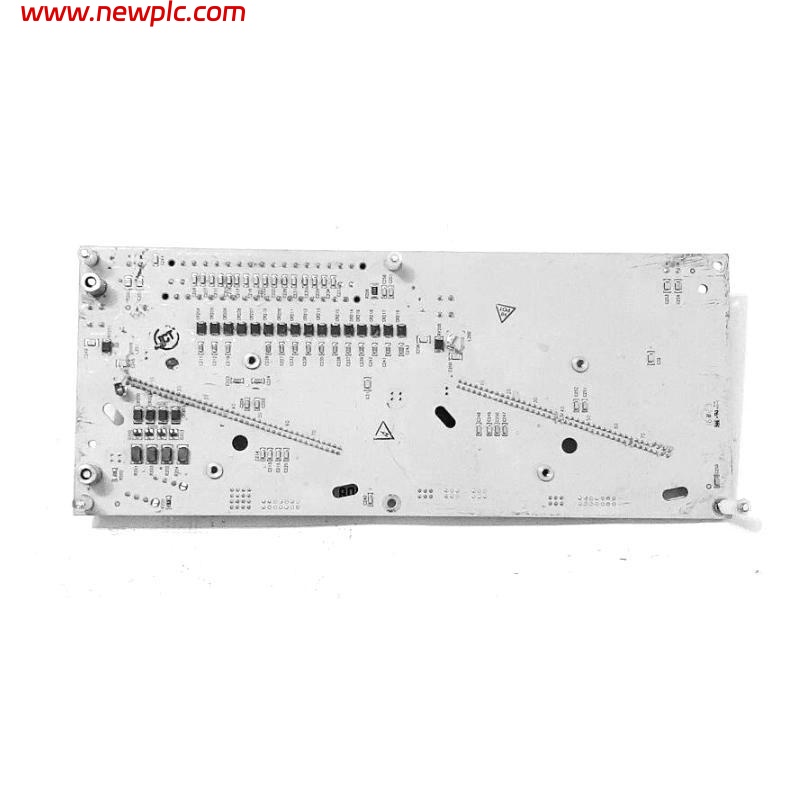

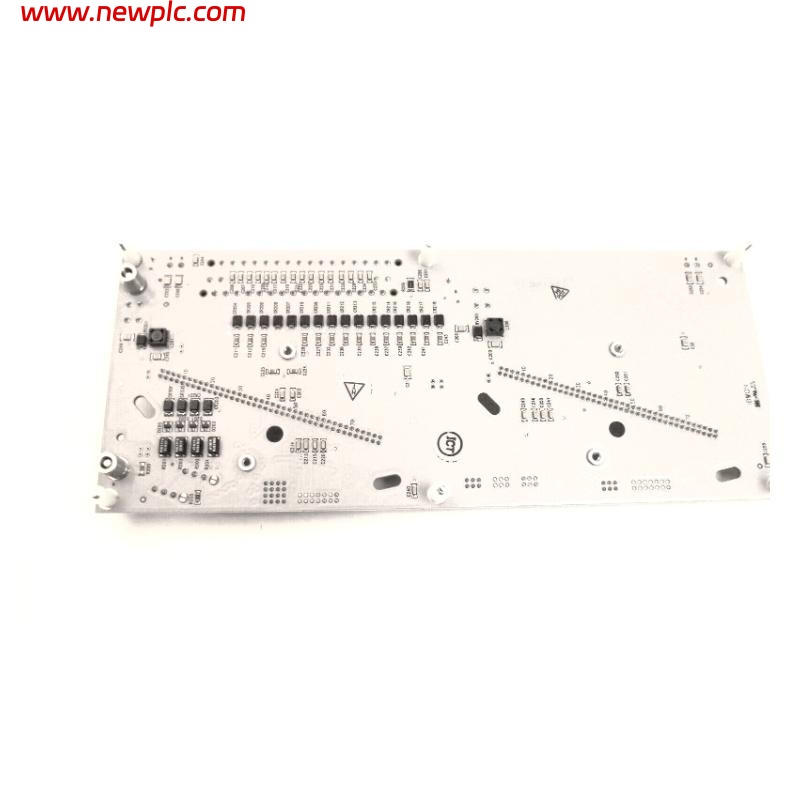

| Product Name | C300 Horizontal Backplane PWA |
| Description | Horizontal backplane for C300 Controller |
| Slot Configuration | 4 slots: 1 for controller, 3 for I/O modules |
| Bus Support | Redundant FTE (Fast Ethernet) with Series 8 I/O |
| Compatibility | Supports 8C Series I/O modules |
| Power Distribution | Includes integrated power rails |
| Cooling Requirement | Convection cooling |
| Mounting | Horizontal mounting inside chassis |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (W x H x D) | 120 x 40 x 130 mm |
| Weight | 0.42 kg |
FAQ
FAQ
Q1: What is the primary function of the CC-HCAR01 backplane?
A1: It provides connectivity and power distribution for the C300 controller and Series 8 I/O modules.
Q2: How many modules can be connected to this backplane?
A2: The CC-HCAR01 backplane supports up to four modules: one C300 controller and three Series 8 I/O modules.
Q3: Is redundant communication supported?
A3: Yes, it supports redundant Fast Ethernet (FTE) connections for improved system reliability.
Q4: Can the CC-HCAR01 be used in vertical mounting?
A4: No, this specific model is designed for horizontal mounting only.
Q5: What I/O modules are compatible with this backplane?
A5: It is compatible with Honeywell Series 8 I/O modules such as 8C-TAIDA1, 8C-PAONA1, and similar types.
Q6: What is the operating temperature range of the CC-HCAR01?
A6: The operating temperature range is from 0°C to 50°C.
Q7: Does the backplane include power rails?
A7: Yes, the backplane includes integrated power distribution rails.
Q8: What is the weight of the CC-HCAR01 module?
A8: The unit weighs approximately 0.42 kg.
