Technical Specifications
| Parameter | Description |
|---|---|

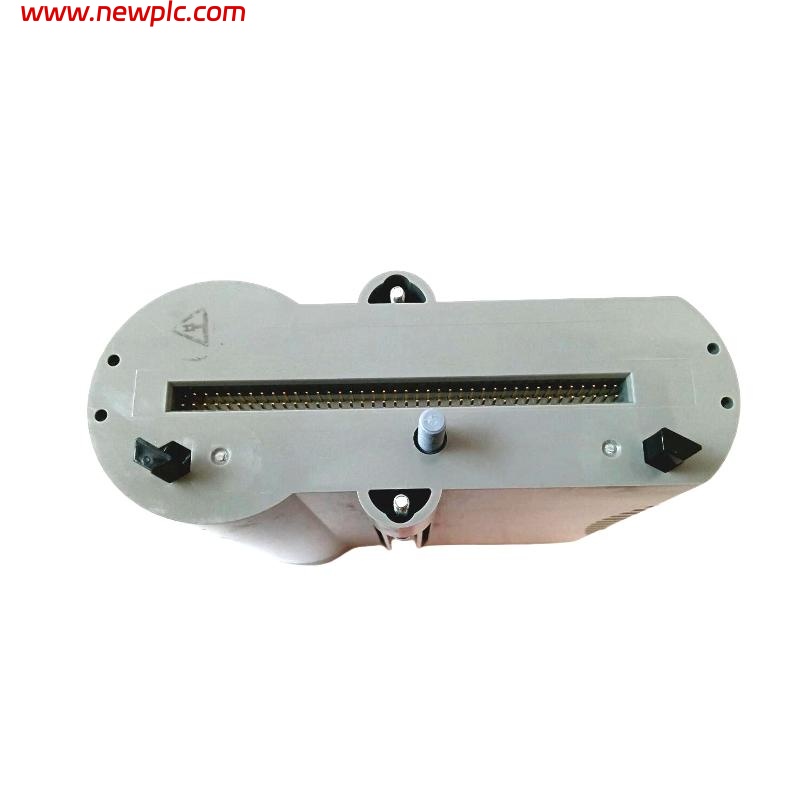

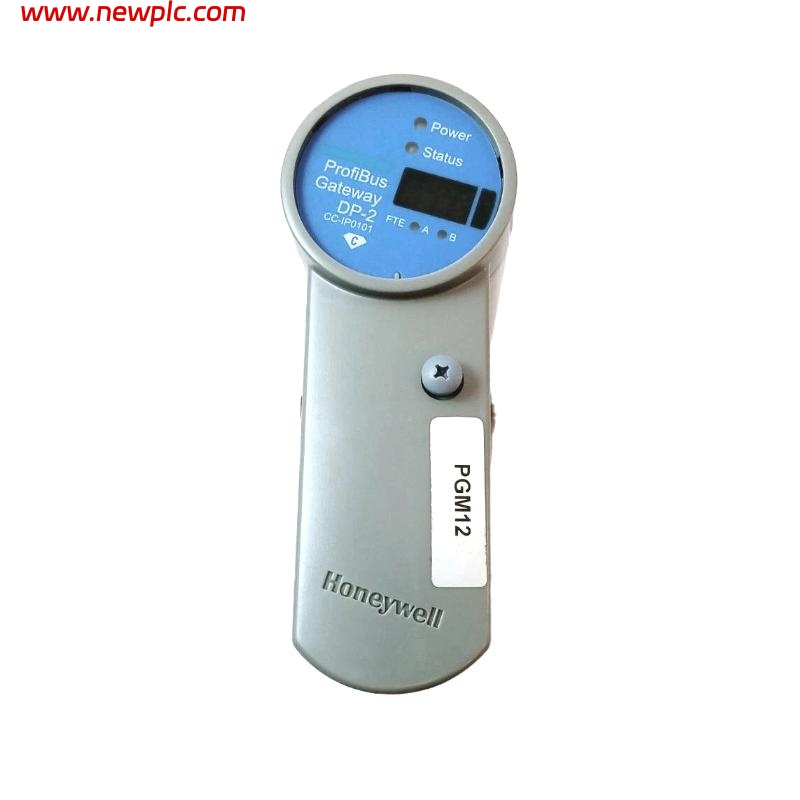

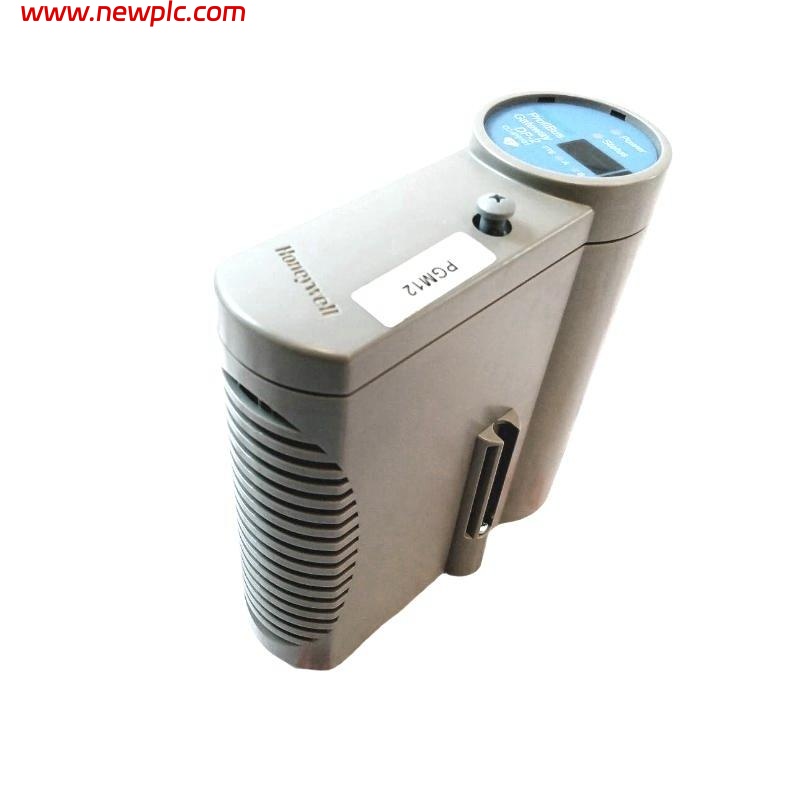

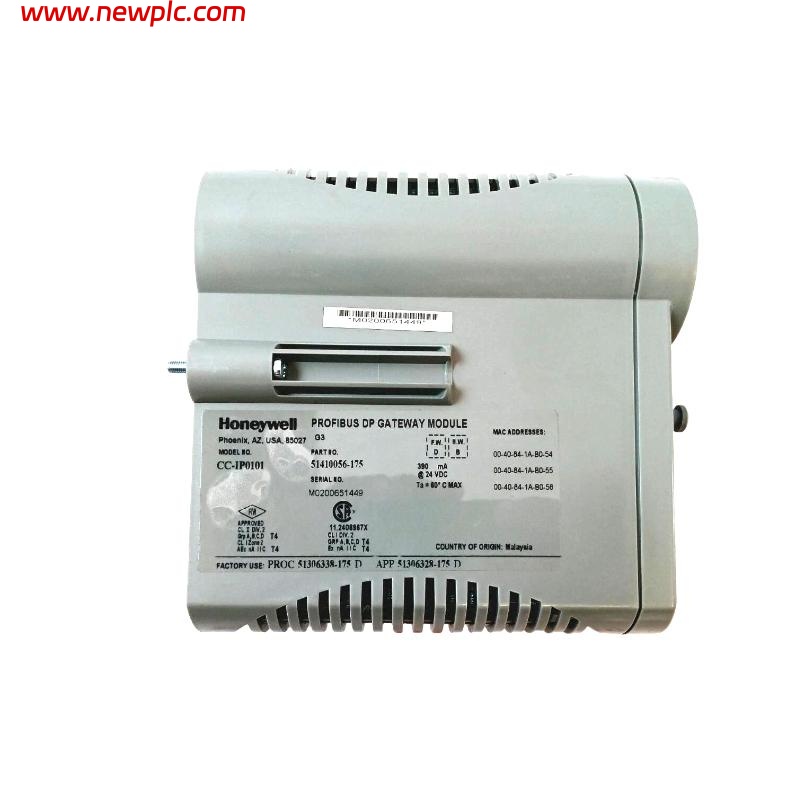

| Product Name | Honeywell CC-IP0101 PROFIBUS DP Gateway Module |
| Model Number | 51410056-175 |
| Interface Type | PROFIBUS-DP |
| Integration Platform | Honeywell Experion R500.1 |
| Communication Standard | PROFIBUS DPV0 / DPV1 |
| Firmware Support | Gateway 2.3.1.0 or later |
| Supported Devices | Turck excom® I/O modules |
| Redundancy Support | Yes (line redundancy, dual-master support) |
| HART Communication | Supported via AIH40Ex module |
| GSD File Version | V1.6.4 |
| Mounting Type | DIN rail or module rack |
| Operating Environment | Industrial use, including Ex-protected zones |
| Configuration Tool | Honeywell Experion Configuration Studio |
| Diagnostic Capabilities | PROFIBUS standard & extended diagnostics |
| Dimensions | 55 × 160 × 145 mm |
| Weight | 0.4 kg |
FAQ
FAQ
Q1: What communication protocols does the CC-IP0101 support?
A1: The module supports PROFIBUS-DP protocols, including both DPV0 and DPV1.
Q2: Does it support redundancy?
A2: Yes, it supports both single-master and dual-master redundancy modes for high availability.
Q3: Can configuration be changed during operation?
A3: Yes, it supports Hot Configuration In Run (HCIR), allowing parameter and module changes without stopping the system.
Q4: How is the module integrated into Honeywell Experion?
A4: It is integrated using a GSD file and Configuration Studio, added as a PROFIBUS slave, and configured using DSB and PIOMB blocks.
Q5: Does the module support HART variable transfer?
A5: Yes, it allows HART secondary variables to be transferred via HART-enabled AIH40Ex modules.
Q6: How can diagnostic data be accessed?
A6: Diagnostics can be accessed through standard and extended PROFIBUS diagnostics in Experion, including fault and module status.
Q7: Can the module be hot-swapped if it fails?
A7: In redundant mode, the controller can switch to the backup gateway for hot replacement without system interruption.
Q8: What are the installation requirements for this module?
A8: It is designed for industrial and Ex-protected environments and must be installed and serviced by qualified personnel.
