Technical Specifications
| Item | Specification |
|---|---|

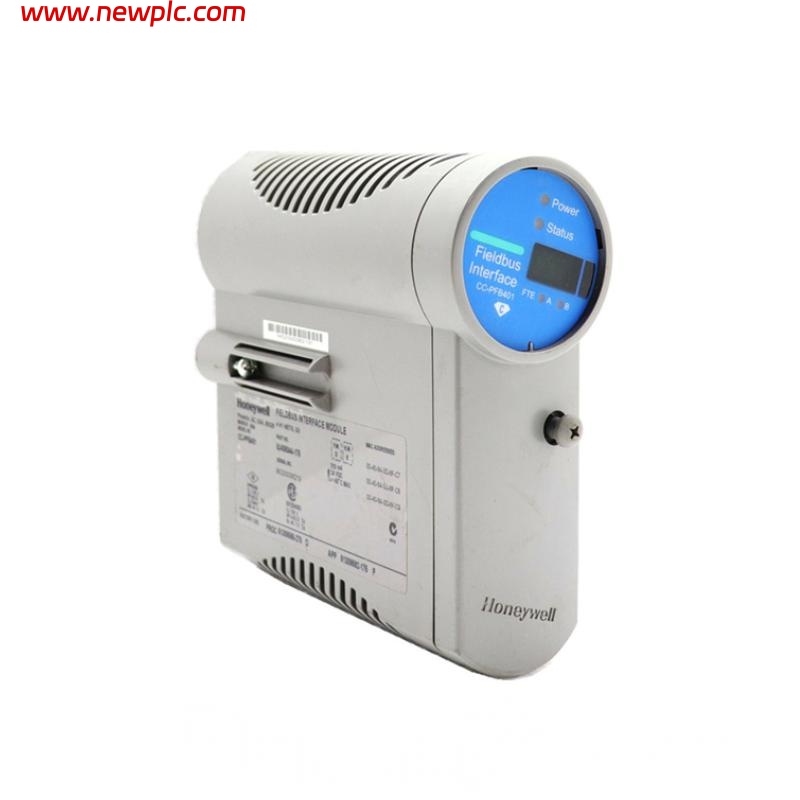

| Product Model | Honeywell CC-PFB402 Fieldbus Interface Module |
| Type | Fieldbus Interface Module |
| Interface Type | FOUNDATION Fieldbus H1 |
| Supported Channels | 2 H1 channels |
| Communication Speed | 31.25 kbps |
| Power Supply Voltage | 24V DC |
| Power Consumption | ≤ 5 W |
| Operating Temperature Range | 0 ~ 60°C |
| Storage Temperature Range | -40 ~ 85°C |
| Relative Humidity | 5% ~ 95% (non-condensing) |
| Electrical Isolation | Channel-to-system isolation |
| Mounting Method | Rack-mounted |
| Dimensions | 63.5 x 124.46 x 307.34 mm |
| Weight | 0.408 kg |
FAQ
FAQ
Q1: What is the primary function of this module?
A1: It connects and manages communication between FOUNDATION Fieldbus H1 devices and the control system.
Q2: How many H1 channels are supported?
A2: It supports 2 independent H1 bus channels.
Q3: What is the communication speed?
A3: It supports the standard H1 bus speed of 31.25 kbps.
Q4: What power supply voltage does the module require?
A4: It requires a 24V DC power supply.
Q5: How is the module installed?
A5: It is rack-mounted for easy maintenance and expansion.
Q6: Does the module have electrical isolation?
A6: Yes, it provides isolation between channels and the system.
Q7: What are the dimensions and weight of the module?
A7: The dimensions are 63.5 x 124.46 x 307.34 mm, and the weight is 0.408 kg.
Q8: What is the maximum power consumption?
A8: The maximum power consumption is ≤ 5 W.
