Technical Specifications
| Parameter | Specification |
|---|---|

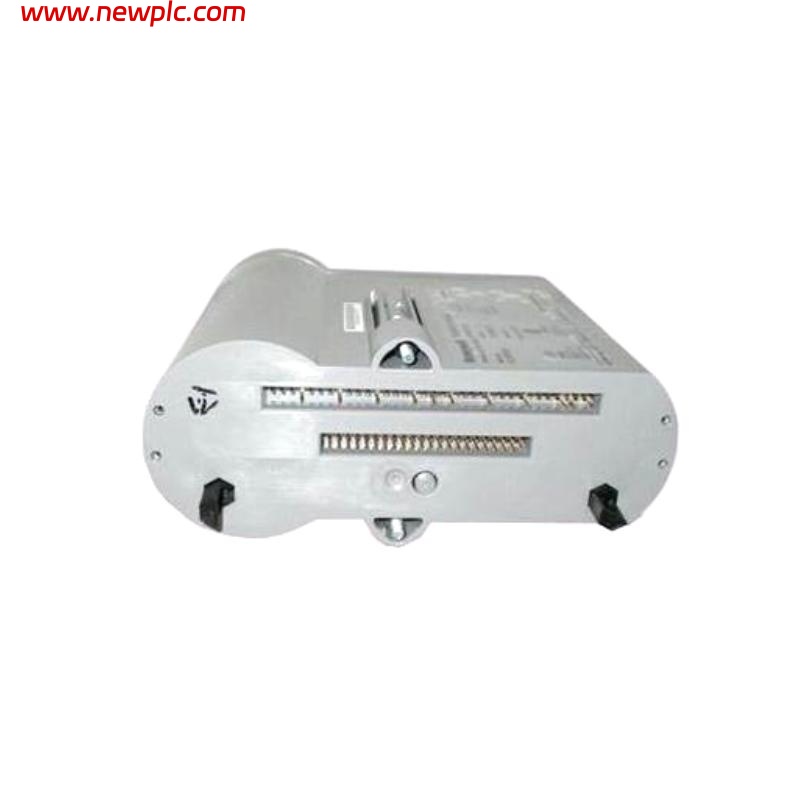

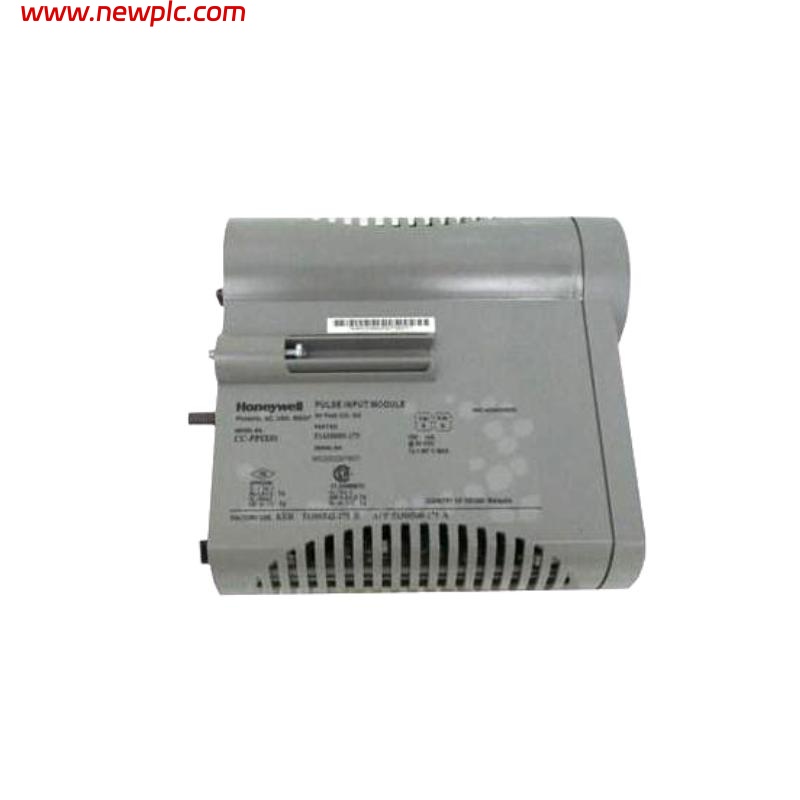

| Model | Honeywell CC-PPIX01 51410089-175 |
| Type | Pulse Input Module |
| Function | Captures and processes pulse signals from field devices for monitoring and control |
| Input Channels | 8 pulse input channels |
| Pulse Types Supported | Voltage pulse, contact closure, transistor outputs |
| Input Signal Range | 5 V to 30 V DC |
| Input Frequency Range | Up to 10 kHz |
| Input Impedance | Approximately 10 kΩ |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Power Supply Voltage | Supplied via I/O backplane |
| Power Consumption | Approx. 3 W |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5–95% RH (non-condensing) |
| Dimensions | 63.5 x 124.46 x 307.34 mm |
| Weight | 0.299 kg |
| Mounting | Mounted on Honeywell I/O base unit |
| Application | Industrial pulse counting, flow measurement, and monitoring in control systems |
FAQ
FAQ
1. What is the main function of the Honeywell CC-PPIX01 module?
It captures and processes pulse signals from field devices for industrial monitoring and control.
2. How many pulse input channels does it support?
It supports 8 pulse input channels.
3. What types of pulse signals can it accept?
It accepts voltage pulses, contact closures, and transistor output pulses.
4. What is the input voltage range?
5 V to 30 V DC.
5. What is the maximum pulse frequency supported?
Up to 10 kHz.
6. Does it provide channel isolation?
Yes, it has isolation between channels and to ground.
7. What are its operating temperature limits?
0 °C to +60 °C.
8. Where is this module typically used?
Used in pulse counting, flow measurement, and process monitoring applications in industrial control systems.
