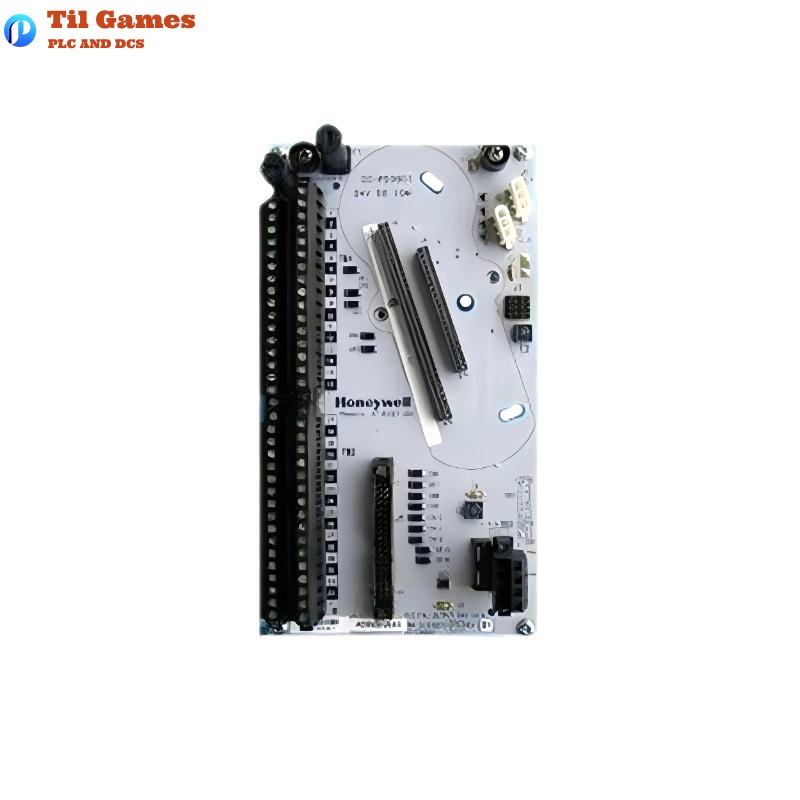

Honeywell CC-TDI230 Digital Input 220V IOTA Module

Frequently Asked Questions (FAQ)

Q1: How many digital input channels does the CC-TDI230 module support?
A1: It supports 32 high-voltage (220VAC) digital input channels.

Q2: Is redundancy supported by the CC-TDI230 module?
A2: Yes, it supports redundancy when installed with a redundant IOTA.

Q3: What is the acceptable input voltage range for this module?
A3: The input voltage range is 180 to 264 VAC RMS.

Q4: Are the input channels electrically isolated?
A4: Yes, each channel is optically isolated with 1500 VAC RMS or ±1500 VDC isolation.

Q5: What is the input filter delay of the module?
A5: The maximum input delay is 25 milliseconds.

Q6: Does this module support both 50Hz and 60Hz power systems?
A6: Yes, the supported frequency range is 47 to 63 Hz.

Q7: Does the module feature open wire detection?
A7: Open wire detection is not explicitly specified but basic diagnostic capabilities are present.

Q8: What are the physical dimensions and weight of the module?
A8: The module measures 63.5 x 124.46 x 307.34 mm and weighs 0.4 kg.

CC-TDI230 Digital Input 220V IOTA Module Honeywell
