Technical Specifications
| Item | Specification |
|---|---|

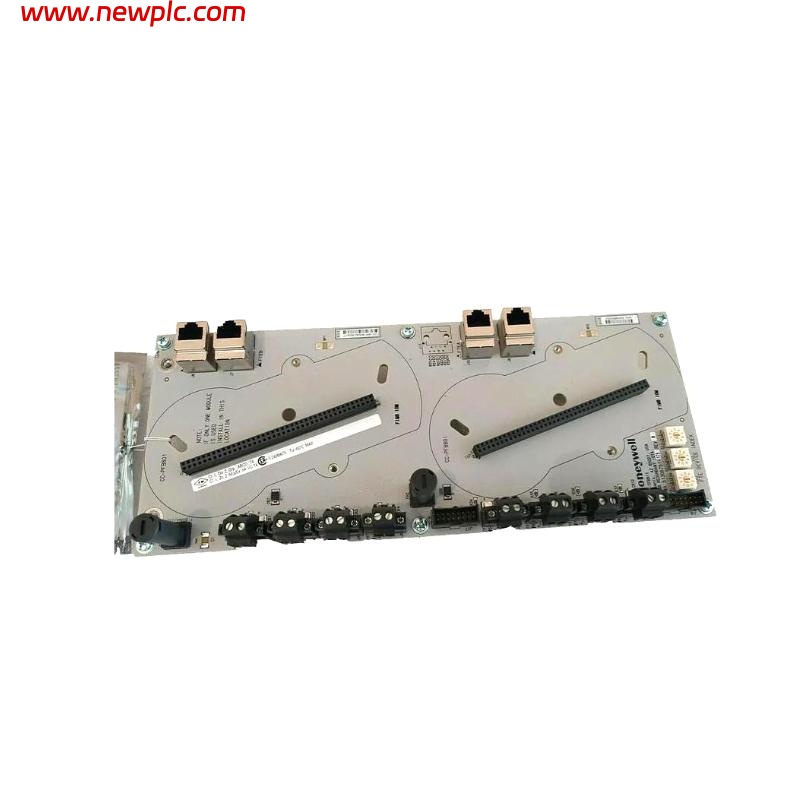

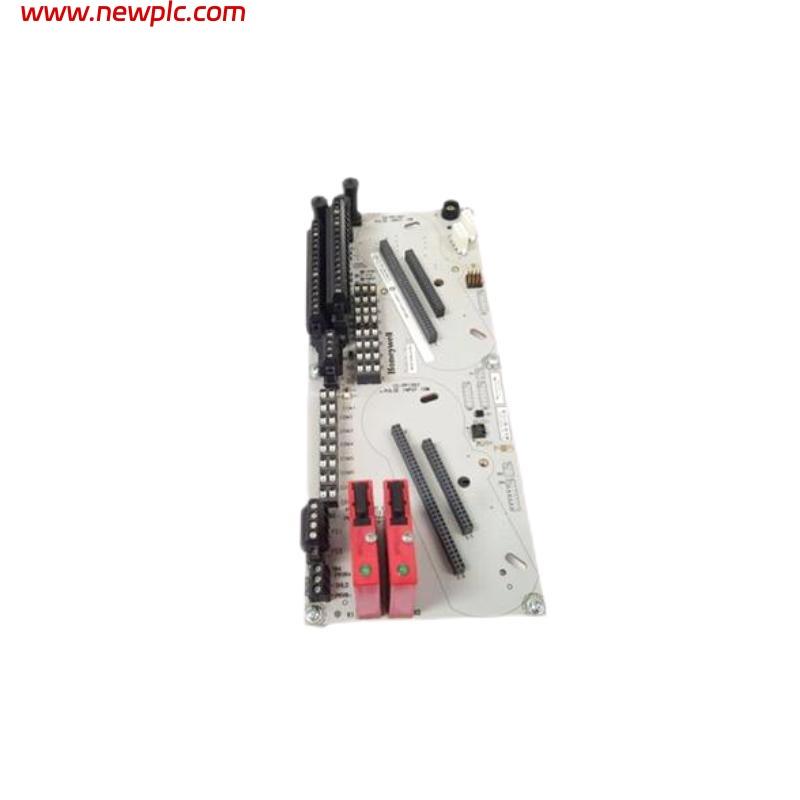

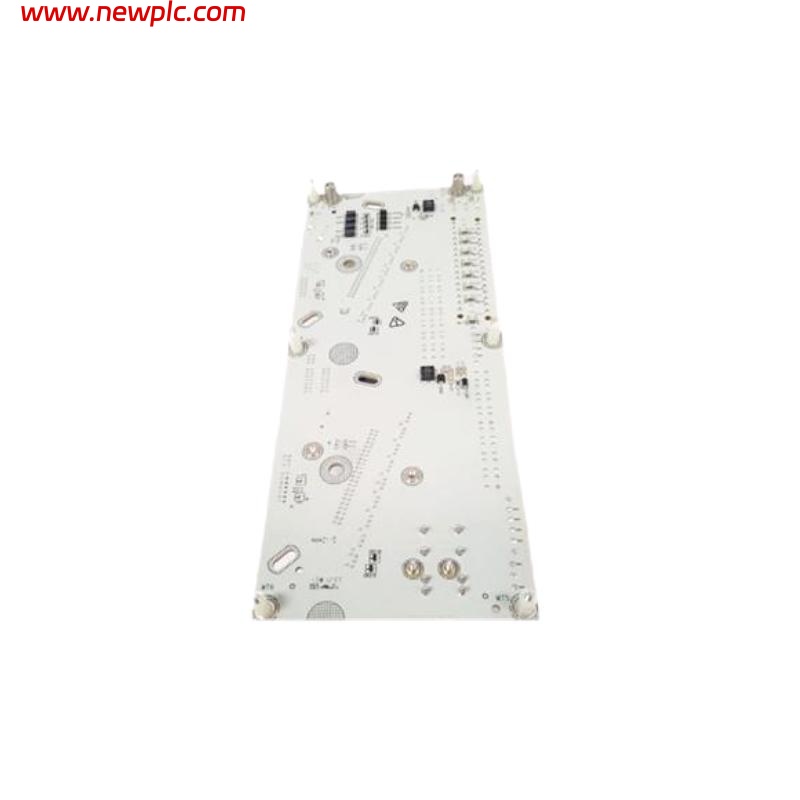

| Product Model | CC-TPIX11 51306544-125 |
| Product Type | Pulse Input Module |
| Manufacturer | Honeywell |
| System Type | Experion Process Knowledge System (PKS) |
| Number of Channels | 8 channels |
| Input Type | Pulse / Dry Contact / Voltage Pulse |
| Input Voltage Range | 5 to 24 V DC |
| Response Frequency | Up to 10 kHz |
| Power Supply | 24 V DC |
| Operating Temperature | 0 to 60 ℃ |
| Storage Temperature | -20 to 70 ℃ |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions | 63.5 x 124.46 x 307.34 mm |
| Weight | 0.5 kg |
| Mounting Type | Modular plug-in installation |
| Applicable Systems | Honeywell Experion PKS systems |
FAQ
FAQ
Q1: What is the main function of the CC-TPIX11 module?
A1: It receives and processes field pulse signals for counting, frequency measurement, and data transmission to the Experion PKS system.
Q2: How many channels does the module support?
A2: It supports 8 pulse input channels.
Q3: Which types of input signals are supported?
A3: Pulse signals, dry contact, and voltage pulse signals.
Q4: What is the maximum response frequency of the module?
A4: Up to 10 kHz.
Q5: What is the operating temperature range?
A5: 0 to 60 ℃.
Q6: What is the weight of the module?
A6: Approximately 0.5 kg, convenient for installation and maintenance.
Q7: Does the module require a special installation environment?
A7: Install in a standard control cabinet environment; avoid humidity and high temperature.
Q8: What is the module’s power supply voltage?
A8: 24 V DC.
