Technical Specifications
| Parameter | Specification |
|---|---|

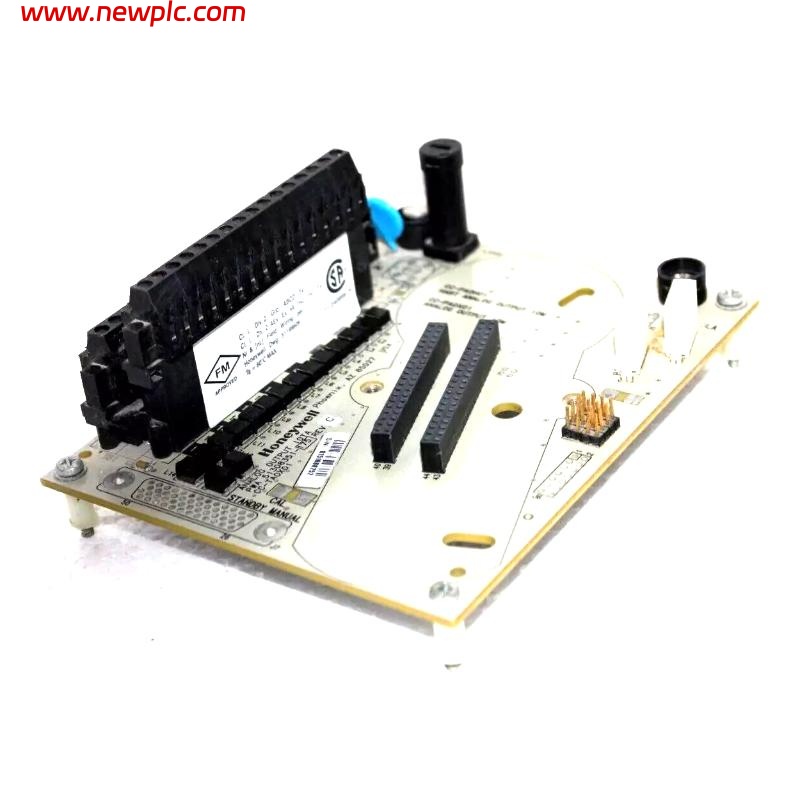

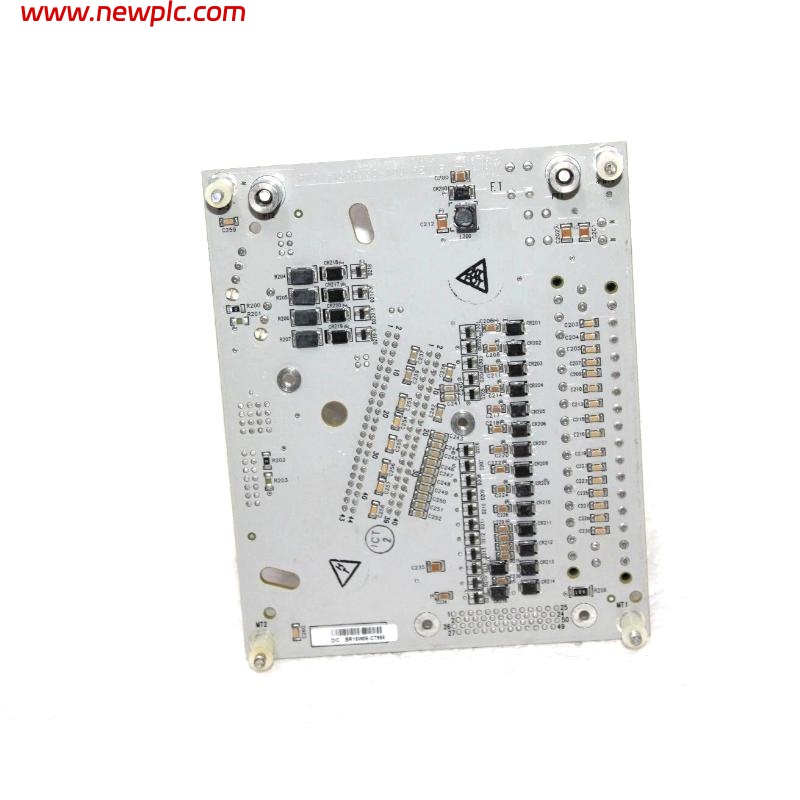

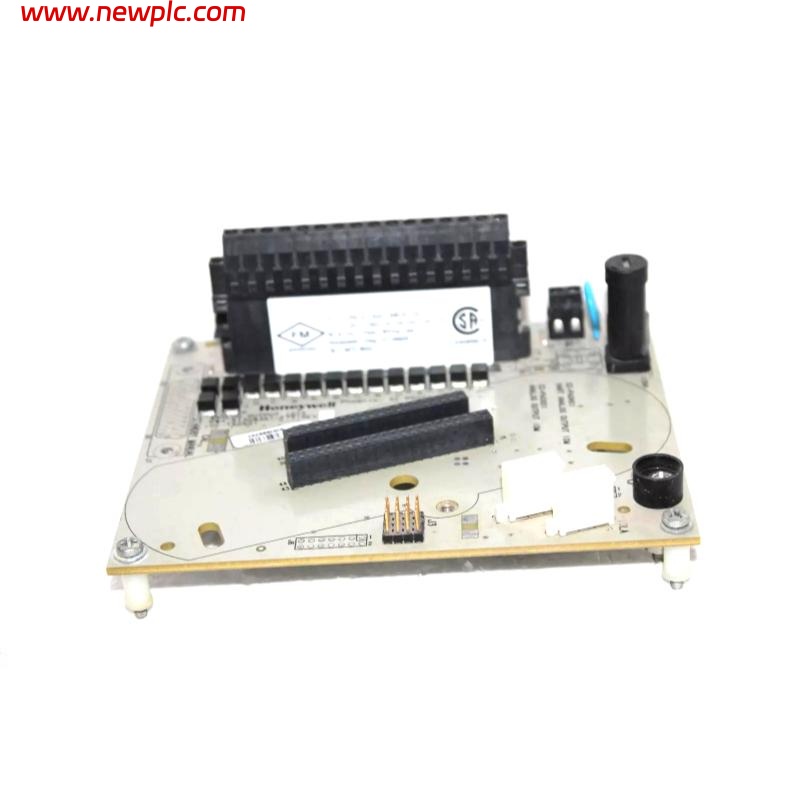

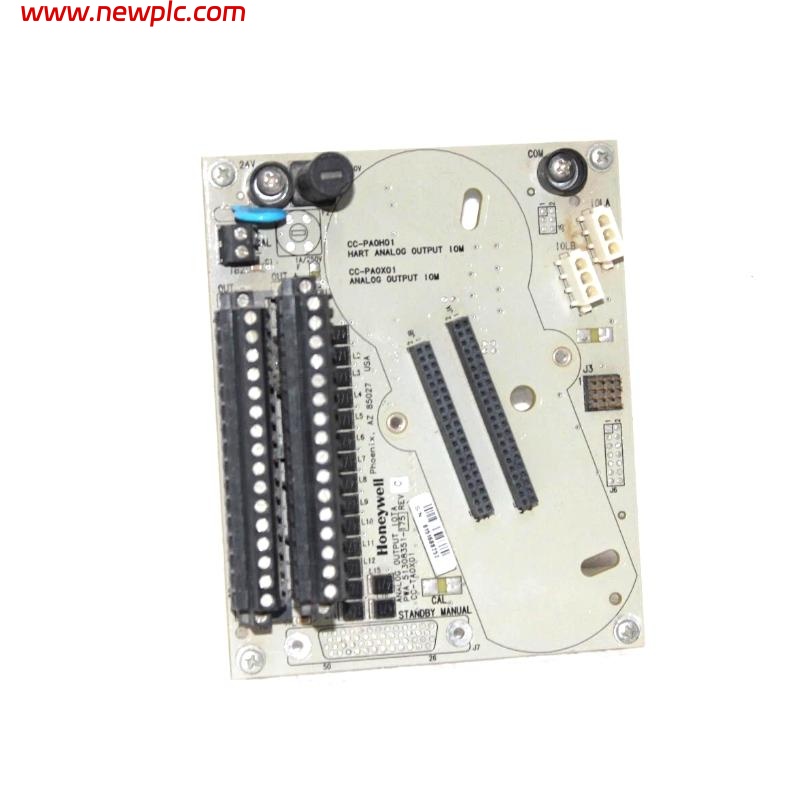

| Product Model | Honeywell CC-TSV211 51306665-175 Series-C Servo Valve Positioner IOTA |
| Configuration | Redundant, supports 2 servo valves |
| Mounting Size | 18-inch IOTA |
| Servo Output Type | Bipolar current: 10, 20, 40, 80, 160, 320 mA; Unipolar current: 50, 300 mA |
| Servo Output Channels | 2 |
| Dither | 0–10% of FS, 25–60 Hz |
| Output Temperature Drift | 300 ppm/°C |
| Output Current Linearity | 0.325% |
| Resolution | 16-bit DAC |
| Maximum Open Circuit Voltage | ±14 V |
| LVDT Interface Input | 3/4/5/6 wires LVDT, 8 V RMS max., 2.5–3.2 kHz |
| LVDT Excitation | 8 V RMS max., 2.5–3.2 kHz, max. 50 mA |
| LVDT Channels | 2 |
| Isolation | ±500 VDC via isolation transformer |
| LVDT A/D Resolution | 16-bit |
| Analog Inputs (AI) | Voltage or current (2-wire/self-powered), 2 channels |
| AI Range | 0–5 V, 1–5 V, 0.4–2 V, 4–20 mA (via 250 Ω) |
| AI Accuracy | ±0.075% FS at 23.5°C; ±0.15% FS from 0–60°C |
| Analog Outputs (AO) | 4–20 mA, 2 channels |
| AO Load Resistance | 760 Ω max. |
| AO Accuracy | ±0.35% FS at 25°C |
| AO Response Time | 1 ms |
| Digital Inputs (DI) | 2 channels, 22–28 VDC |
| DI ON Threshold | ≥13 VDC or ≥6.12 mA |
| DI OFF Threshold | ≤5 VDC or ≤2.1 mA |
| DI Delay | 1.78 ms |
| Dimensions | 63.5 × 124.46 × 307.34 mm |
| Weight | 0.7 kg |
FAQ
FAQ
Q1: What is the main function of the CC-TSV211?
A1: It serves as a redundant IOTA for servo valve position control in turbomachinery applications, supporting two valves.
Q2: What feedback signals can the CC-TSV211 accept?
A2: It can accept LVDT, RVDT, or 4–20 mA position feedback signals.
Q3: How many output channels does the CC-TSV211 provide?
A3: It provides two servo/analog output channels.
Q4: What is the resolution of its DAC?
A4: The CC-TSV211 uses a 16-bit DAC for high-precision output control.
Q5: Does it support redundant operation?
A5: Yes, it is designed for redundant configuration to ensure high availability.
Q6: What is the maximum open circuit voltage for servo outputs?
A6: The maximum open circuit voltage is ±14 V.
Q7: What isolation protection does it offer for LVDT inputs?
A7: It offers ±500 VDC galvanic isolation via isolation transformer.
Q8: What are its physical dimensions and weight?
A8: The module measures 63.5 × 124.46 × 307.34 mm and weighs 0.7 kg.
