Technical Specifications
| Parameter | Specification |
|---|---|

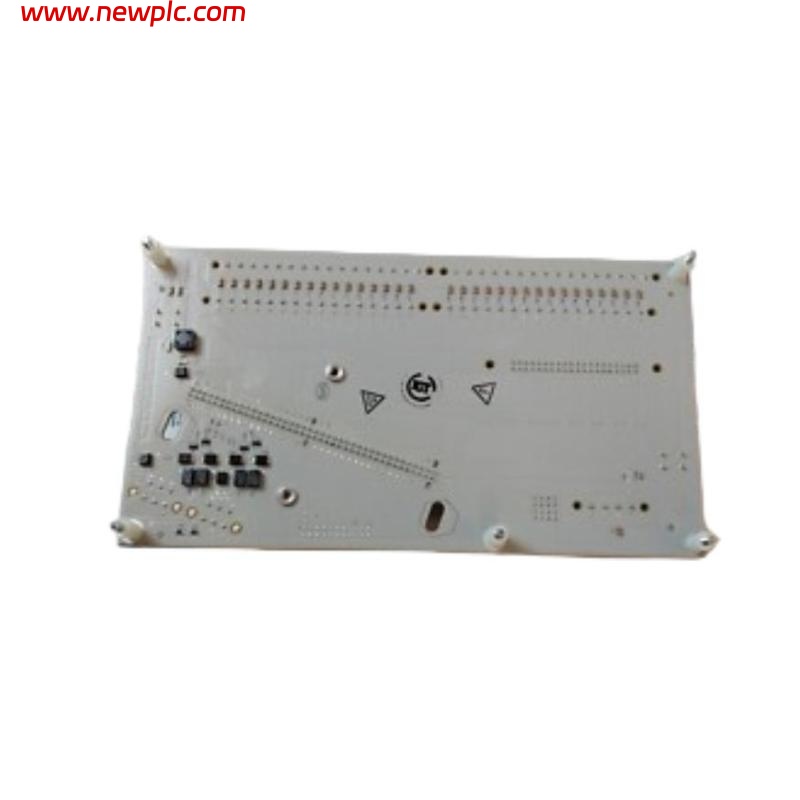

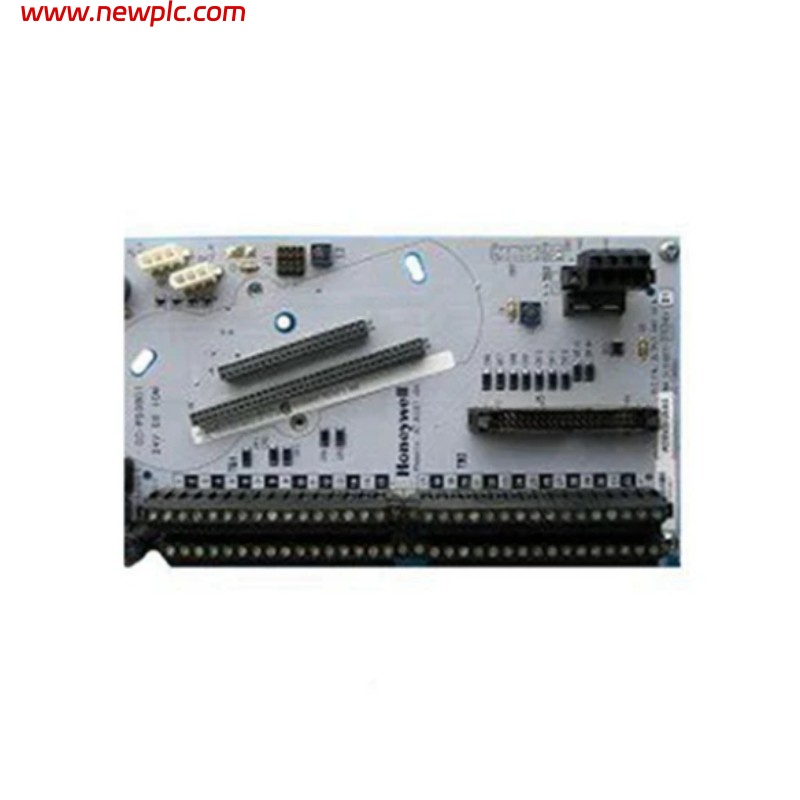

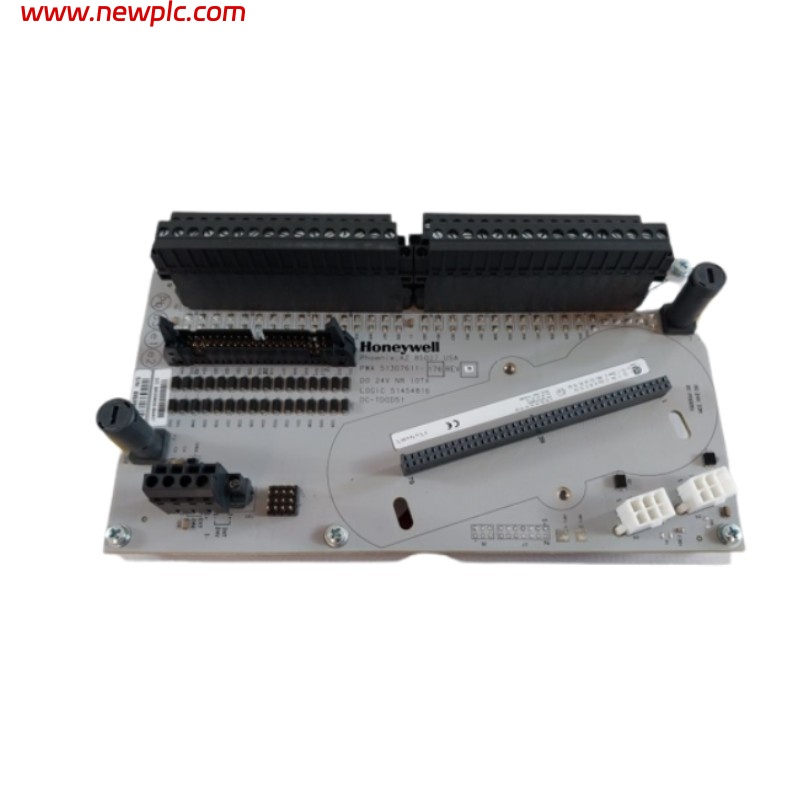

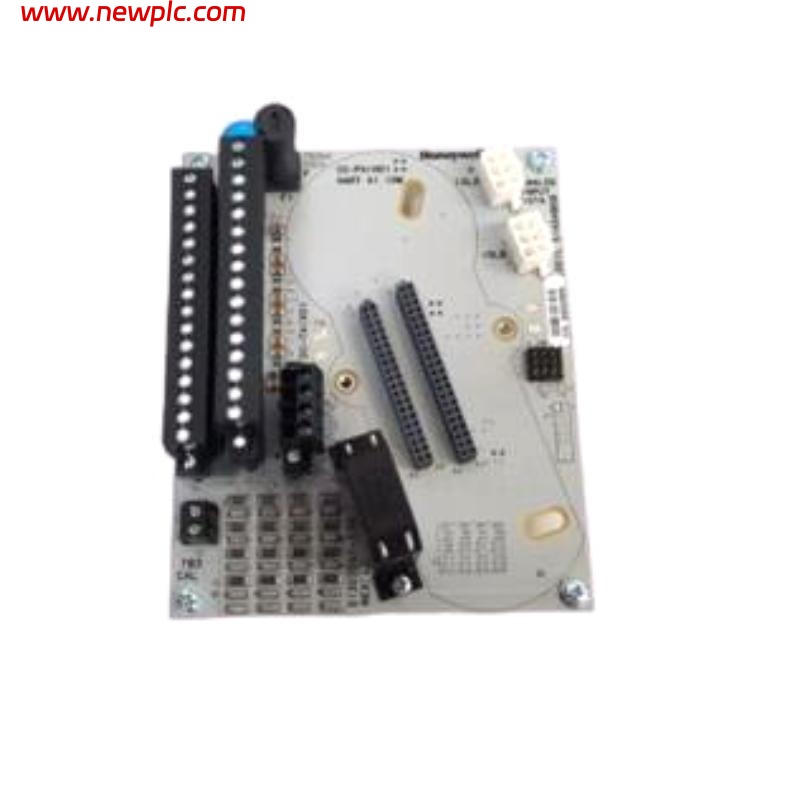

| Model | DC-TDOD51 51307611-176 |
| Type | Digital Output Module |
| Output Channels | 16 |
| Output Type | Relay |
| Output Voltage | 24 V DC |
| Maximum Load Current | 2 A per channel |
| Response Time | < 10 ms |
| Isolation | 500 V Galvanic isolation |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Communication Interface | Fieldbus compatible |
| Dimensions (mm) | 115 x 85 x 40 mm |
| Weight (kg) | 0.25 kg |
| Mounting | DIN rail or panel mount |
| LED Indicators | Power, Status, Channel Activity |
FAQ
FAQ
-
Q1: What type of digital outputs does the DC-TDOD51 support?
A1: The module supports relay-type digital outputs. -
Q2: How many channels are available on this module?
A2: There are 16 independent output channels. -
Q3: What is the maximum load current per channel?
A3: The maximum load current per channel is 2 A. -
Q4: What kind of isolation does the module provide?
A4: It provides 500 V galvanic isolation between outputs and control logic. -
Q5: What is the operating temperature range?
A5: The module operates safely between -20°C and 60°C. -
Q6: Can it be mounted on a DIN rail?
A6: Yes, it supports both DIN rail and panel mounting. -
Q7: What is the response time for output switching?
A7: The typical response time is less than 10 ms. -
Q8: Are there status indicators on the module?
A8: Yes, LEDs indicate power, status, and individual channel activity.
