Technical Specifications
| Item | Specification |
|---|---|

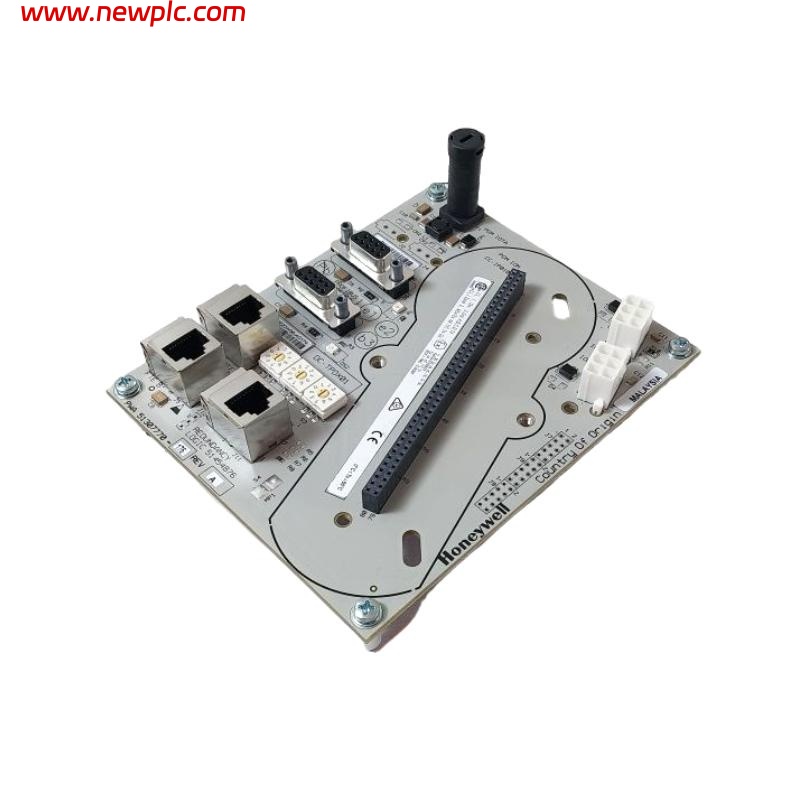

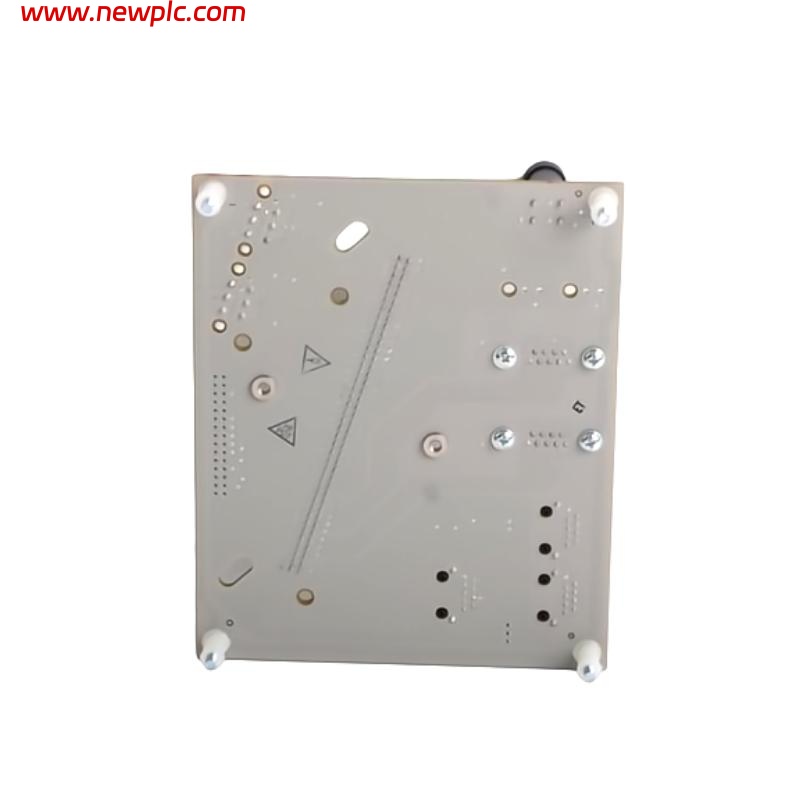

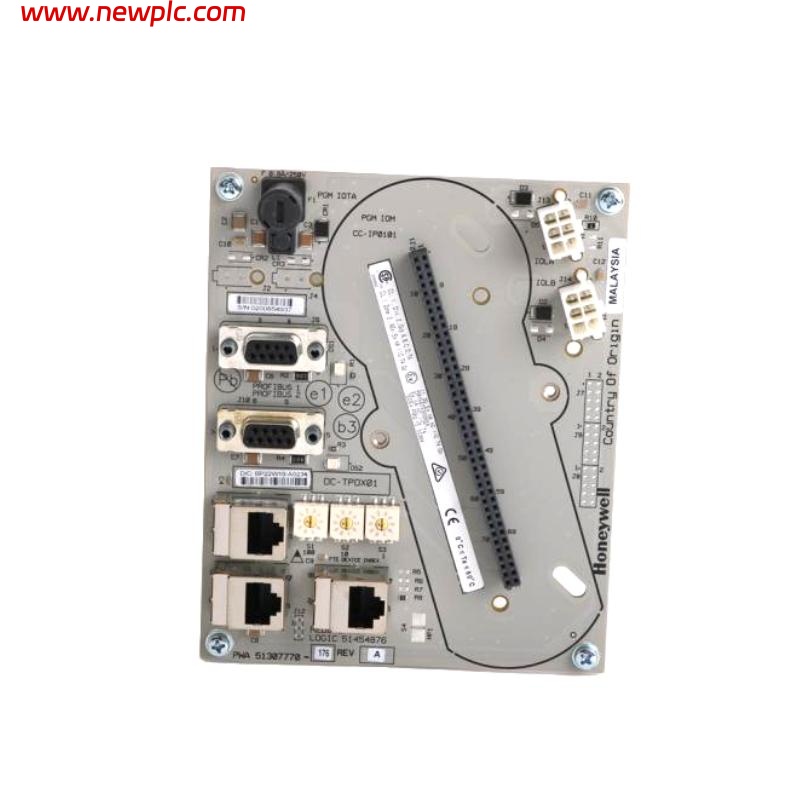

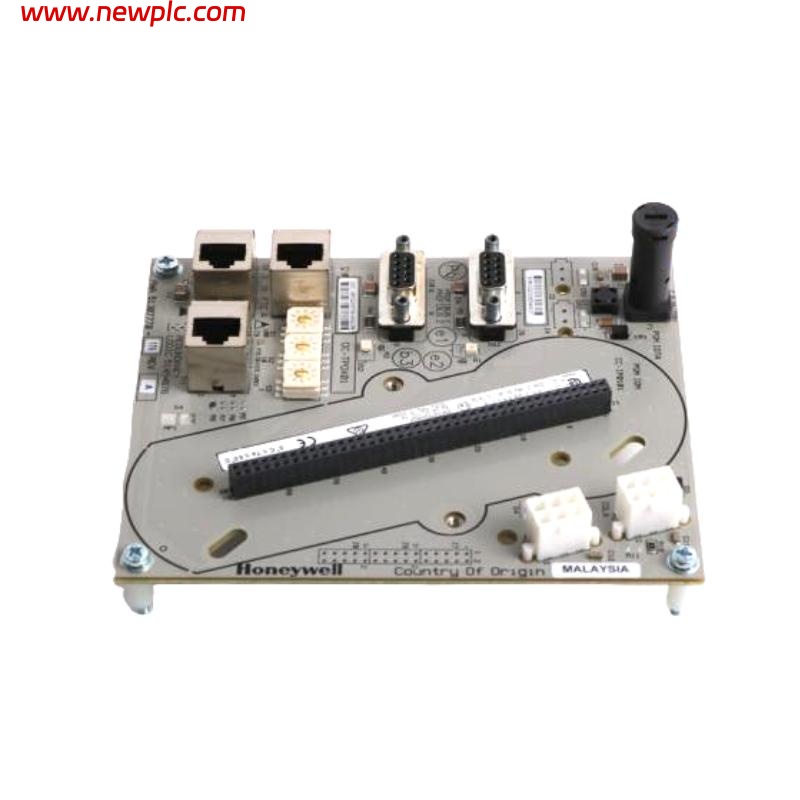

| Product Model | Honeywell DC-TPOX01 51307770-176 |
| Product Type | Pulse Backplane Module |
| Functionality | Provides high-speed pulse signal transmission and channel distribution for HC900 system |
| Supported Modules | HC900 CPU and I/O modules |
| Pulse Type | Dry contact or transistor pulse signals |
| Number of Channels | 8 pulse input channels |
| Response Time | ≤ 2 ms |
| LED Indicators | Per-channel status indication |
| Power Supply | 24 V DC |
| Operating Temp. | 0 ℃ to 60 ℃ |
| Storage Temp. | -20 ℃ to +70 ℃ |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | 22 x 124 x 126 mm |
| Weight | 0.5 kg |
| Mounting Method | DIN rail mounting |
| Environmental Compliance | RoHS, CE |
| Service Life | Over 10 years under normal conditions |
FAQ
FAQ
Q1: What is the main purpose of the DC-TPOX01 module?
A1: It is used to collect high-speed pulse signals in the HC900 system and transmit them to the control system for processing.
Q2: How many pulse input channels does the module support?
A2: Provides 8 pulse input channels.
Q3: What types of pulse signals can this module handle?
A3: Handles dry contact pulses and transistor output pulses.
Q4: What is the response time of the module?
A4: Module response time is ≤ 2 ms.
Q5: What are the dimensions and weight?
A5: Dimensions are 22 x 124 x 126 mm, weight approx. 0.5 kg.
Q6: What is the operating temperature range?
A6: 0 ℃ to 60 ℃.
Q7: What is the mounting method?
A7: DIN rail mounting, suitable for modular layouts.
Q8: What indicators are available on the module?
A8: Each input channel has an LED status indicator for pulse signal monitoring.
