Technical Specifications
| Parameter | Description |
|---|---|
| Model | FC-CPCHAS-0002 |

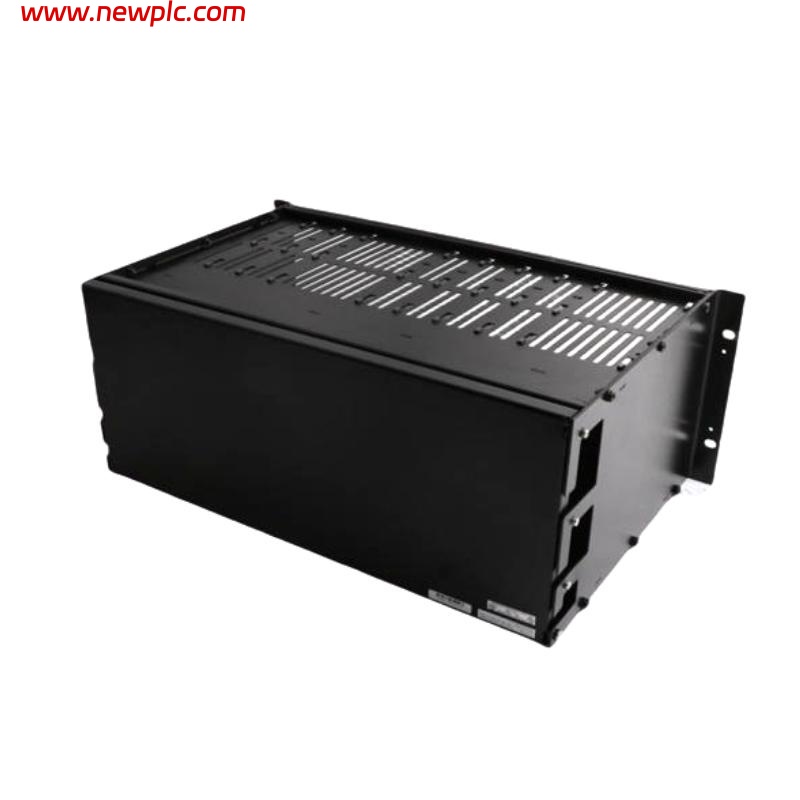

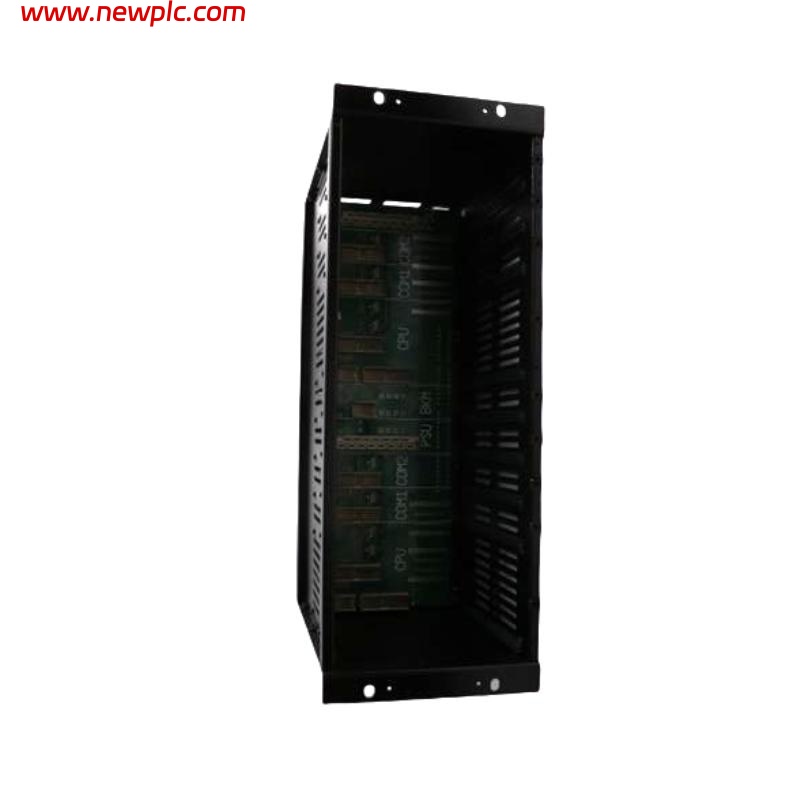

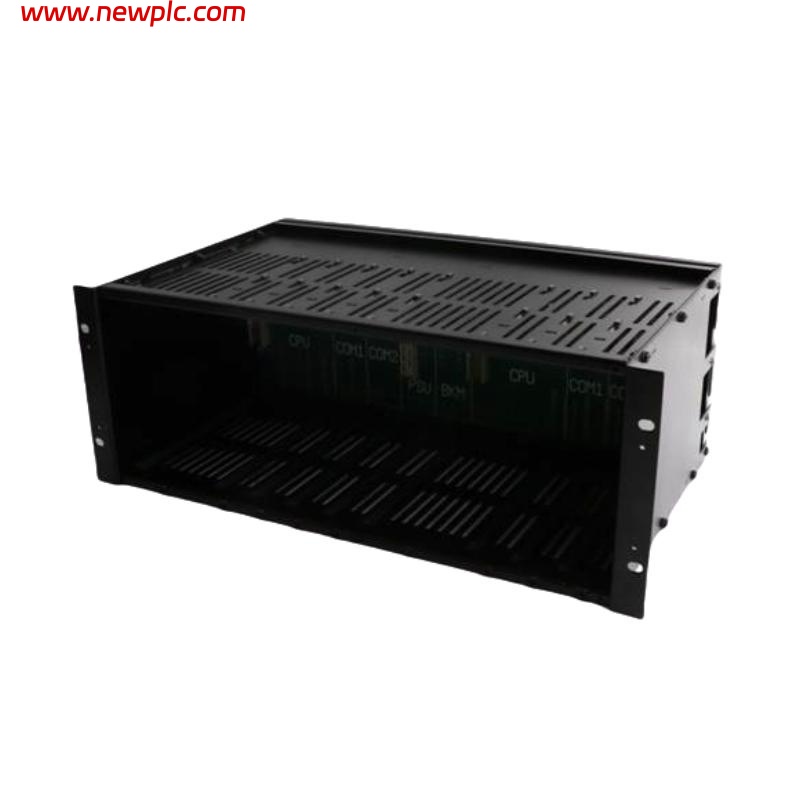

| Type | Safety System Chassis for Control Processor |
| Supported Modules | Honeywell Control Processor (CP) |
| Slots | 2 Control Processor module slots |
| Backplane | High-speed backplane for signal and power distribution |
| Power Supply | Compatible with Honeywell redundant power modules |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | 132 × 100 × 160 mm |
| Weight | 0.8 kg |
| Mounting | 19-inch rack mounting |
| Safety Certification | SIL3 (IEC 61508) |
FAQ
FAQ
-
Q1: What is the function of the FC-CPCHAS-0002 chassis in safety systems?
A1: It provides mechanical support, electrical backplane connectivity, and power distribution for control processor modules in safety systems. -
Q2: How many control processor modules can be installed in this chassis?
A2: It supports up to two control processor modules. -
Q3: Does the chassis support module hot-swapping?
A3: Yes, installed control processor modules can be replaced without shutting down the system. -
Q4: What safety standard compliance does the chassis meet?
A4: The chassis complies with SIL3 requirements under IEC 61508. -
Q5: Can the chassis operate in redundant processor configurations?
A5: Yes, it supports dual control processor configurations for redundancy. -
Q6: What are the environmental limits for operation?
A6: Operating temperature is 0°C to 60°C, and relative humidity is 5%–95% non-condensing. -
Q7: What mounting options are available for this chassis?
A7: It is designed for standard 19-inch rack installation. -
Q8: What industries typically deploy this chassis?
A8: It is widely used in oil & gas, petrochemical, refining, and power generation safety systems.
