Technical Specifications
| Item | Specification |
|---|---|

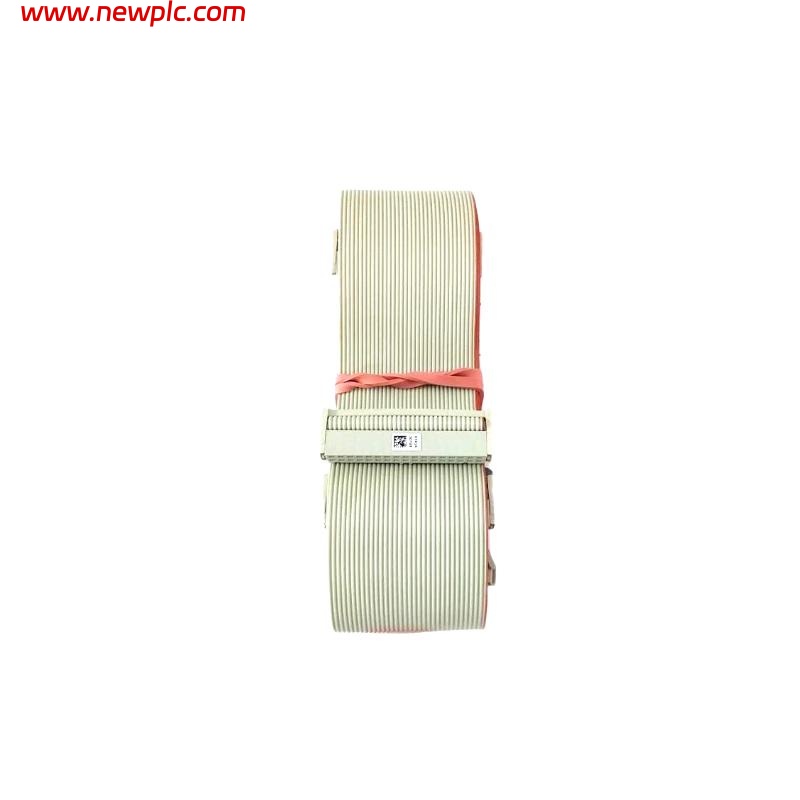

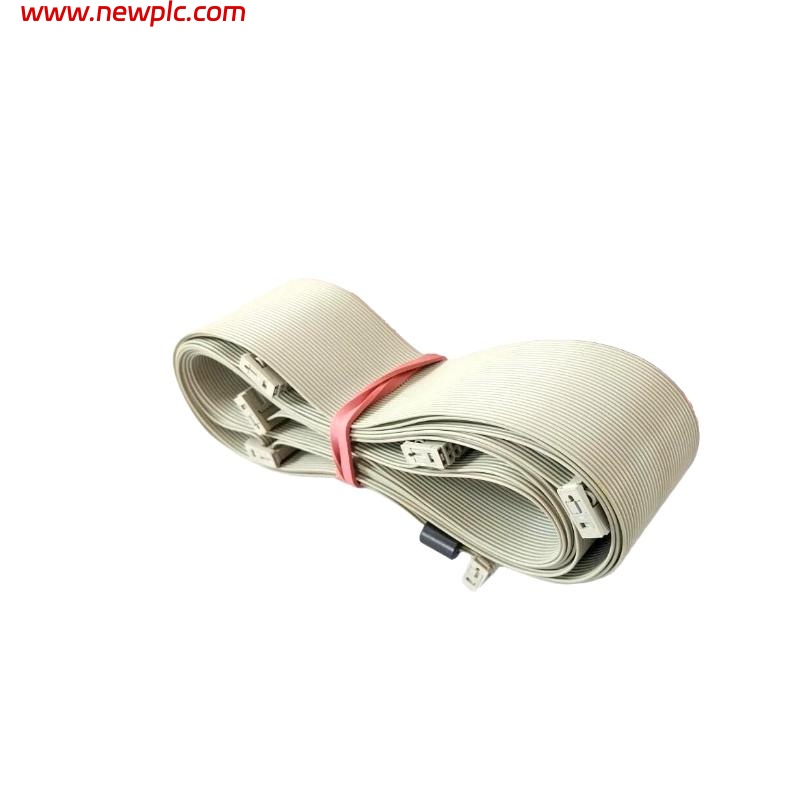

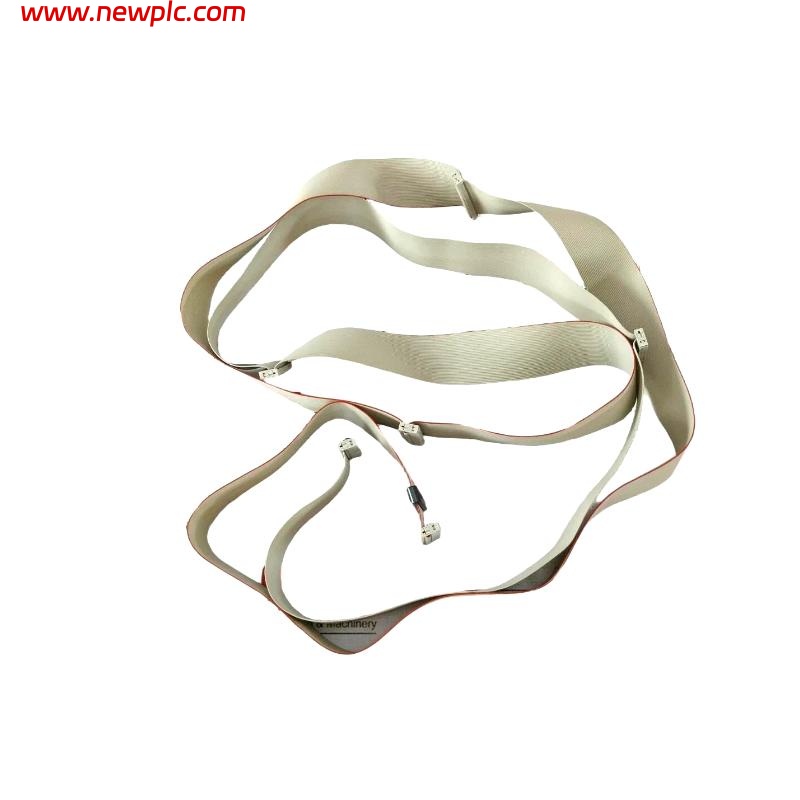

| Model | Honeywell FC-IOBUS-CPIO (also referred as FS-IOBUS-CPIO) |
| Function | Safety System I/O bus connecting Controller Chassis to I/O Chassis |
| Controller Side Connection | CP backplane (CPB-0002), connectors labeled IO bus x.x |
| I/O Side Connection | IO backplane (IOB-0001S/R), connectors labeled IO bus / IO bus1 / IO bus2 |
| Supported Configurations | Redundant and non-redundant I/O arrangements |
| Connector Type | 34-pole latch connector |
| Cable Type | 34-wire flat cable, designed for vertical cabinet routing |
| Dimensions | 32 × 150 × 127 mm |
| Weight | 1 kg |
| Approvals | UL, CSA |
| Terminators | TERM-0001 (non-redundant), TERM-0002 (redundant) |
| Compatible Chassis | CPCHAS-0001/0002/0003 ↔ IOCHAS-0001S/R/0002S/R/0003S/R |
FAQ
FAQ
Q1: What is the role of the FC-IOBUS-CPIO in a Safety Manager system?
A1: It serves as the vertical I/O bus that transfers scan, test, and update signals between the Controller chassis and multiple I/O chassis.
Q2: How does the FC-IOBUS-CPIO support redundant system architectures?
A2: It provides separate IO bus1.x and IO bus2.x connections, ensuring proper pairing for redundant I/O bus configurations.
Q3: What termination requirements exist for this I/O bus?
A3: Each bus must be terminated using TERM-0001 for non-redundant setups or TERM-0002 for redundant configurations.
Q4: What type of connector is used on both ends of the bus?
A4: The bus is equipped with 34-pole latch connectors, ensuring secure and reliable attachment to CP and IO backplanes.
Q5: Can the FC-IOBUS-CPIO be used in both controller and extension cabinets?
A5: Yes, within controller cabinets it connects CPCHAS to IOCHAS, while extension cabinets require related models such as FS-IOBUS-CPX-x and FS-IOBUS-CPIOX for cabinet-to-cabinet connectivity.
Q6: How does the physical design of the cable support cabinet installations?
A6: Its 34-wire flat construction is optimized for vertical cabinet routing, minimizing space usage and maintaining signal integrity.
Q7: What are the mechanical dimensions and weight of the FC-IOBUS-CPIO?
A7: The assembly measures 32 × 150 × 127 mm and weighs approximately 1 kg.
Q8: Which chassis models are compatible with the FC-IOBUS-CPIO?
A8: It is designed for use between CPCHAS-0001/0002/0003 controller chassis and IOCHAS-0001S/R/0002S/R/0003S/R I/O chassis.
