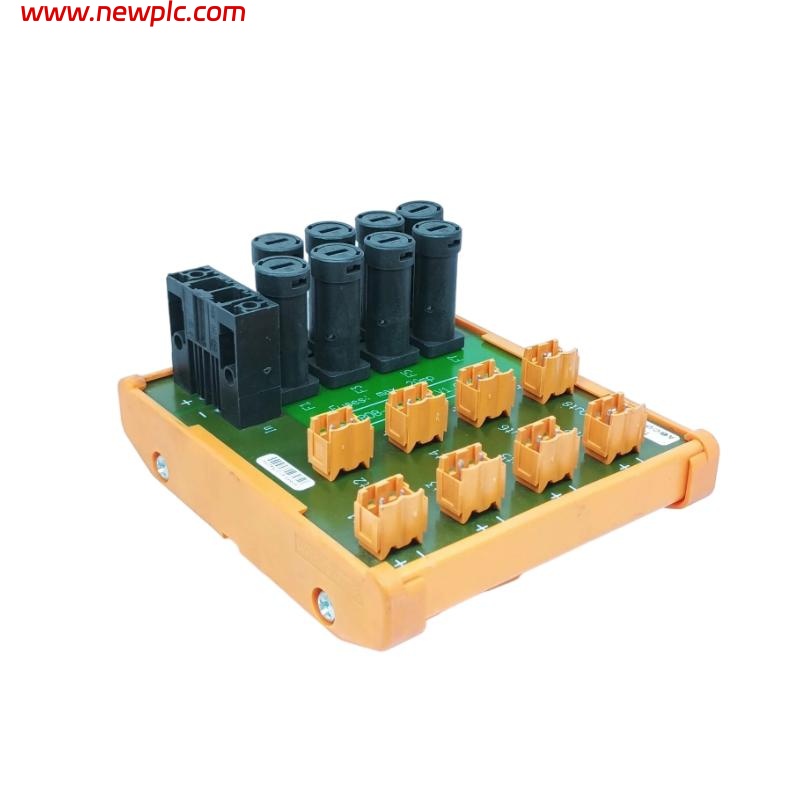

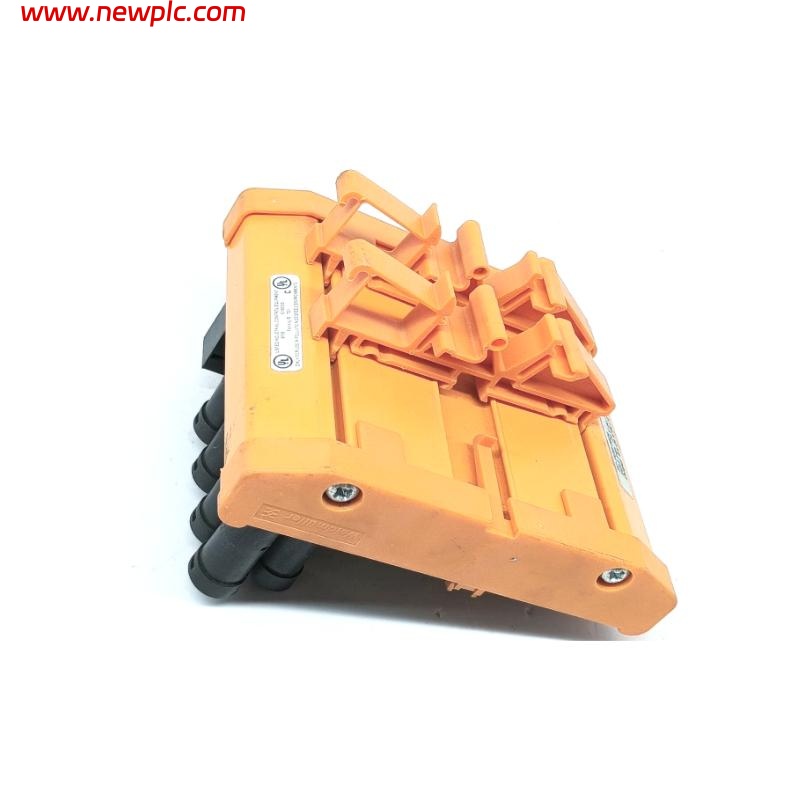

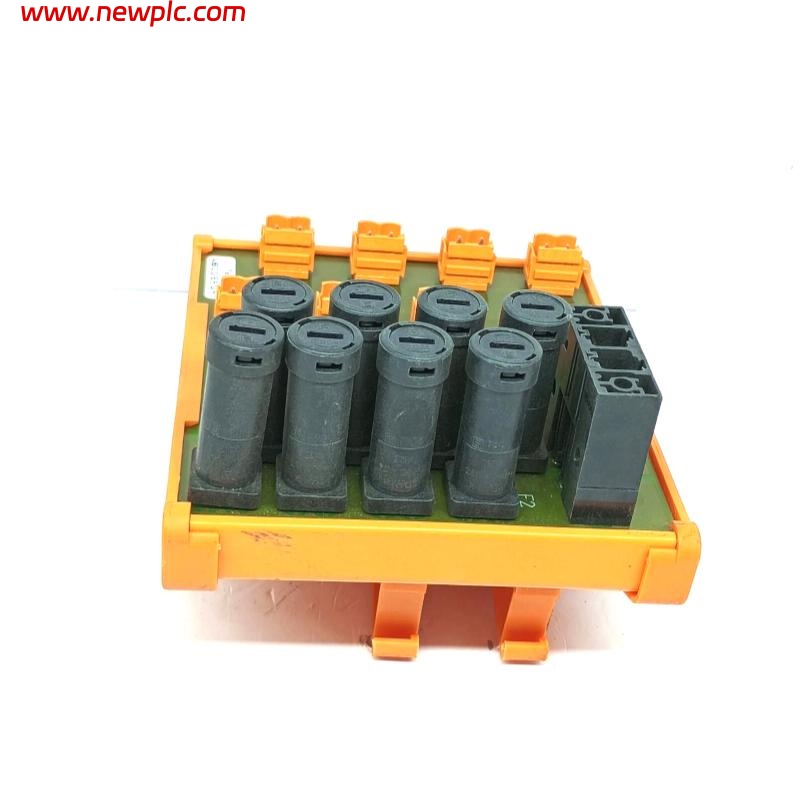

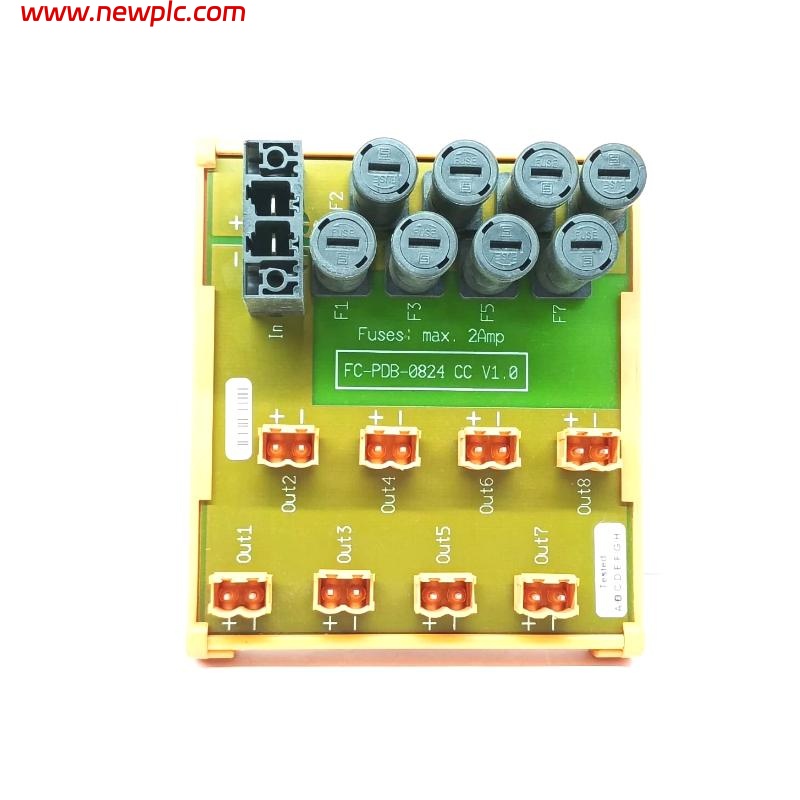

Honeywell FC-PDB-0824 Power Distribution Board

FAQ

• Q1: What is the maximum current capacity per output channel?
  A1: Each output channel is fused with a maximum rating of 2 A to protect connected devices.

• Q2: What type of fuses does the FC-PDB-0824 use?
  A2: It uses slow-acting fuses with a maximum rating of 2 AT and dimensions of 5 x 20 mm.

• Q3: How is the board mounted in a control cabinet?
  A3: The board is designed for DIN rail mounting, compatible with TS32 or TS35 × 7.5 rails.

• Q4: What voltage does the board operate at?
  A4: The board operates at a standard input voltage of 24 VDC.

• Q5: How many output channels are available for device connections?
  A5: There are 8 fused output channels for distributing power to multiple devices.

• Q6: What type of connectors are provided for input and field wiring?
  A6: The input uses a 2-pole header with keying, and field connections use a 2-pole socket block.

• Q7: What are the physical dimensions and weight of the board?
  A7: The board measures 94 x 109 x 71 mm and weighs 0.93 kg.

• Q8: Which safety and compliance certifications does the board hold?
  A8: The FC-PDB-0824 is certified with CE, UL, and TUV approvals, ensuring safety and regulatory compliance.

FC-PDB-0824 Honeywell Power Distribution Board
