Technical Specifications
| Item | Description |
|---|---|

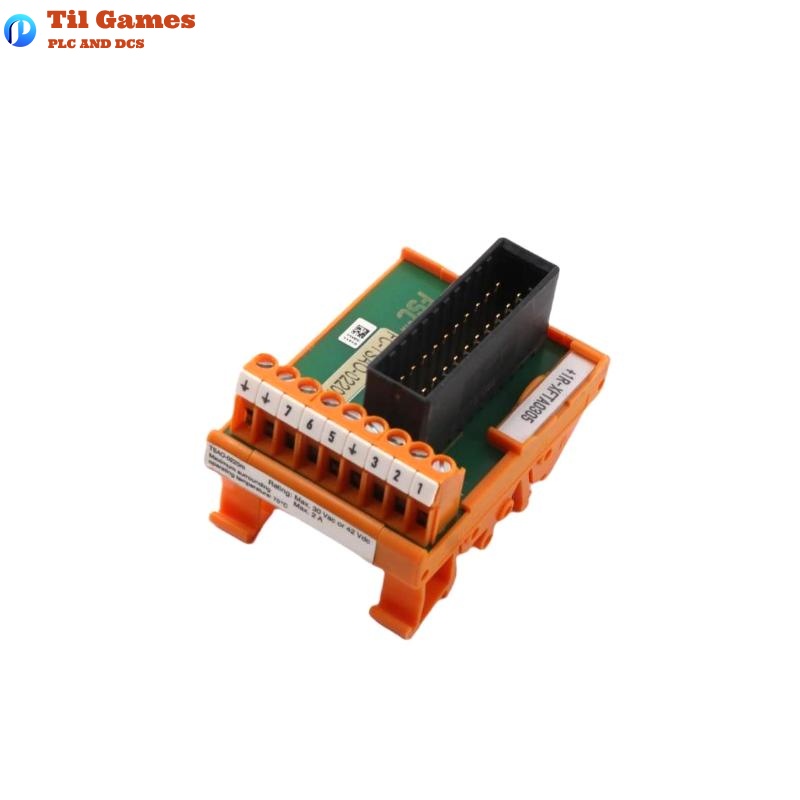

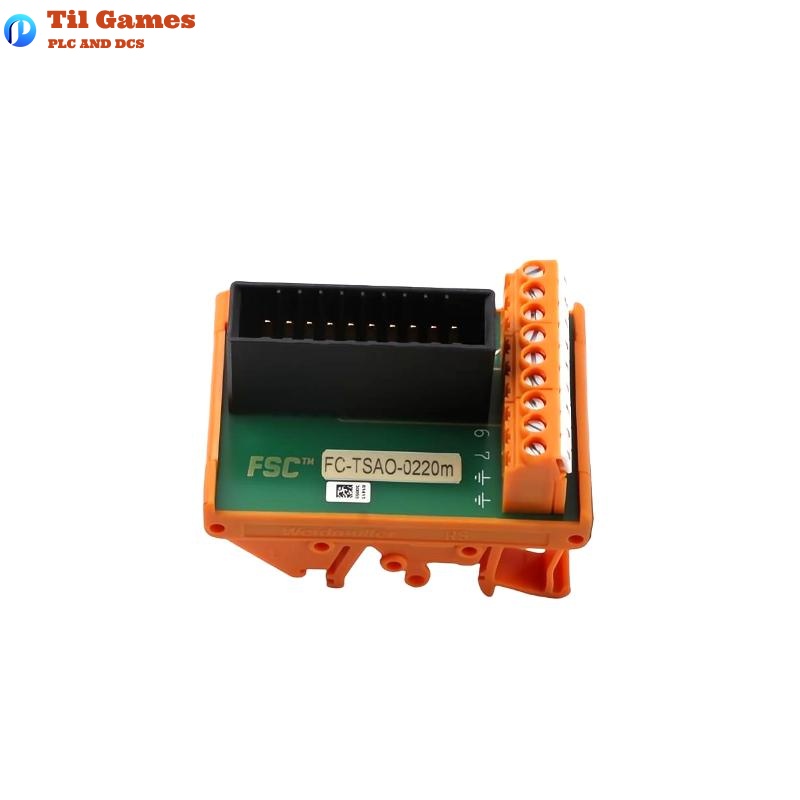

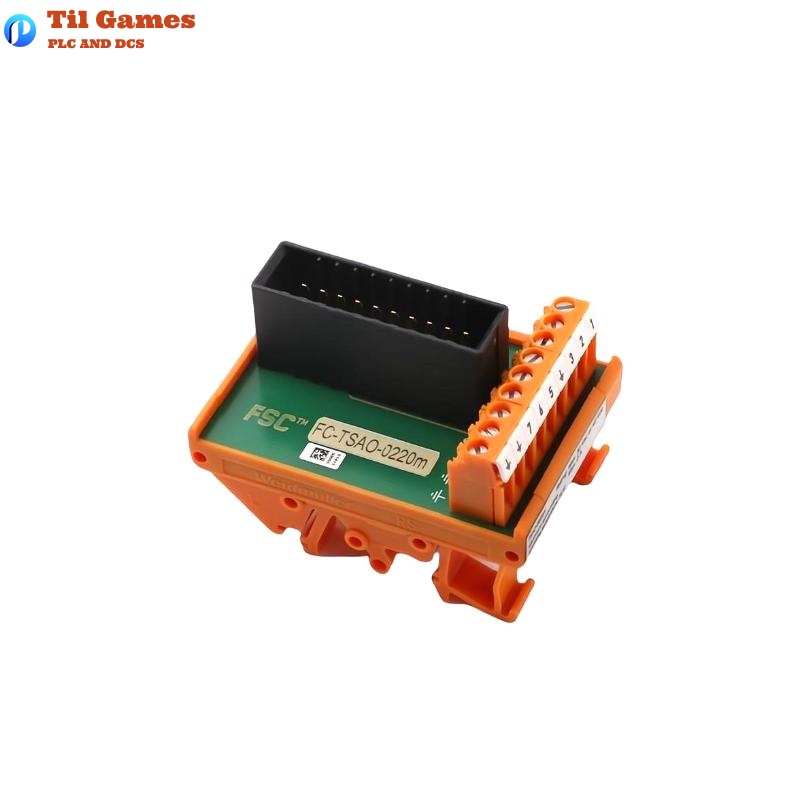

| Model | FC-TSAOH-0220m |
| Number of Channels | 2 (with common 0V) |
| Output Current Range | 0–20 mA |
| Max Voltage | 40 V DC – IEC 1010:1990, Overvoltage Category 3 |
| Max Current/Channel | 25 mA |
| HART Interface | Supported, for MTL4850 and P+F KFD0-HMS-16 / KFD2-HMM-16 |
| Terminal Type | Screw terminals |
| Max Wire Diameter | 2.5 mm² (AWG 14) |
| Strip Length | 7 mm |
| Tightening Torque | 0.5 Nm (0.37 ft-lb) |
| Mounting Type | DIN EN Rails (TS32 / TS35 × 7.5) |
| Used Rail Length | 65 mm |
| Dimensions (L × W × H) | 64 × 109 × 66 mm |
| Weight | 0.5 kg |
| Certifications | CE, TÜV, UL, CSA |
FAQ
Frequently Asked Questions (FAQ)
Q1: What HART multiplexers are supported by FC-TSAOH-0220m?
A1: It supports MTL4850 and Pepperl+Fuchs KFD0-HMS-16 or KFD2-HMM-16.
Q2: Can multiple modules be linked together?
A2: Yes, up to 8 modules can be daisy-chained to support 16 HART channels.
Q3: What type of analog output does the module provide?
A3: The module provides 0–20 mA analog output suitable for analog field devices.
Q4: Does the module offer galvanic isolation for HART signals?
A4: No, HART multiplexer connections are not galvanically isolated. External isolation is required.
Q5: What type of wiring terminal does it use?
A5: It uses screw terminals for up to 2.5 mm² wires with 7 mm stripping length.
Q6: Is FC-TSAOH-0220m suitable for redundant output modules?
A6: Yes, it can be connected to redundant SAO-0220m module pairs.
Q7: Which safety and quality standards does it comply with?
A7: It complies with CE, TÜV, UL, and CSA standards.
Q8: How is the module mounted?
A8: It mounts on standard DIN EN rails (TS32 or TS35 × 7.5), requiring 65 mm rail length.
