Technical Specifications
| Parameter | Description |
|---|---|
| Model | FC-TSDL-16UNI |

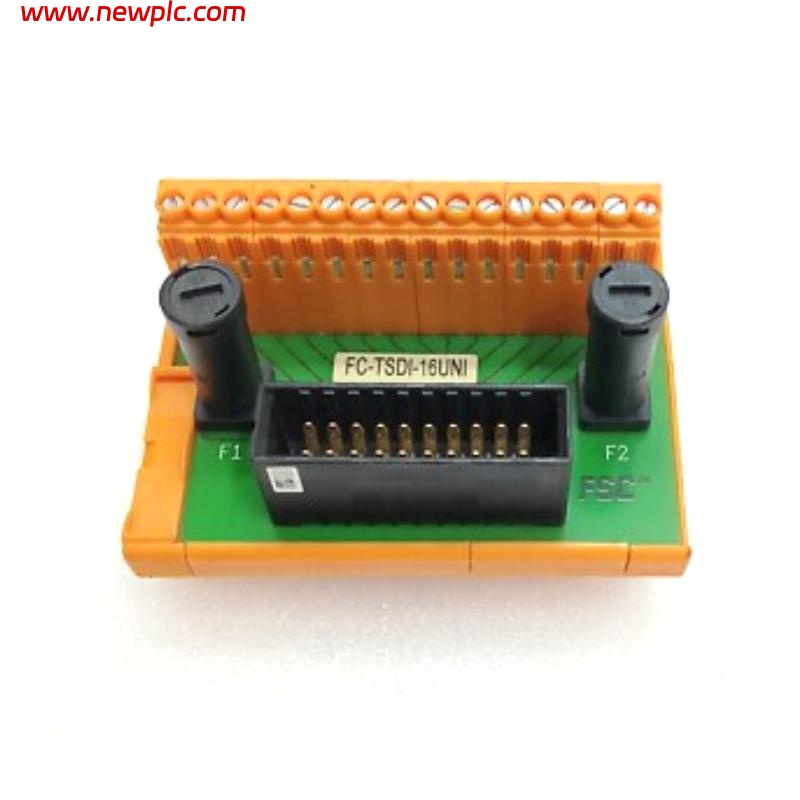

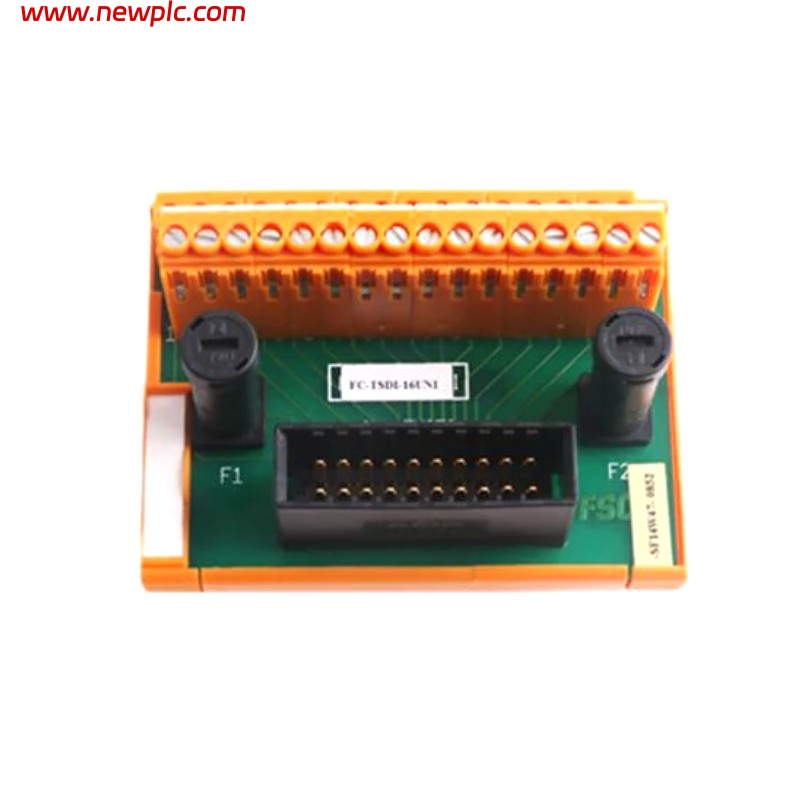

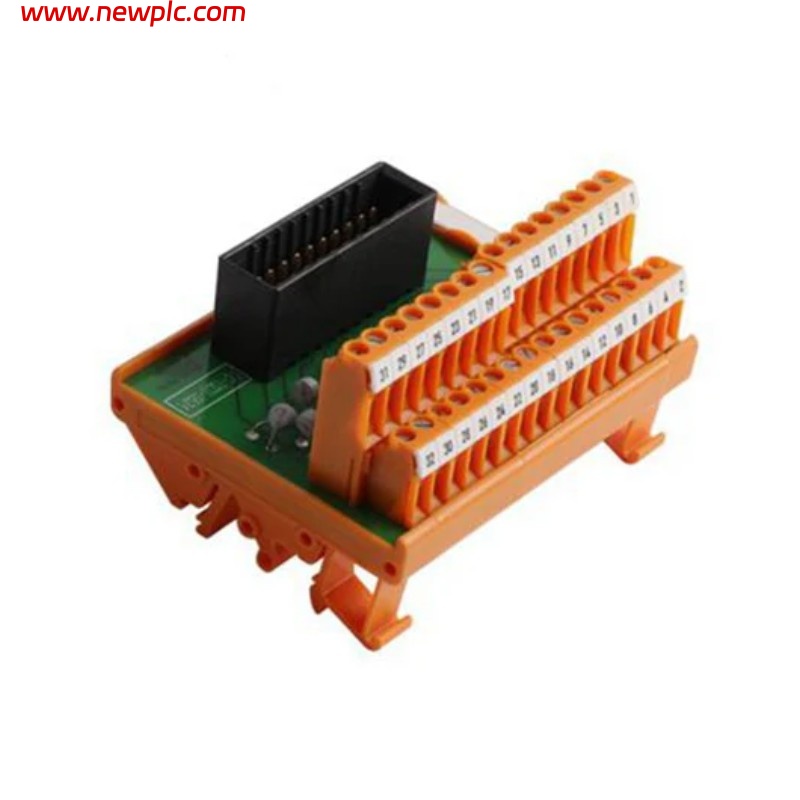

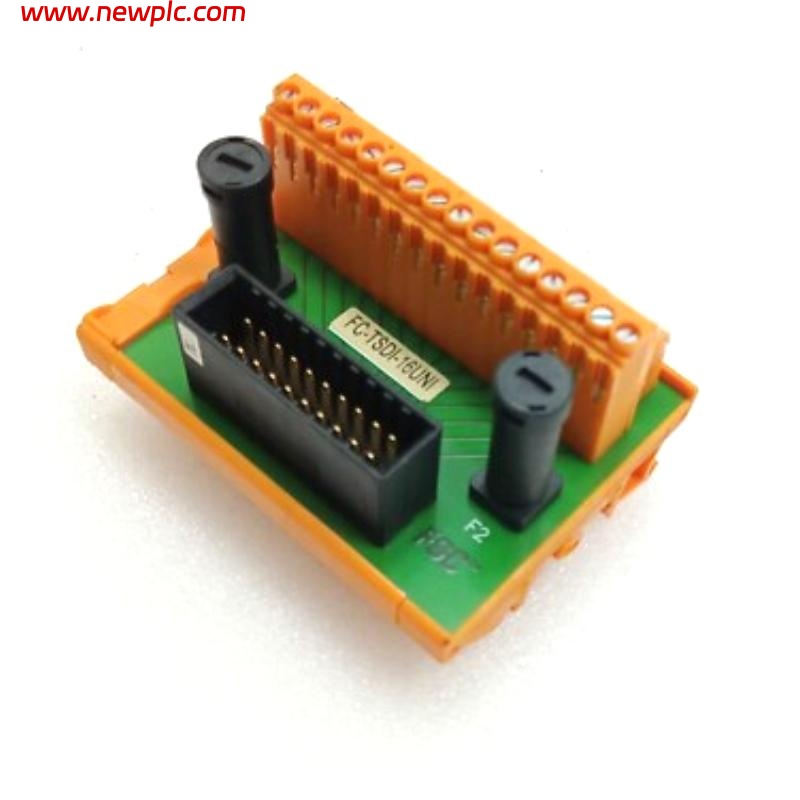

| Type | Digital Input Field Termination Assembly |
| Number of Channels | 16 |
| Input Type | Digital Input |
| Rated Voltage | 24 V DC |
| Current Consumption | ≤50 mA |
| Response Time | ≤10 ms |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -40°C ~ 85°C |
| Protection Rating | IP20 |
| Dimensions | 22.5 x 100 x 115mm |
| Weight | 0.2 kg |
| Mounting Method | DIN Rail / Panel Mount |
| Material | Engineering Plastic + Metal Terminals |
FAQ
FAQ
-
Q1: Can this module connect directly to a PLC?
A1: Yes, FC-TSDL-16UNI is designed as a standard digital input module and can connect directly to a PLC via terminal blocks. -
Q2: What types of sensors does the module support?
A2: It supports discrete signal sensors, such as dry contact switches and photoelectric switches. -
Q3: Will high-temperature environments affect the module?
A3: The module’s operating temperature is -20°C to 60°C. Exceeding this range may affect performance. -
Q4: Can multiple modules be connected in parallel?
A4: Yes, multiple modules can be connected via bus or terminal blocks, ensuring total current does not exceed rated value. -
Q5: What is the response time of the module?
A5: The response time is ≤10 milliseconds, suitable for industrial automation applications. -
Q6: Are special tools required for installation?
A6: No special tools are needed; standard screwdrivers are sufficient for DIN rail or panel mounting. -
Q7: Can this module replace older models?
A7: Yes, it is compatible with most Honeywell standard digital input terminal modules, but electrical parameters should be checked. -
Q8: Is maintenance complicated?
A8: Maintenance is simple, requiring only regular inspection of connections and cleaning, no disassembly needed.
