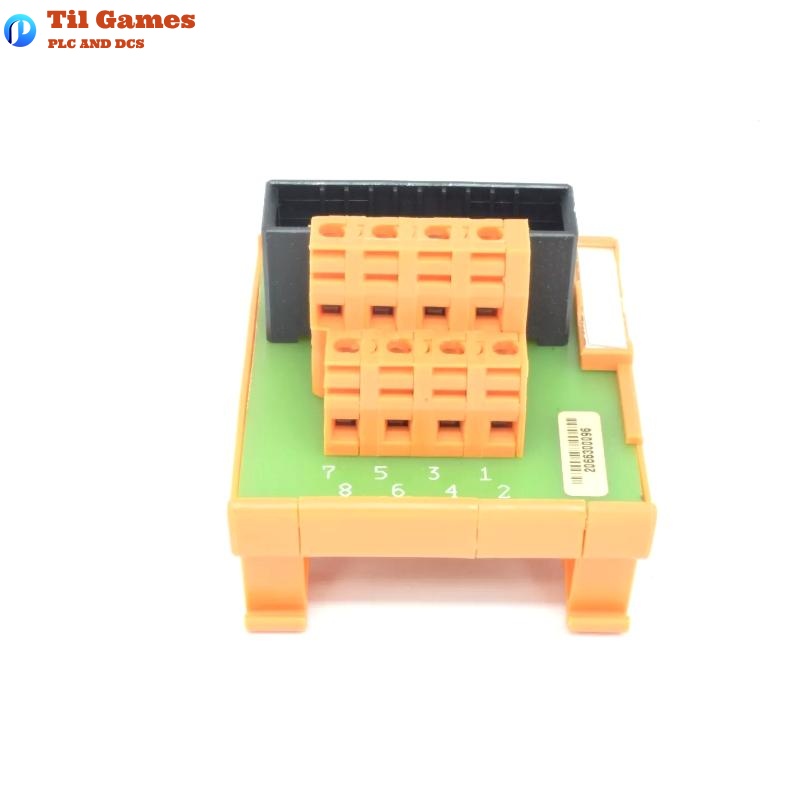

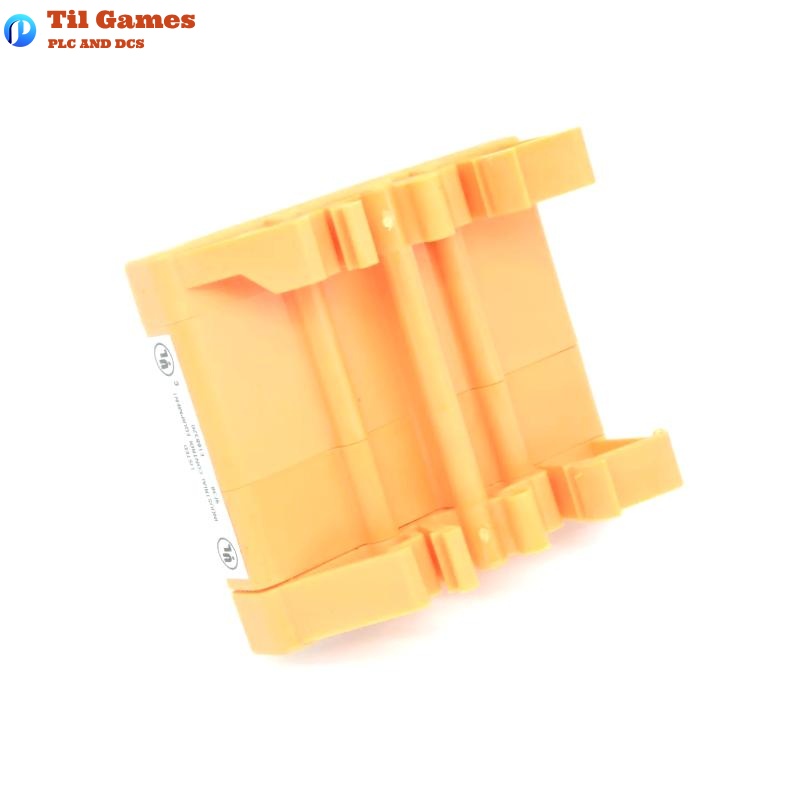

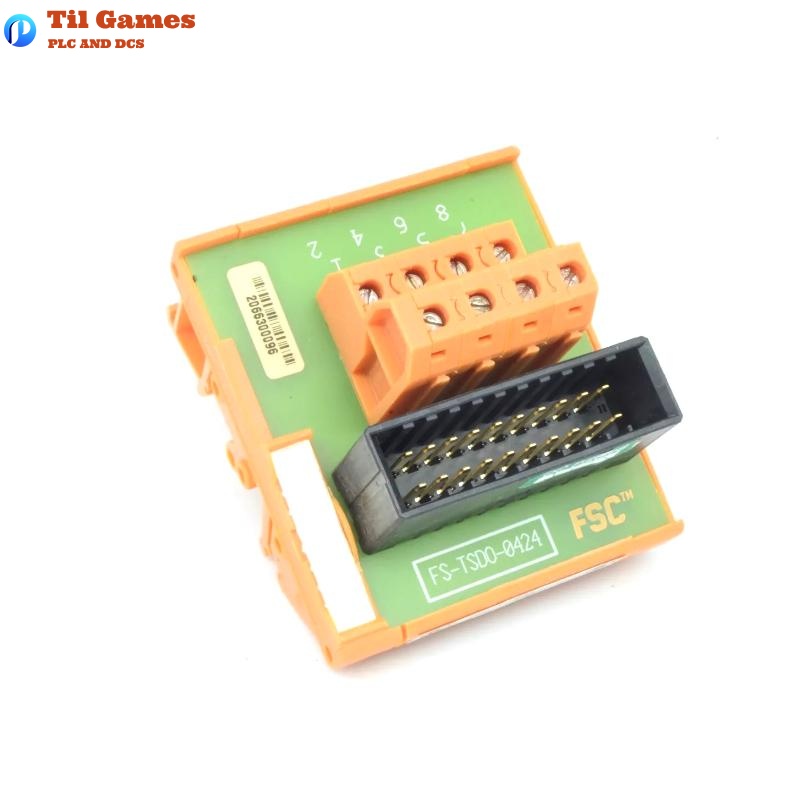

Honeywell FC-TSDO-0424 Safe Digital Output FTA

Frequently Asked Questions (FAQ)

Q1: What is the voltage rating of the FC-TSDO-0424 module?
A1: The maximum voltage is 36 V DC, compliant with IEC 1010 (1990), overvoltage category 3.

Q2: What is the maximum current per channel?
A2: 4 A continuous per channel, depending on the connected output module.

Q3: How is the module mounted?
A3: It is DIN-rail mountable on standard TS32 or TS35 × 7.5 rails.

Q4: How many digital output channels does the module provide?
A4: The FC-TSDO-0424 module provides 4 digital output channels at 24 V DC.

Q5: Does it support redundant configurations?
A5: Yes, it supports redundant connection with a pair of SDO-0424 modules via system cable.

Q6: What are the terminal wiring specifications?
A6: It supports up to 2.5 mm² wire diameter with a strip length of 7 mm.

Q7: What certifications does the module comply with?
A7: The module is certified by CE, UL, TUV, and CSA.

Q8: What are the dimensions and weight of the module?
A8: It measures 60 × 70 × 54 mm and weighs 0.36 kg.

FC-TSDO-0424 Honeywell Safe Digital Output FTA
